Motic cam BTU8, 5.0MP, 8" Display

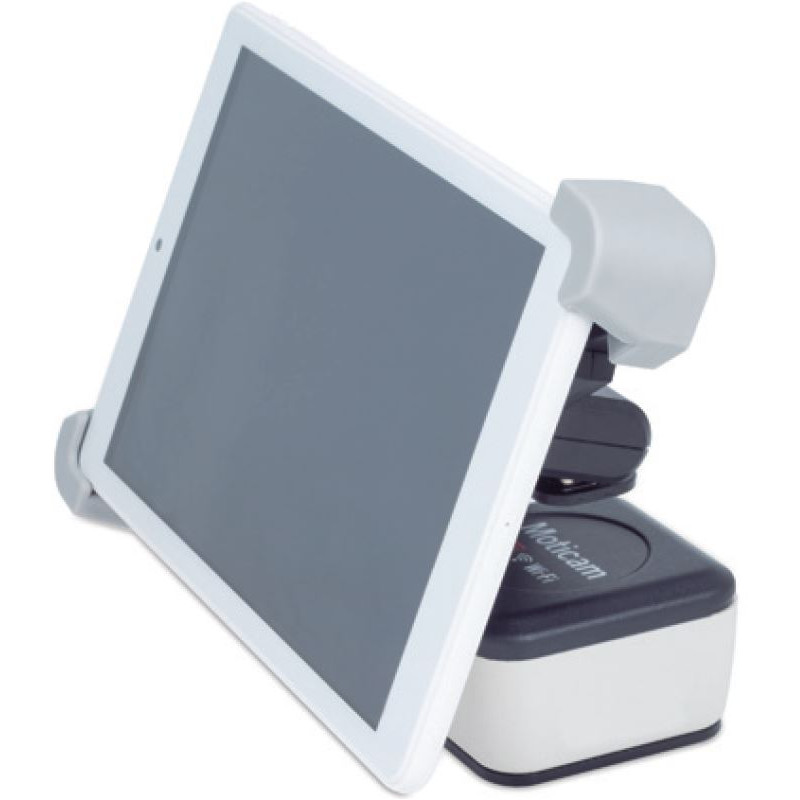

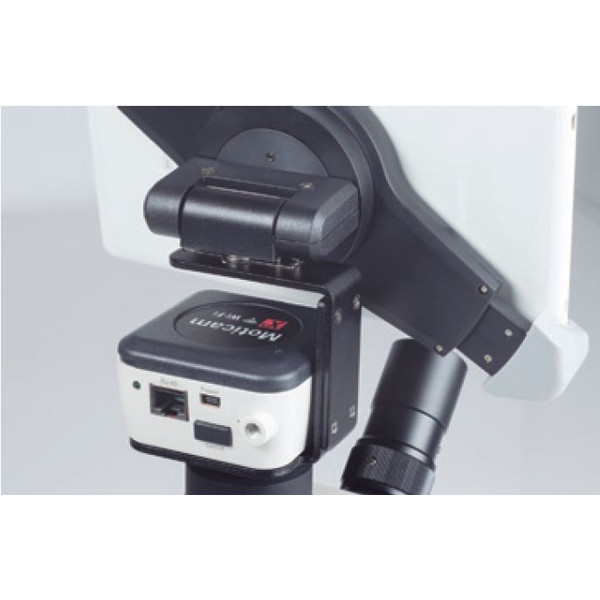

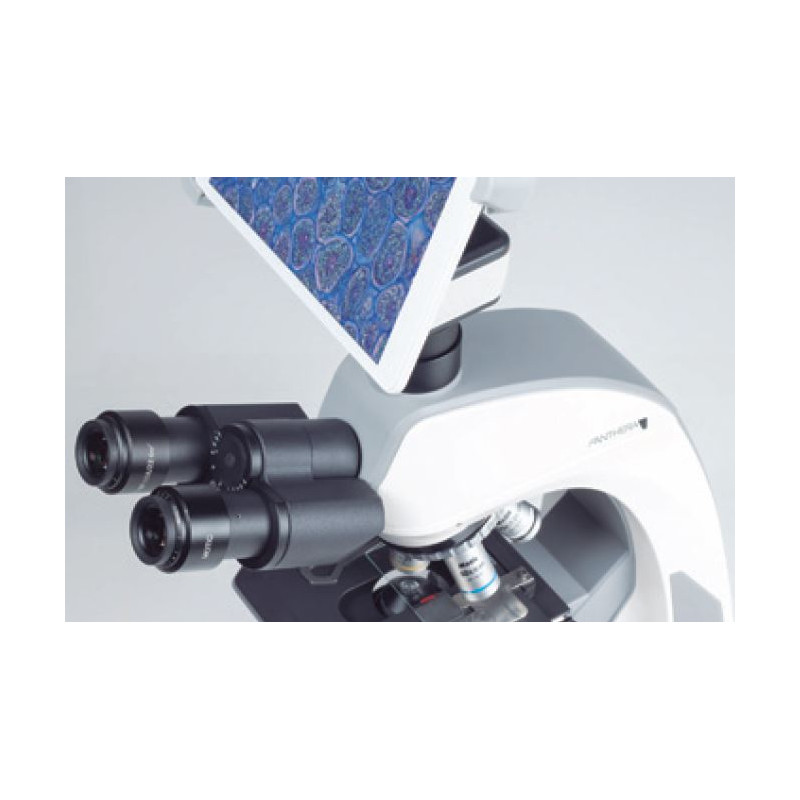

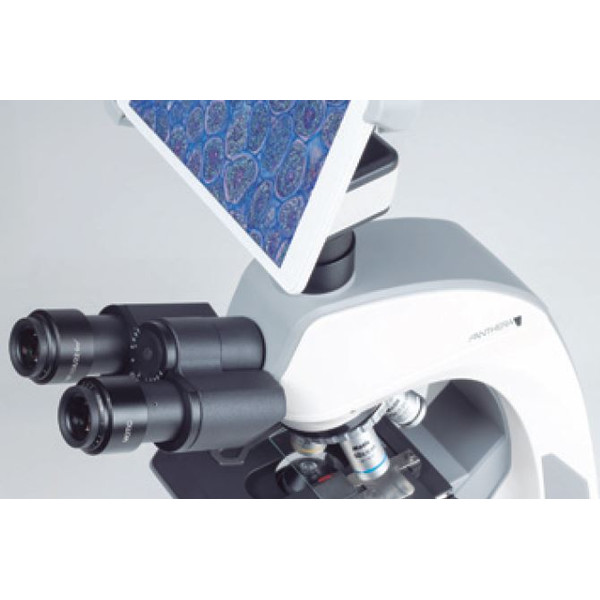

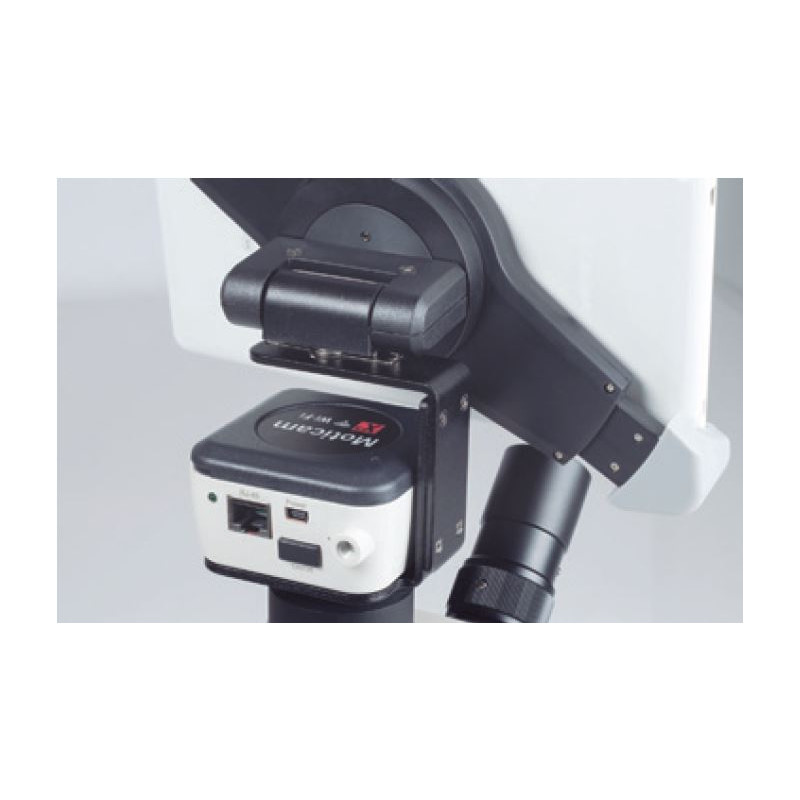

The Moticam BTX8 combines a space-saving camera hardware with new Wi-Fi technology. The 4MP Wi-Fi camera comes together with an 8” Android tablet to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube. This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer. Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.
Camera
- Sensor type CMOS
- Sensor size 1/3"
- Imaging area 5.44mm x 3.07mm
- Capture resolution 4.0 MP
- Live display mode (through RJ-45) 1920X1080/1280 x 720 (display resolution)
- Live display mode (through Wi-Fi) 1920X1080/1280 x 720 (display resolution)
- Pixel size 2.0µm x 2.0µm
- Scan mode Progressive
- Data transfer Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)
- Max. Frames per second (fps*) 1920 x 1080 @ 30 fps (depending on Wi-Fi strength) 1280 x 960 @ 30 fps (depending on Wi-Fi strength)
- Exposure time 30 µsec to 30 msec
- Operating temperature From 0 to +60 Degrees Celsius non condensing
- Max. signal to noise ratio 38.3dB
- Dynamic range 64.6dB
- Sensitivity 1,9V/Lux-sec (550nm)
- Buttons On / Off
- Support device Universal Web browser (HTML5)
- Supported OS Microsoft Windows XP/Vista/7/8/MAC OSX/Android 4,0 or higher/ iOS7 or higher
- Minimum computer requirements 2GHz dualcore | RAM memory 2GB | Video memory min. 512 MB
- Lens mount C-Mount
- Screen 8" IPS Tablet
- Software MotiConnect App (pre-installed)
- Standard Tools: Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
- Power supply 5V (External Power supply)
- Tablet bracket holder For tablets from 7” to 10”
- Package includes MicroSD 16Gb included, HDMI Cable, USB
Tablet
- Size 209 x 126 x 9.9 mm
- System Android 5.1
- Pre-installed App MotiConnect
- Language Multi-Language
- CPU 1.3GHz Quad core
- RAM 1GB DDR3
- NAND FLASH 8GB
- Display 8" (IPS) 16:10 Ratio
- Display Resolutions 1280 x 800
- TOUCH PANEL Capacitive Multi-Touch Screen
- GPU MALI-T720 MP2
- Ports MicroSD/MMC/TF Card (Support up 64 GB) 3.5mm Audio, Micro USB (USB OTG and Charging), Micro HDMI output
- Speaker Dual Speaker
- MIC MIC (Internal)
- Wi-Fi 802.11b/g/n
- Bluetooth 4.0
- Camera Front (VGA) + Rear (2M Pixels)
- Support Display Format MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV,MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
- Support Audio Format MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
- Picture Format JPG, JPEG, GIF, BMP, PNG
- Battery 3.7V/3500mA Rechargeable Battery
- Power Supply "Input AC100-240V. 50-60HZ
- Output: DC5V 2A (Support USB port charging"
- Color White
Image Analysis Software Motic Images Plus 3.0
Motic Images Plus for PC is a software suite for live microscopy imaging that aims to be at the same time professional in its features and simple in its operation. It is the result of more than a decade of close cooperation with end-users and professionals around the world.
Our multi-language interface offers several choices for either basic or more advanced image control options, filters and color correction. Measurement tools can be used both on live images as well as on captured ones, and measurement data can be exported at any time for further analysis. Video recording or time lapse capturing are other significant integrated features.
At Motic, we do our best to ensure that our Moticam cameras are compatible with the latest technology available (Windows, MAC, Linux). With our Direct Show and Twain compatibility, the Moticam cameras can also be integrated into third-party application programs.
Motic offers other software packages. Motic Assembly or Motic Multi-focus for Image Stitching and Image Stacking. MoticNet, a multi-user observation and supervision platform that gives you the option to connect up to 100 digital microscopy stations together with the supervision from the teacher's platform. Motic Trace for teaching forensic and first-level evidence processing centers.
