Aandrijfmechanisme, voor sterrenwachtkoepel 3m diameter V3 - waarnemingsvenster

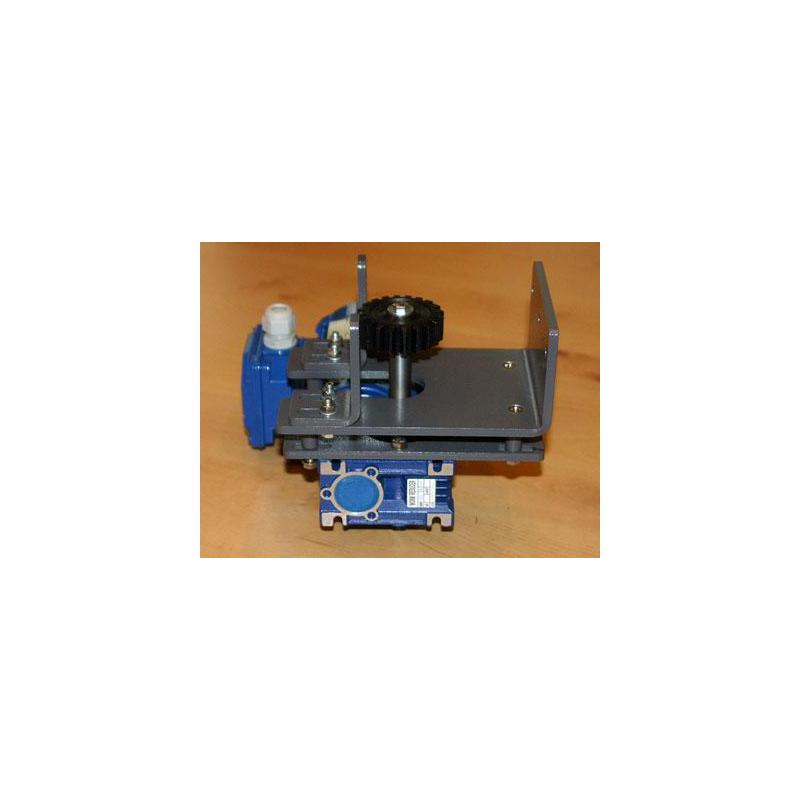

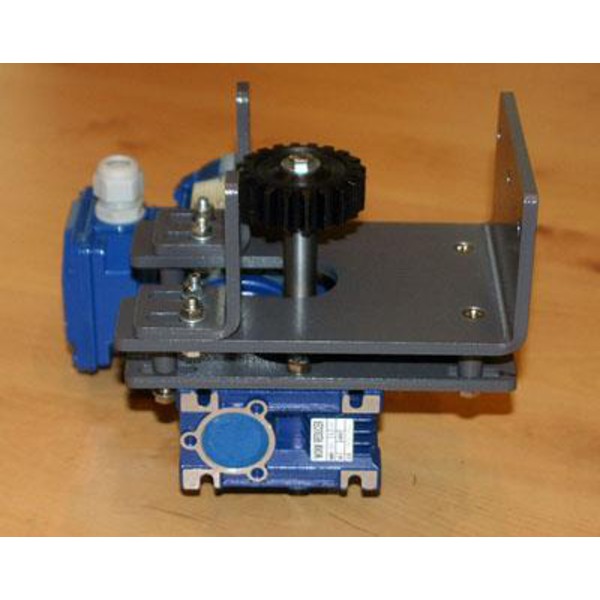

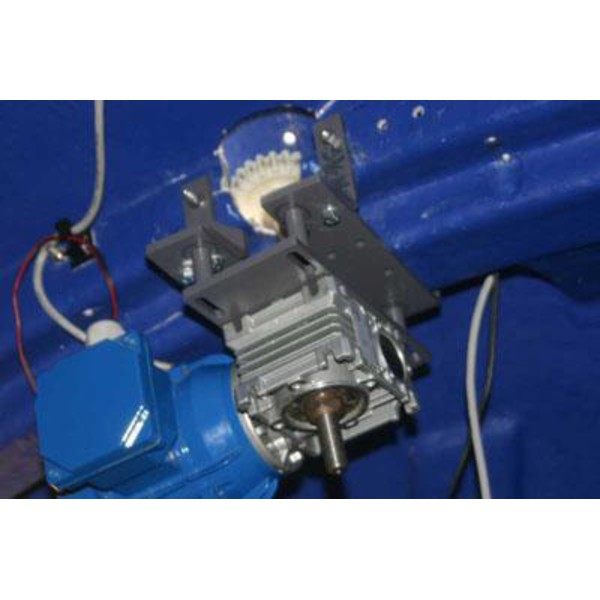

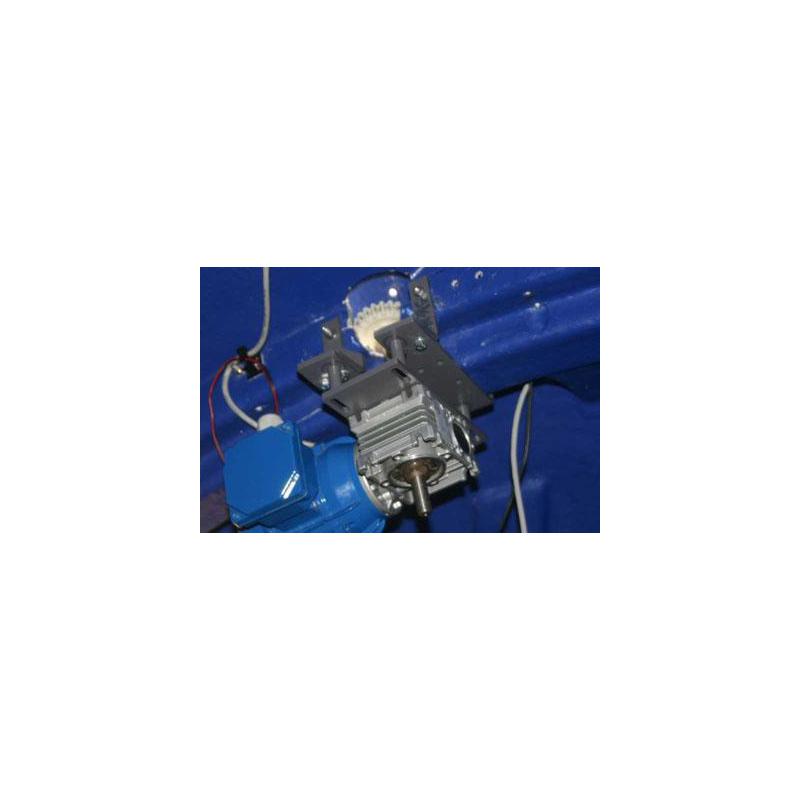

Since mid-2010 we upgraded the shutter driving system. The shutter moves on six large rolls and is driven by three-phase motor with the power of 120W and the proper cogwheel. The mechanism works very smoothly and quietly. Most importantly it is very reliable - during the tests we performed more than 1,500 open-close cycles. After that the drive did not require any adjustment. This corresponds to about 5 years of trouble-free activity.

Basic Data:

• Power: 230VAC
• Motor: 3Phase 120W
• Gears: 1:80
• Shutter opening time: 30s
