Monteringen & toebehoren > Monteringen > Alt-azimuth met GoTo > iOptron > HAE > iOptron Montering HAE29 Strain Wave AZ/EQ
Artikelnummer: 77382

Montering HAE29 Strain Wave AZ/EQ

korte termijn
Klaar voor verzending in 3-5 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

In short:

  • dual AZ and EQ mount, choose between azimuthal or equatorial operation
  • Low tare weight with high load capacity
  • GoTo function with 212,000 objects

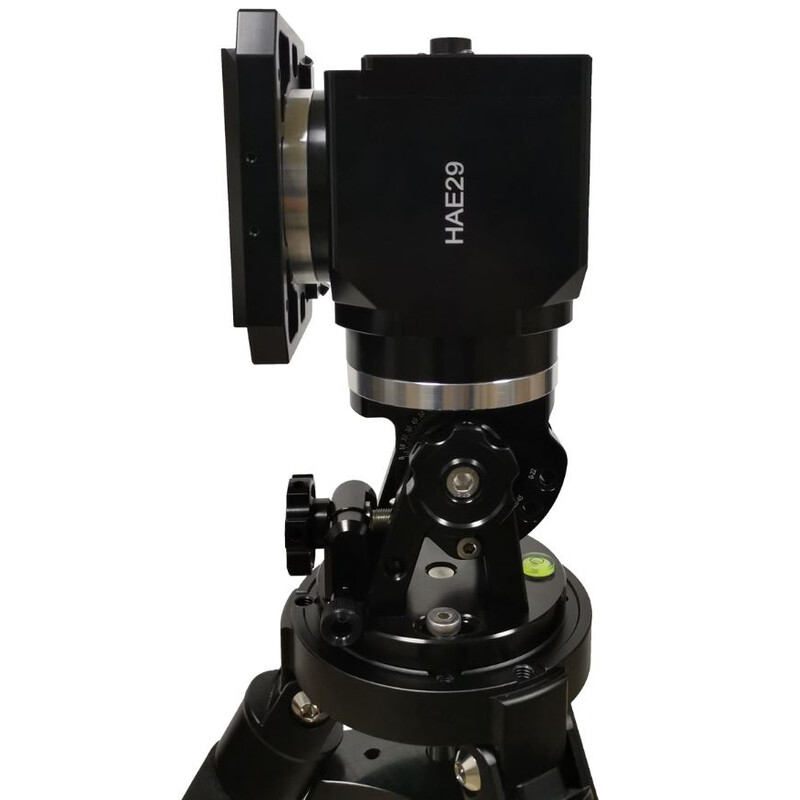

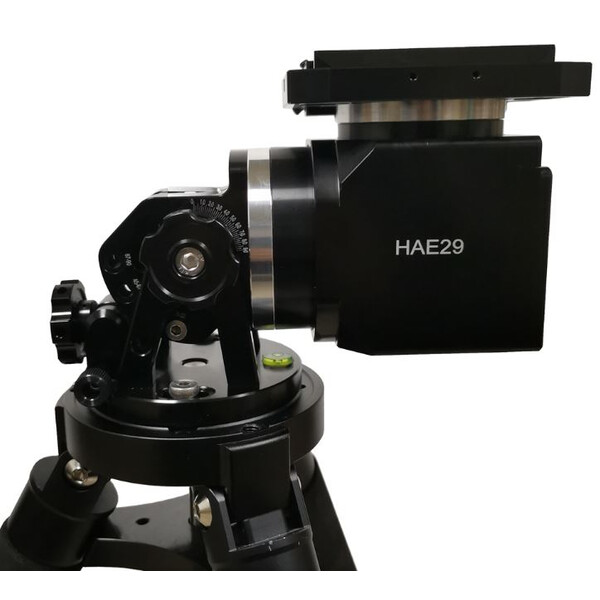

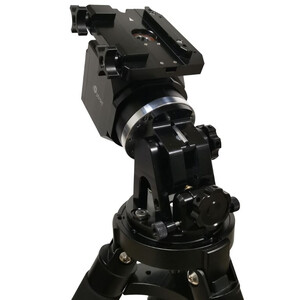

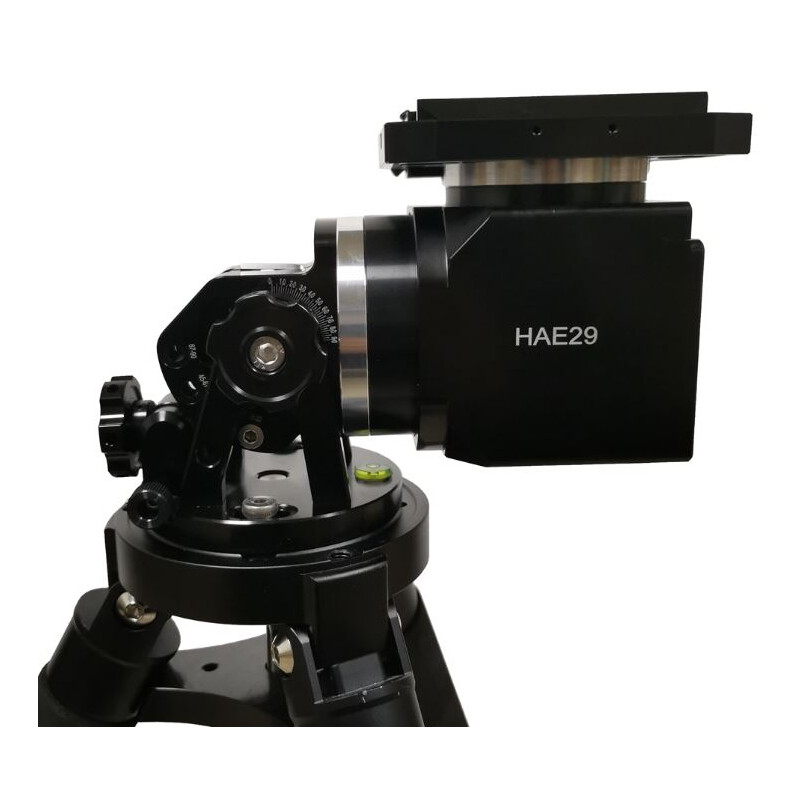

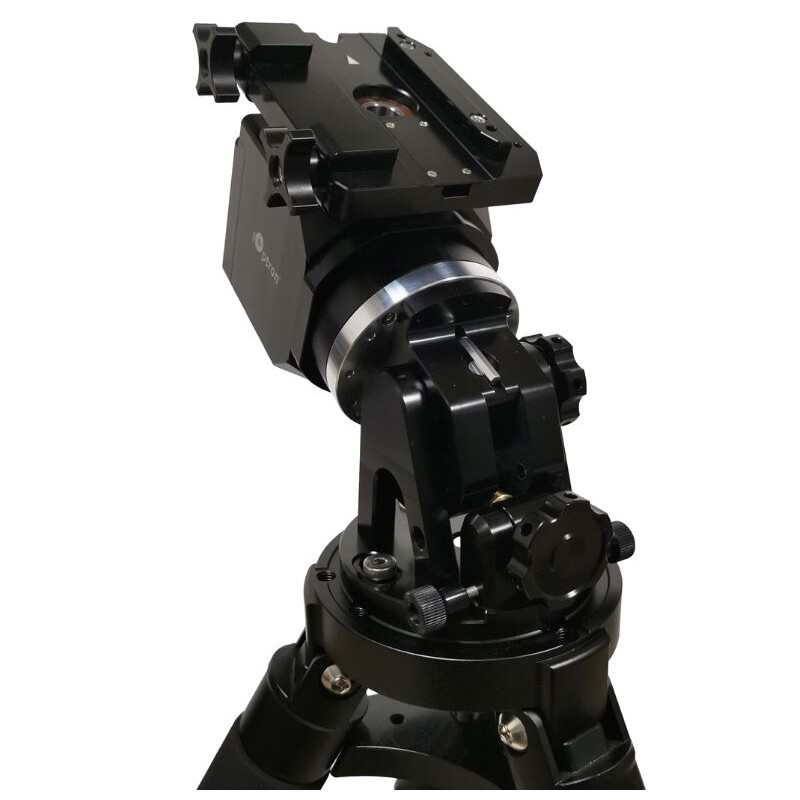

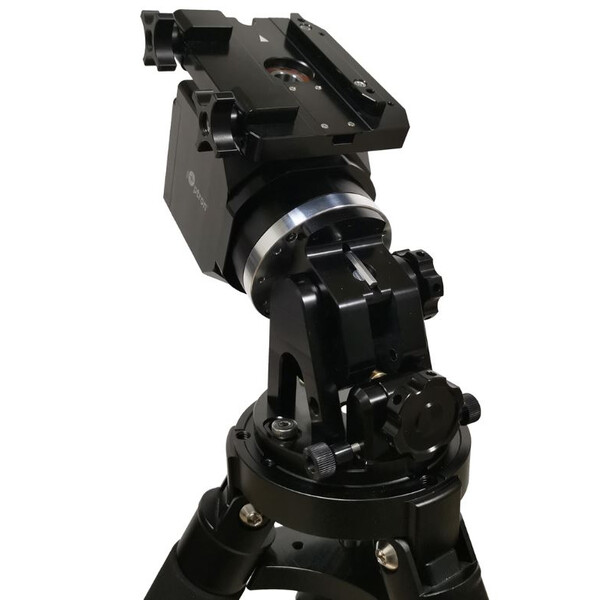

In the HAE29 iOptron offers a compact, transportable dual mount with azimuthal or equatorial functionality and a load capacity of up to 13.5kg without counterweights or up to 18kg with a counterweight (counterweight and tripod available separately and not included).

iOptron's popular Go2Nova® technology also provides this mount with a database of 212,000 objects, as well as ASCOM compatibility and, thanks to the integrated WiFi, the ability to control it via tablet or smartphone using SkySafari, Raspberry Pi or INDI. The dual Vixen/Losmandy head and its sturdy construction enables even medium-sized telescopes to be mounted and used.

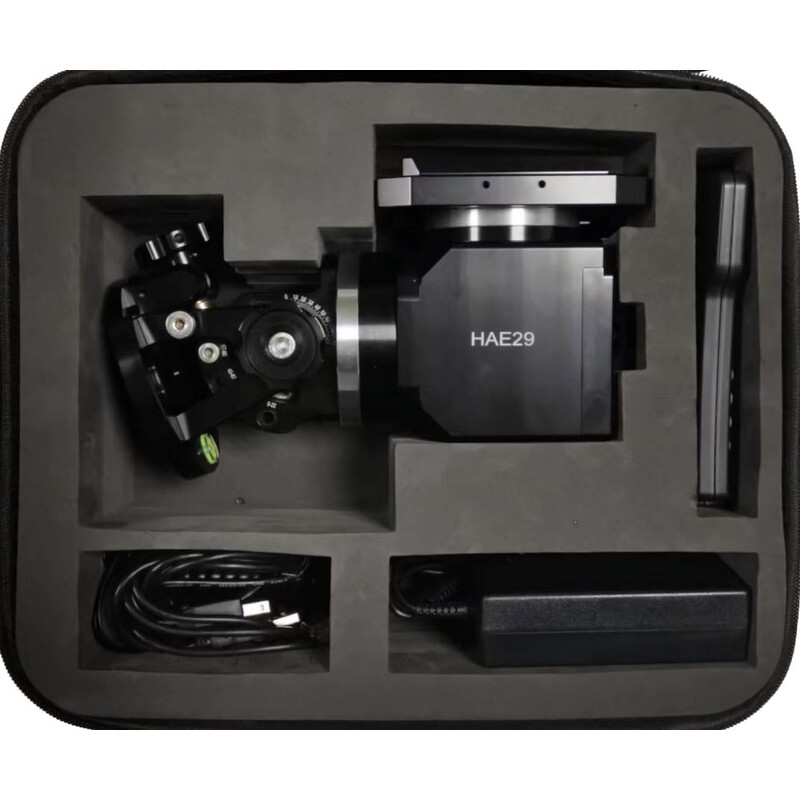

The built-in “Electronic Friction Brake” control mechanism stops the mount from moving as soon as the electricity supply is unexpectedly interrupted. After the mount has been switched on, it automatically calibrates itself and detects its own position. A power supply and a robust (but lightweight!) carry case are also included. Tripod and tripod extension tube sold separately. However, we recommend using the iOptron “40mm CF tripod” (Product no. 77370).

Onze deskundige opmerking:

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

The counterweight shaft for the SkyTracker Pro (product no. 51902) also fits to this iOptron mount.

(Jan Ströher)

Specificaties

Capaciteit


Max. Draagvermorgen (kg)
18 (Contragewicht)
Interfaces
WiFi, USB, HC
Taal
Engels
Montage zadel
Losmandy & Vixen
Gewicht van de montering (kg)
3,7
Ingangsspanning
12
Stroomsterkte (A)
5
Cable-guide
intern
Encoder
nee
Materiaal declinatie-as
Aluminium
Materiaal Rechte klimming as
Aluminium
Motor type
Stepper motoren
Tegengewicht(en)
optioneel
Type aandrijving
Harmonic / Strainwave

Bijzonderheden


GoTo systeem
ja
Handcontroller
ja
Level
ja

Uitrusting


Statief
zonder statief
Transporttas
ja
Poolzoeker
nee
Andere continenten
Stroomvoorziening
Gewichten
0

Algemeen


Serie
HAE
Type
Montering
Ontwerp
Azimutaal

GoTo sturing


GPS
ja
WLAN
ja
PEC correctie
nee
Pool uitlijning
computerondersteund
GoTo taal
Engels
Software
Go2Nova 8409
Autoguiding
ja
Interfaces
Autoguider, USB
Database
212.000
