Microscopie > Microscopie toebehoren > Belichting > Andere lampen > SCHOTT > EasyLED > SCHOTT EasyLED ringlichtsysteem, (RL) Ø i=66mm, incl. voeding
Artikelnummer: 49564

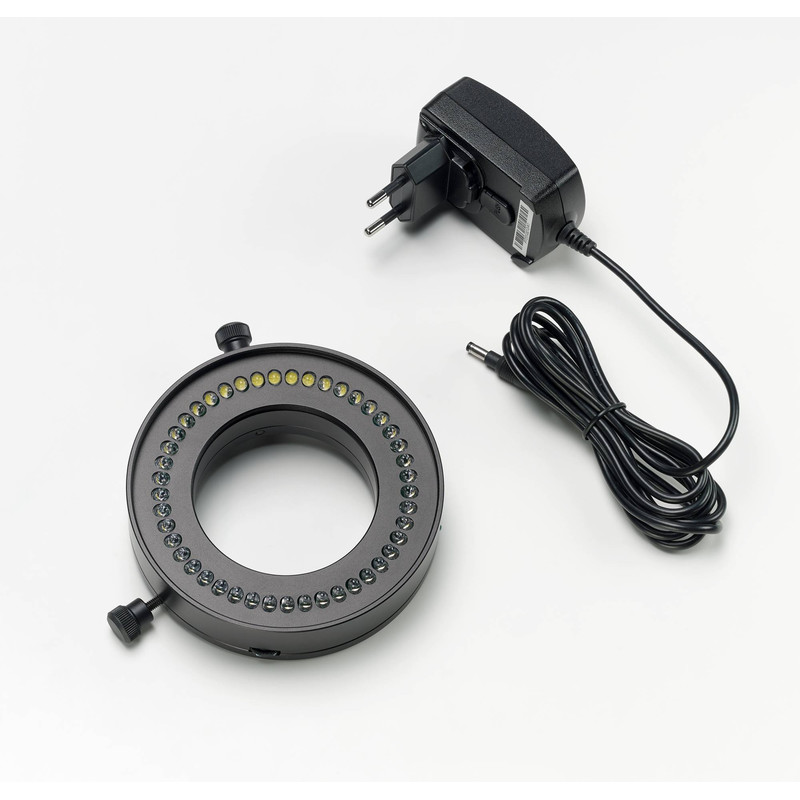

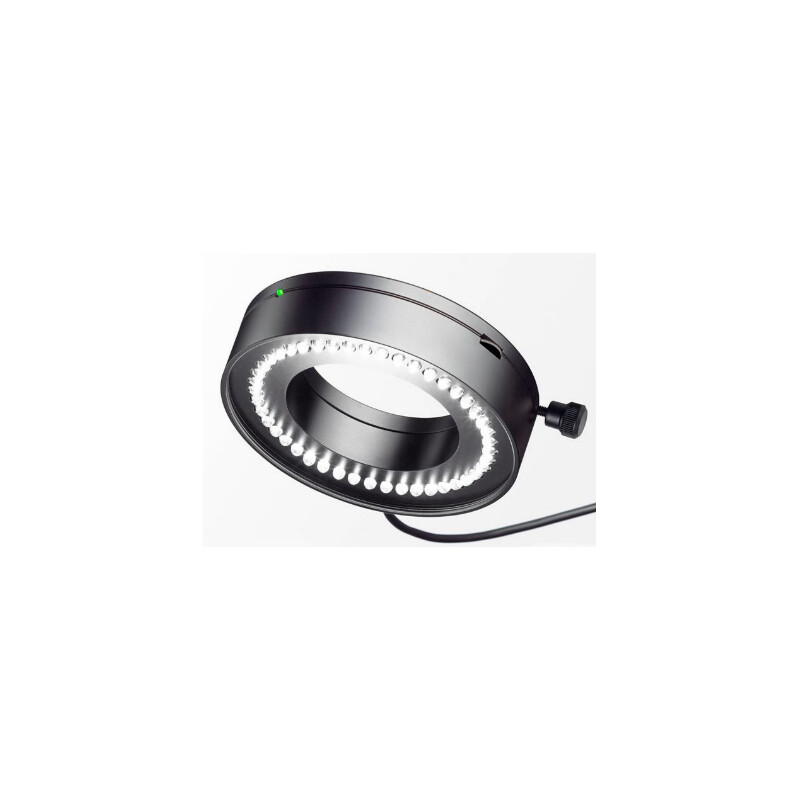

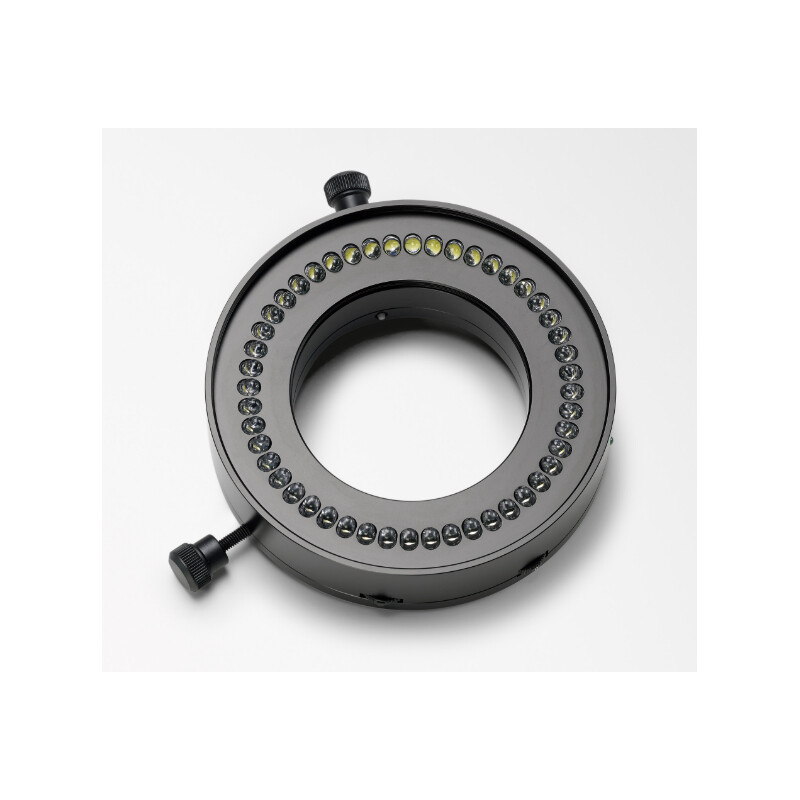

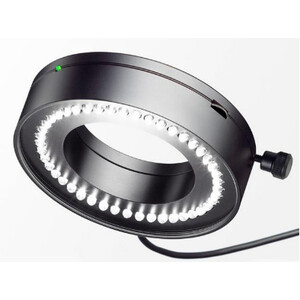

EasyLED ringlichtsysteem, (RL) Ø i=66mm, incl. voeding

in voorraad
Klaar voor verzending in 24 u + verzendtijd
Express verzending is mogelijk tot morgen, 30.03.2024!

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

EasyLED Systems

Ergonomic and compact illumination systems for stereo microscopy and macroscopy

Using the most current technologies, the EasyLED product line integrated high brightness LEDs with controller electronics into the head of the illuminator. This integration combines easy, ergonomic operation with outstanding price performance ratio.

Due to neutral white LEDs (5600 K), images of excellent color fidelity can be achieved.

Robust metal housings and well designed heat sinks make maximum brightness and long lifetime of 50,000 hours possible.

Features

  • No separate controller box for ringlight and backlight. Compact controller box for single and double spotlight.
  • Ringlight Plus version available with basic segment features and segment rotation. Easy and intuitive operation via integrated “jog dial” wheel.
  • Ergonomic operating (not necessary to remove eyes from the eyepieces).
  • Continuous dimming from 0 to 100%.
  • All devices are separately dimmable.
  • Wide input range power supply (100 - 240 V).
  • World wide plug (clip system).
  • Low costs for high quality and functionality.
  • Manufactured in the EU.

Ringlight Plus

  • 48 high brightness LEDs
  • color temperature 5,600 K
  • easy adaption on various microscope objectives (Ø 66 mm/adaptors available)
  • integrated controller for continuous dimming (0 – 100%) and separate on/off switch
  • basic segment features and segment rotation
  • integrated “jog dial” wheel for easy and intuitive operation
  • wide range of working distance: 50 – 130 mm
  • maximum illuminance: 140 klx (at 65 mm working distance)

Specificaties

Capaciteit


Stroomvoorziening
12 V
Lamp type
140klx (LED)

Mechaniek


Werkafstand (mm)
50-130

Algemeen


Hoogte (mm)
61
Lengte (mm)
24
Breedte (mm)
47
Diameter (mm)
66
Serie
EasyLED

Toepassingsgebied


Industrie
ja

Toepassing


Halfgeleider technologie
ja
Odontotechnics
ja

Diversen


Leverancier Productnummer
600.200
