EcoBlue
Specifications:
Eyepiece: Secured DIN WF 10x/18 mm with pointer
Head: Monocular 45° inclined tube and binocular 30° inclined tubes. The digital versions are equipped with a 1.3 Mpixel 1/3 inch CMOS Color USB2 camera @ 1280x 1024 pixels
Nosepiece: Revolving quadruple forwarded nosepiece on ball-bearings. Polarization models equipped with swing-in analyzer
Objectives: All models are standard equipped with achromatic corrected 4x/0.13, 10x/0.25, S40x/0.65 objectives. The 20x/40, S60x/0.85 and S100x/1.25 objectives are also available. All optical parts are antifungus treated and are anti-reflection coated
Stage: Plain 123 x 119 mm stage with 2 object clamps except for the EC.1x5x models which are equipped with an integrated mechanical X-Y stage. Polarization model s with a 360° rotatable 129 mm round stage and 2 object clamps
Condenser: In height adjustable Abbe condenser
Focusing adjustment: axial coarse and 200 µm fine adjustments, 2 µm precision. Friction adjustment
Illumination: 1 W intensity adjustable LED illumination with internal power supply. The models with an integrated mechanical stage are equipped with internal batteries. Polarization models come standard with halogen illumination, LED polarization versions are available on request
Software: ImageFocus 4 capture & analysis software is supplied with each digital microscope model. The software is compatible with Windows XP, Vista, Windows 7 & 8, both 32 and 64 bits platforms

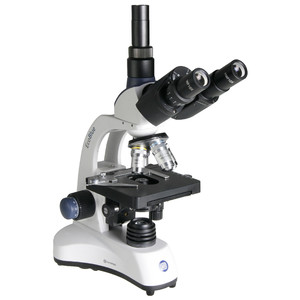

EC.1653 Spezifikation
- Secured DIN WF 10x/18 mm eyepieces
- Trinocular head Siedentopf type, 30° inclined, 360° rotating
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S60x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 ìm,
- 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment
- Plain 130 x 125 mm stage with integrated 70 x 27 mm X-Y mechanical stage
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
- 1 W NeoLED™ illumination with built-in 3 rechargeable batteries
- External power supply 100-240 V (CE)
- Supplied with power cord and dust cover in styrofoam case
