Microscopie > Microscopen > Staande microscopen > Bright field microscopen > Hund > Medicus > Hund Microscoop Medicus plus, plan, trino, infinity, 40x - 1000x
Artikelnummer: 53119

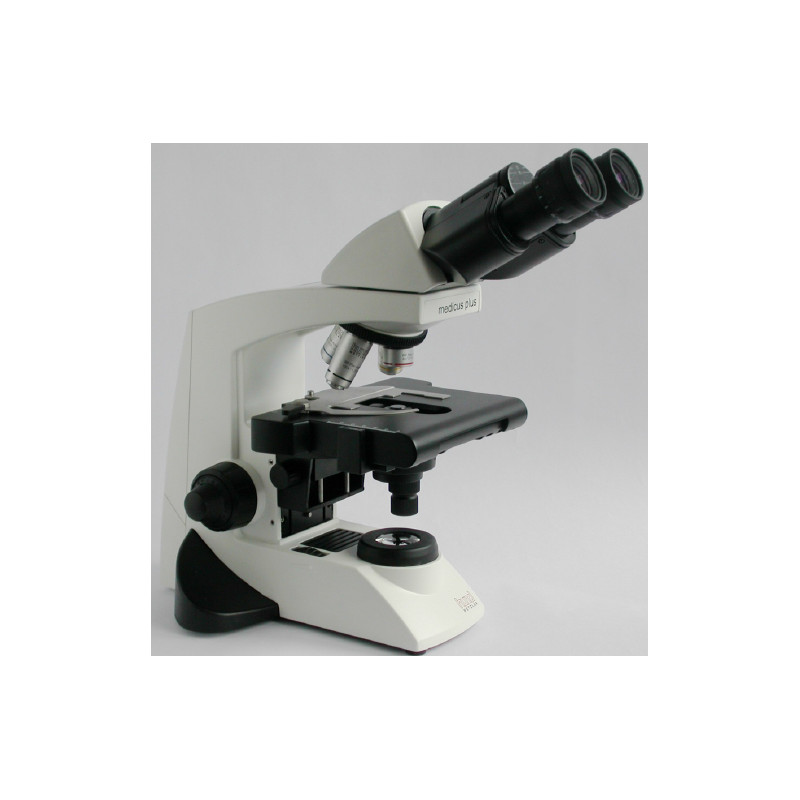

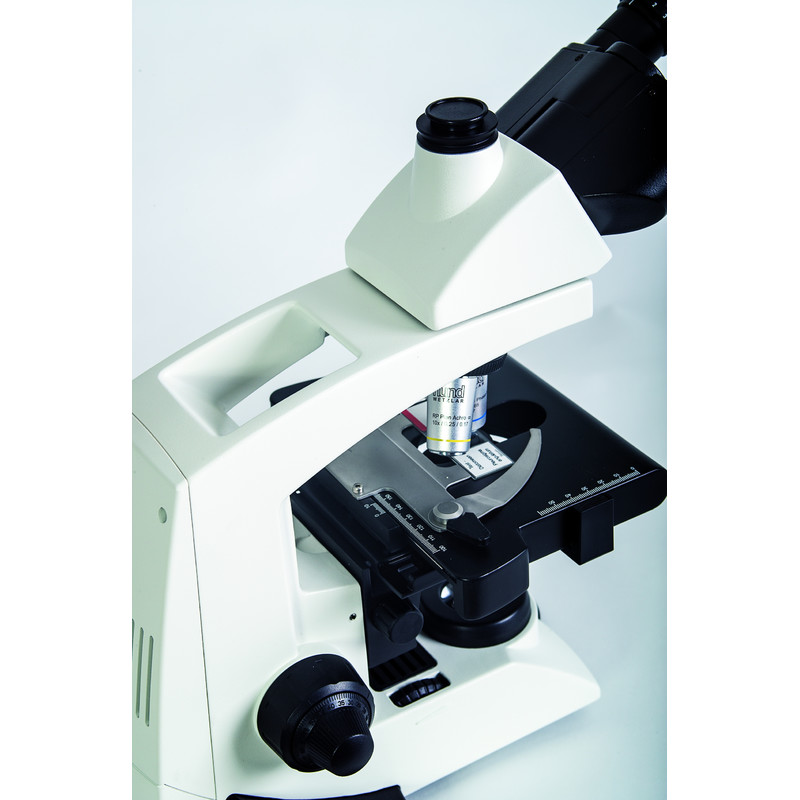

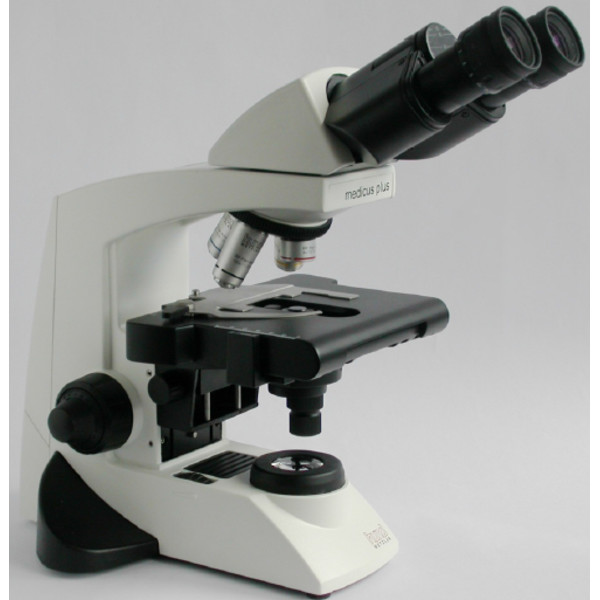

Microscoop Medicus plus, plan, trino, infinity, 40x - 1000x

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

Productomschrijving

Meer over de serie Medicus...

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Hund microscopes have a high quality standard, a good functionality. They are ergonomic and versatile system for medical and biologycal applications .

Laboratory microscopes Medicus

  • Solid cast tripod in classic gooseneck shape
  • Coaxially arranged coarse and fine focusing drive.
    - Height adjustment of the coarse adjustment knob total: 12.7 mm.
    - Height adjustment of the fine adjustment knob per division: 3 microns
  • Binocular Siedentopf -Tubus, 360° rotable .
    - Viewing angle 30 °
    - Tube factor 1x
    - Eye distance of 55 mm - 75 mm adjustable
    - Diopter compensation at each eyepiece.
  • 4-position nosepiece with ball bearing guide
  • Plan-achromatic lenses, infinity-corrected
  • Cross table 200 mm x 160 mm with ergonomically located coaxial knobs.
    - Sliding range 78 mm x 54 mm
    - Specimen holder with spring lever
  • Height adjustable Abbe condenser NA 1.25
  • Integrated 6 V / 20 W halogen lights, infinitely variable

Medicus plus trinocular

with plan-achromatic infinity objectives

Spezification:

  • Stand equipment with 20 W halogen lighting
  • Binocular Siedentopf tube (30° TF 1x)
  • Eyepiece WF 10x / 20 with eyeshades 2 pcs.
  • Lens plan 4x / 0.10
  • Lens plan 10x / 0.25
  • Lens plan 40x / 0.65 with spring slide protection
  • Lens plan 100x / 1.25 oil with sprung slide protection
  • Height adjustable Abbe condenser NA 1.25

Delivery Scope:

  • Power cord
  • wrench set
  • dust cover
  • spare bulb
  • spare fuse
  • operating instructions

Specificaties

Optiek


Vergroting
40-1000 (50, 100, 500, 1000)
Oculair
10 x /20
Lens type
plan, achromatisch (Oneindig gecorrigeerd)
Objectief 1
4x/0,25 plan
Objectief 2
10x/0,25 plan
Objectief 2
40x/0,65, plan S
Objectief 1
100/1,25, plan S, Oil
Condensor
Abbe condensor NA 1,25 met irisdiafragma en filterhouder, in hoogte verstelbaar
Belichting
Doorgelaten licht
Lamp type
Halogeen
Oneindig gecorrigeerd
ja
Optisch systeem
oneindig

Capaciteit


Brightness control
ja
Brightfield
ja

Mechaniek


inzicht (°)
Siedentopftubus; Kijkhoek van 30 °
Specimen stage
Kruistafel
Ontwerp
Trinocular
Scherpstellen
Grove en fijn afstelling
Revolver
4

Bijzonderheden


Stoftas
ja

Algemeen


Serie
Medicus

Toepassingsgebied


Geneeskunde
ja

Toepassing


Pathologie & histopathologie
ja
In-vitro diagnostics
ja
Diergeneeskunde
ja
