Microscopie > Microscopen > Staande microscopen > Bright field microscopen > Motic > BA-410E > Motic Microscoop BA410 Elite, bino, Hal, 50W, 40x-1000x
Artikelnummer: 53497

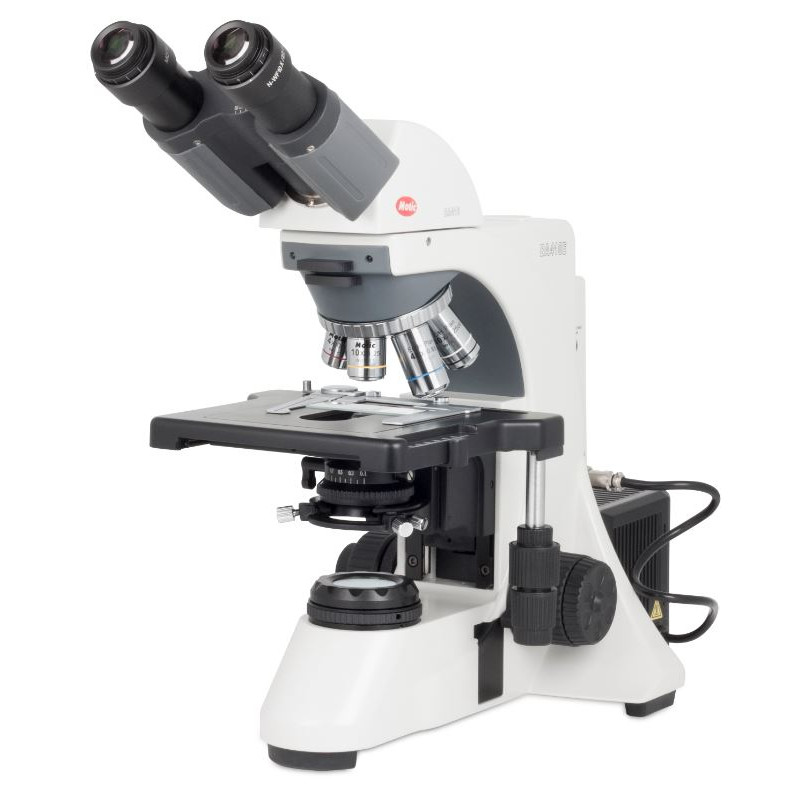

Microscoop BA410 Elite, bino, Hal, 50W, 40x-1000x

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

BA410 Elite Series

Clinical & Lab Microscope Platform

The Elite version of Motic’s established BA410 flagship model displays the highest level of optical performance.

A complete set of Plan Apochromatic lenses is now available for maximum demands in colour reproduction and resolution. The BA410E allows a profound diagnosis in pathology, haematology and cytology with their requirements for best colour fidelity. Increased Numerical Apertures provide an expanded resolution power for a more detailed specimen evaluation. The AUTO ON-OFF function with its energy-saving aspect improves lab safety: a final instrument check before closing time is no longer necessary. A light memory function, based on a coded 6-fold nosepiece, memorizes the light intensity of each nosepiece position. When changing to a specific objective, the last illumination setup of this position is recalled. Once coordinated, there is no need to adjust the illumination when changing magnification. For increased illumination power, a 100W Halogen version is available. The rackless stage concept, well known from BA210/BA310 Elite models, is now adopted in this flagship model. A ceramic stage insert for highest abrasion resistance guarantees a perfectly flat placing of the glass slide for a lifetime.

Main Features

  • Optional Plan Apochromatic lenses
  • AUTO ON-OFF function
  • Light memory function, coded 6-fold nosepiece
  • Ceramic stage insert

BA410E Binocular Sextuple 50W

Specification

  • Binocular head Siedentopf type 30°, inclined, 360° rotating
  • Widefield high eyepoint eyepieces N-WF 10X/22mm with diopter adjustment and rubber eyecups
  • Reversed coded sextuple nosepiece
  • CCIS Plan achromatic objectives EC-H PL 4X, 10X, 40X S, 100X S-Oil
  • Coaxial coarse and fine focusing adjustment

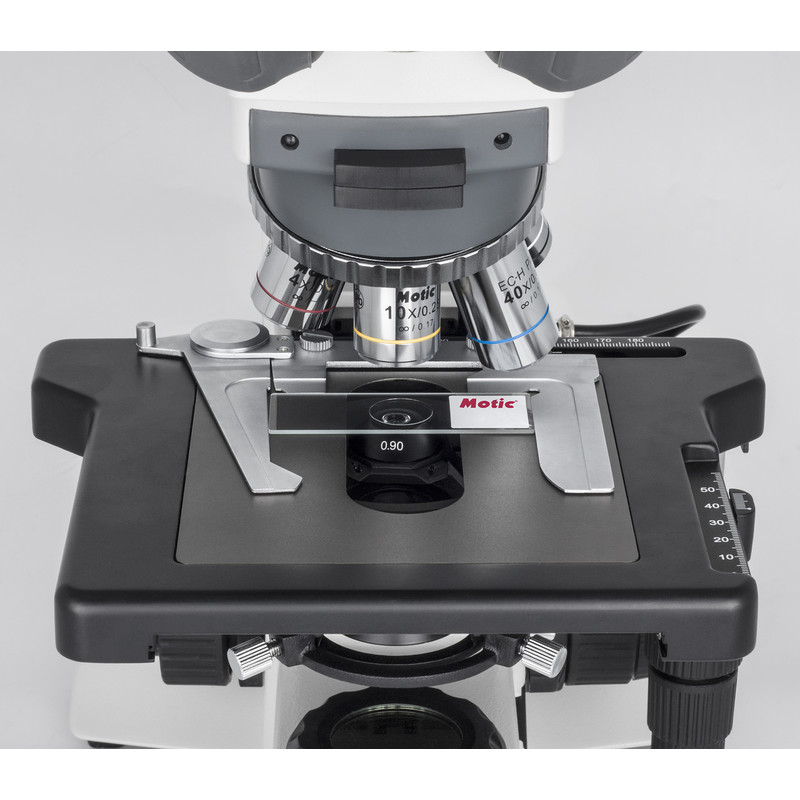

  • Low position rackless stage with ceramic insert and reversible right or left hand control
  • Achromat swing-out condenser N.A. 0.90/0.13 with iris diaphragm
  • Koehler illumination quartz halogen 12V/50W with external lamp house and intensity control
  • Auto-OFF and Light Memory function
  • Power supply 100V-240V (CE)

Delivery scope

  • 45mm blue filter
  • clear glass
  • immersion oil (5ml)
  • power cord
  • allen hexagonal key
  • vinyl dust cover

Specificaties

Optiek


Oculair
10
Lens type
plan, achromatisch
Lamp type
Halogeen
Condensor
Abbe (N.A. 0.90)
Belichting
Doorgelaten licht
Vergroting
1000
Optisch systeem
oneindig
Objectief 1
4X/0.10 (WD 15.9mm)
Objectief 2
10X/0.25 (WD 17.4mm)
Objectief 2
40X/0.65/S (WD 0.5mm)
Objectief 1
100X/1.25/S-Oil (WD 0.15mm)

Capaciteit


Brightness control
ja
Brightfield
ja

Mechaniek


Ontwerp
Binoculair
Scherpstellen
Grove en fijn afstelling
inzicht (°)
30° schuin zicht, kop 360° roteerbaar
Specimen stage
Kruistafel (180x170mm (80x55mm))
Revolver
6

Bijzonderheden


Stoftas
ja
Filterhouder
ja
Wide-angle oculair
ja

Algemeen


Serie
BA-410E
Kleur
grijs / zwart
Gewicht (g)
14200
Hoogte (mm)
439
Breedte (mm)
242
Lengte (mm)
550

Toepassingsgebied


Geneeskunde
ja

Toepassing


Dark field
-
Fluorescence
-
Interference contrast
-
Metallurgie
-
Phase contrast
-
Polarisatie
-
Diergeneeskunde
ja
Pathologie & histopathologie
ja
Biologie Zoölogie & Plantkunde
ja
Universiteit
ja
