Microscopie > Microscopen > Staande microscopen > Bright field microscopen > Optika > B-150 > Optika Microscoop B-159 ALC, bino, DIN, HC-achro, 40-1000x, 10x/18, LED 1W
Artikelnummer: 67648

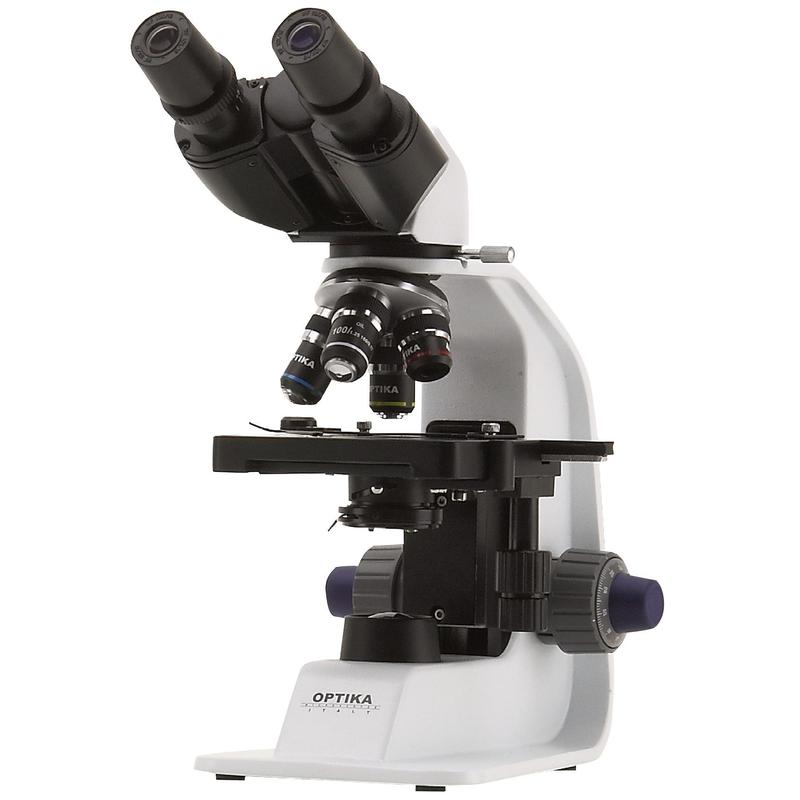

Microscoop B-159 ALC, bino, DIN, HC-achro, 40-1000x, 10x/18, LED 1W

lange termijn
Klaar voor verzending in 6-10 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

The B-150 series is designed to meet all the needs of an educational laboratory. These microscopes promise a smooth and successful introduction to microscopy.

The relationship between optical quality, mechanical reliability and low price guarantees them a place among the top microscopes in this field.

B-159ALC

  • Observation mode: Brightfield.
  • Head: Binocular, 30° inclined; 360° rotating.
  • Eyepieces: WF10x/18 mm, secured by screw.
  • Objectives: – High Contrast Achromatic 4x/0.10 , with anti-fungus treatment – High Contrast Achromatic 10x/0.25 , with anti-fungus treatment – High Contrast Achromatic 40x/0.65 , with anti-fungus treatment – High Contrast Achromatic 100x/1.25 (Oil/Water) , with anti-fungus treat.
  • Specimen stage: Mechanical stage, 125x116mm, 70×30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1mm.
  • Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.
  • Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.
  • Illumination: X-LED1 with white 1 W LED and light intensity control.
  • Color temperature: 6,300 K. With ALC (Automatic Light Control). Multi-plug 100-240Vac/5Vdc external power supply.

Specificaties

Optiek


Belichting
Doorgelaten licht
Lamp type
LED
Vergroting
1000
Lens type
Achromatisch
Image scale
4,10,40,100
Oculair
10x/18 Weitfeld
Stroomvoorziening
Netstekker
Condensor
Abbe condensor, NA 1,25 met iris diafragma
Optisch systeem
DIN (160mm)

Capaciteit


Optiek coating
plan (Plan objectief, gecorrigeerd op oneindig)
Brightfield
ja

Mechaniek


Ontwerp
Binoculair
inzicht (°)
30° schuin zicht, kop 360° roteerbaar
Scherpstellen
Grove en fijn afstelling
Specimen stage
125x116 mm

Bijzonderheden


Oplaadbare batterij
-
Filterhouder
-
Geïntegreerde digitale camera
-
Luminous field diaphragm
ja
Stoftas
ja
Centreerfase
ja

Algemeen


Lengte (mm)
350
Breedte (mm)
170
Hoogte (mm)
210
Gewicht (g)
4000
Serie
B-150
Kleur
wit

Toepassingsgebied


Onderwijs
ja
Geneeskunde
ja

Toepassing


Universiteit
ja
Parasietenanalyse
ja
