Microscopie > Microscopen > Staande microscopen > Bright field microscopen > Optika > B-190PL > Optika Microscoop B-192PL,bino, DIN, N-plan, 40-1000xO/W, X-LED
Artikelnummer: 71094

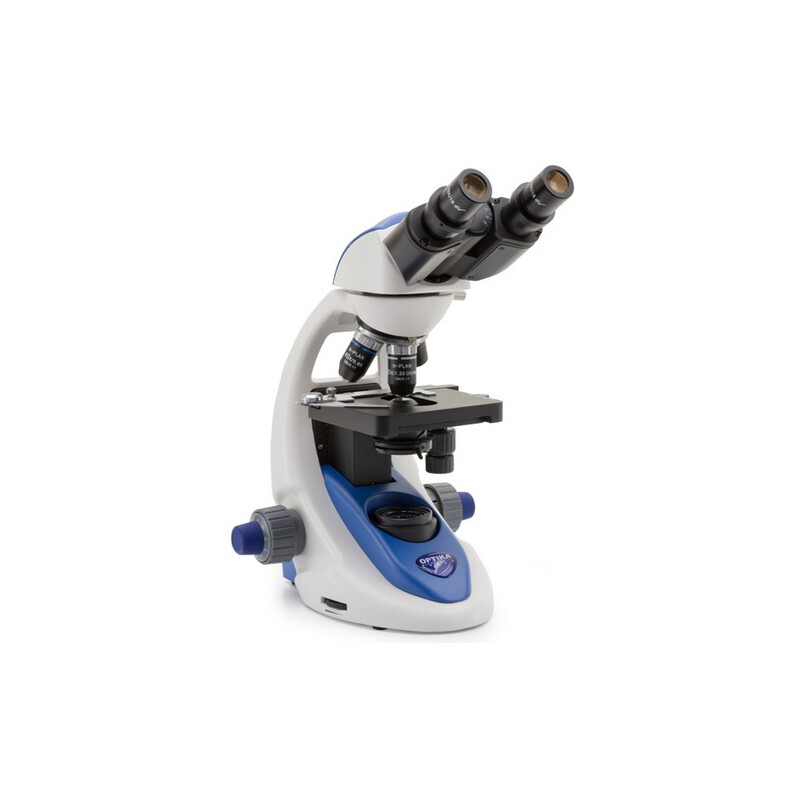

Microscoop B-192PL,bino, DIN, N-plan, 40-1000xO/W, X-LED

Aanbevolen prijs: $ 680,00 Onze prijs:
$ 610,00 incl.btw, + verzendkosten
Heeft u elders goedkoper gezien?
lange termijn
Klaar voor verzending in 6-10 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

B-192PL

Binocular microscope ideal for teachers and secondary schools, with four N-PLAN objectives (1000x), FN 18 high eyepoint, finite optical system, coaxial focusing, mechanical stage, Abbe condenser and powerful, uniform, white color temperature 3 W X-LED2 illumination. Slim and easy to carry, yet sturdy and resistant, it is equipped with all the main controls to start learning how to use an advanced microscope and with long lasting LED illumination to provide over 20 years of use

Specification

Head: Monocular 30° inclined; 360° rotating.

Dioptric adjustment: Left eyepiece.

Eyepieces: WF10x/18 mm, high eyepoint, secured by screw.

Nosepiece: Quadruple ball bearings revolving nosepiece, reversed.

Objectives:- N-PLAN objective 4x/0.10

- N-PLAN objective 10x/0.25

- N-PLAN objective 40x/0.65

- N-PLAN objective 100x/1.25 (Oil/Water)

All with anti-fungus treatment.

Specimen stage: Mechanical stage, 125x115 mm, 70x30 mm X-Y movement range. Vernier scale on the two axes, accuracy: 0.1 mm.

Focusing: Coaxial coarse and fine focusing mechanism with limit stop to prevent the contact between objective and specimen. Adjustable tension of coarse focusing knob.

Condenser: Abbe N.A. 1.25, pre-centered, focusable, with iris diaphragm.

Illumination: X-LED² with white 3 W LED and brightness control.

Color temperature: 6,300 K. Multi-plug 100-240Vac/6Vdc external power supply

Specificaties

Optiek


Image scale
1000
Aantal objectieven
4
Belichting
Doorgelaten licht
Veldkromming
plan
Kleurcorrectie
achromatisch
Lamp type
LED
Objectief 1
N-PLAN 4x/0.10
Objectief 2
N-PLAN 10x/0.25
Objectief 2
N-PLAN 40x/0.65
Objectief 1
N-PLAN 100x/1.25 (Oil/Water)
Optisch systeem
DIN (160mm)
Oneindig gecorrigeerd
nee
Vergroting
1000

Capaciteit


Doorgelaten licht
ja
Brightfield
ja
Lamp type
LED
Field of view value
18
Vergroting
1000

Mechaniek


Ontwerp
Binoculair
inzicht (°)
30
Specimen stage
Kruistafel
Revolver
4

Algemeen


Serie
B-190PL

Werkwijze contrast


Brightfield
ja

Toepassingsgebied


Onderwijs
ja

Toepassing


School
ja
Parasietenanalyse
ja

Diversen


Leverancier Productnummer
B-192PL
