Microscopie > Microscopie toebehoren > Camera's > Camera's > Euromex > HD > Euromex Camera HD-Pro HDMI, VC.3038, HDMI, USB 2.0, 1/2.8", 2MP
Artikelnummer: 65018

Camera HD-Pro HDMI, VC.3038, HDMI, USB 2.0, 1/2.8", 2MP

lange termijn
Niet meer beschikbaar + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

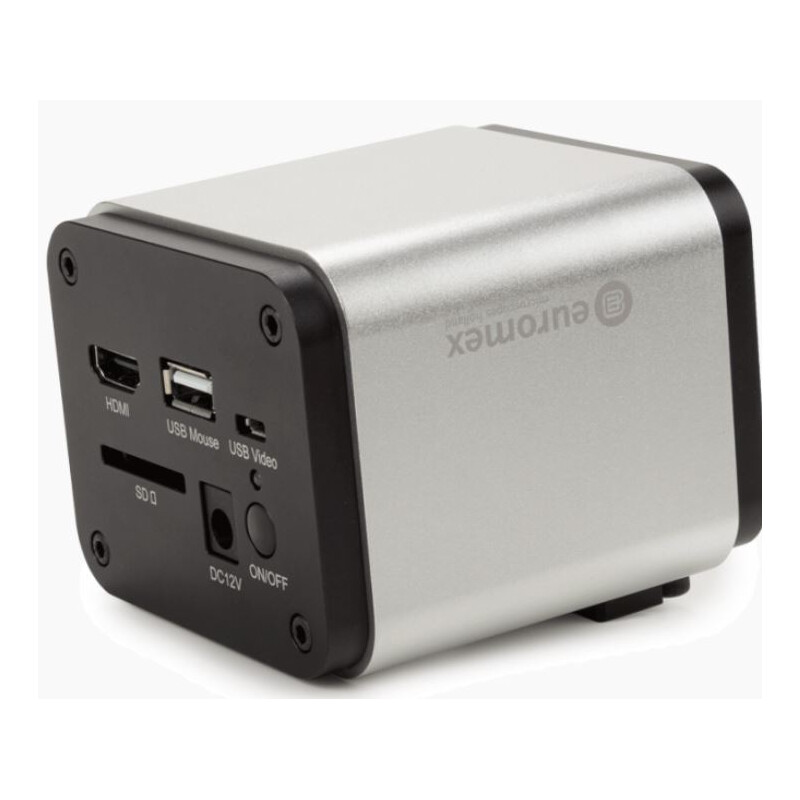

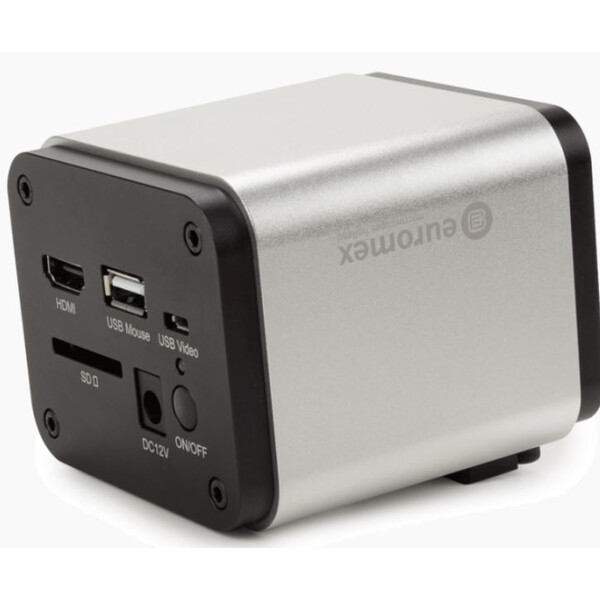

HD-Pro HDMI camera VC.3038/VC.3038-HDS

The real time images generated with this camera provide excellent color rendering at high frame rates, up to 60 frames per second on any direct connected HDMI screen or monitor. The HD-Pro high definition camera can be used in three modes: in a stand-alone with its embedded mouse-driven software, in a computer controlled mode or a combination of both. Connect the HD-Pro directly to a large TV or monitor, perform calibrated measurements, save images and videos all without need of a computer. The menu and controls are displayed on the TV and are controlled by a mouse, connected directly to the camera. More advanced analyses can be done by connecting the HD-Pro to a computer, where ImageFocus Alpha software allows for annotations, measurements, stacking, stitching and many more functions

Highlights

  • HD 1080p high definition video camera
  • Real time images directly on screen
  • Stand alone or used via PC or simultaneous use
  • Built-in mouse-driven software
  • C-mount interface
  • HDMI, USB-2 and SD memory card
  • Compatible with ImageFocus Alpha software
  • HDMI 2.0 MP CMOS high sensitive sensor

TECHNICAL SPECIFICATIONS

Sensor: SONY IMX290 CMOS

Format : 1/2.8”, HDTV 1080p (50/60Hz)

Pixels : 1920 x 1080 pixels (capture mode), 1920 x 1080 pixels (live view), HDMI 60 fps, USB 26 fps

Pixel size: 2.9 x 2.9 µm

Video: 1080p pixels video recording mode

Video Output: Digital HDMI, USB-2

Scan mode: Progressive scan, rolling shutter

Exposure : Automatic/manual

White balance: Automatic/manual/ ROI

Sensitivity: 1300mV with 1/30s

Noise : Standard noise reduction

Color rendering: 24

Signal/Noise (db): 38

Dynamic (db): 66

Interfaces: Digital HDMI, USB-2

Storage: High speed 16 GB SD card included (32GB max)

Camera buttons: On/ Off

Mounting: C-mount interface

Power supply: DC 12V/1A Adapter

Operation: -10~ 50 C, 30~80% relative humidity

Storage temperature: -20~ 60 C, 10~60% relative humidity

Software: Supplied with ImageFocus Alpha imaging and measuring software for Windows 7/ 8/ 10 (32 and 64 bit configurations)

PC requirements: Compatible with Intel Core 2, 2.8 GHZ or higher, 2 GB, USB-2

EMBEDDED SOFTWARE: (displayed on TV, no need for computer)

• Capture images and videos to SD
• Playback images and videos from SD
• Measurements (like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
• Compare images
• Grids
• Digital zoom in/out
• Flip
• Pause
• Camera settings (white balance, color control etc.)

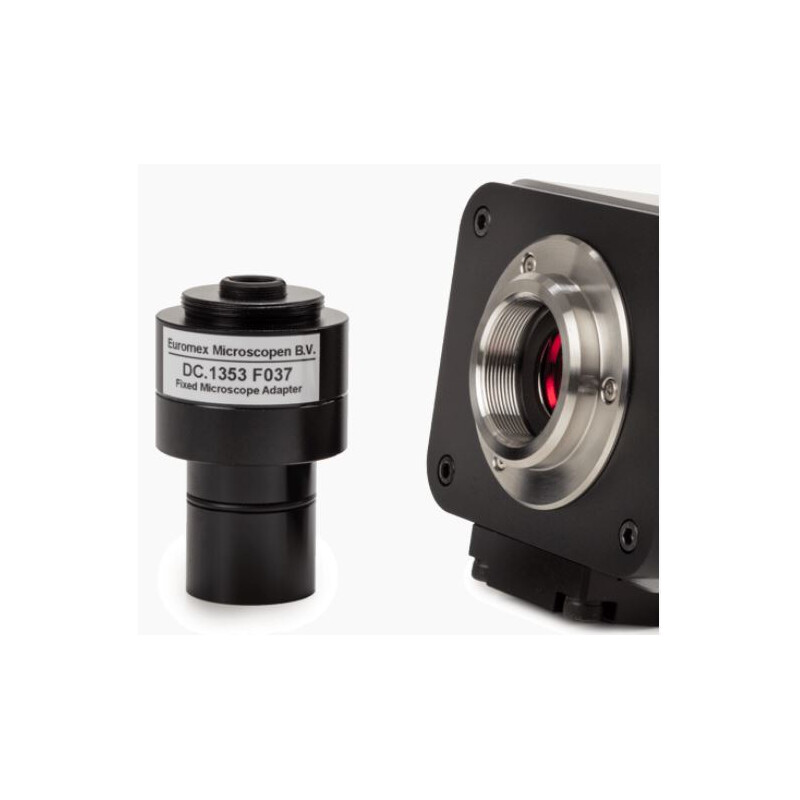

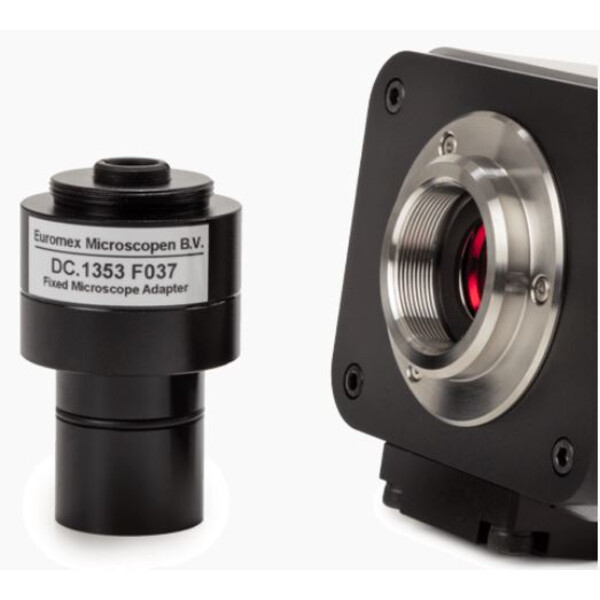

Supplied with : 0.37x objective with C-mount, 30 mm and 30.5 mm adapters for stereo microscopes, 12 V/1 A power adapter, a 16 GB SD card, Micro USB Synchronous cable 1.5 M, HDMI cable, USB mouse, 76 x 24 mm calibration slide (1mm/100), CD ROM with ImageFocus Alpha software, carton box

Model: VC.3038 / VC.3038-HDS

Specificaties

Capaciteit


Sensor size (mm)
1/2.8”
Megapixel
2
Resolutie foto
1920 x 1080
Resolutie video
1920 x 1080
Intern geheugen (Megabyte)
-
Uitbreidbare opslag
SD-card 16 Gb
TV output
ja
Interface
HDMI uitgang
Video function
ja

Camera


Megapixel
2
Peltier koeling
nee
Kleurencamera
ja
Pixel size
2.9x2.9
Beeldoverdracht
HDMI
Sensor
CMOS
Sensor size (″)
1/2.9
Resolutie foto
1920x1080
Frame rate (fps)
60
Camera sluiter
Rolling Shutter
Min. belichtingstijd (ms)
0.036
Max. Belichtingstijd (ms)
8000
Gevoeligheid (mV/s)
1.3 V @ 1/30 s
Benodigde adapter
0.37x
Software
ImageFocus Alpha
Ondersteunde besturingssystemen
Win 7/8/10 Mac OS

Algemeen


Lengte (mm)
81
Breedte (mm)
65
Hoogte (mm)
78
Gewicht (g)
500
Serie
HD

Toepassing


Live
ja
Lage vergroting
nee
Hoge vergroting (100x)
ja

Diversen


Leverancier Productnummer
VC.3038
