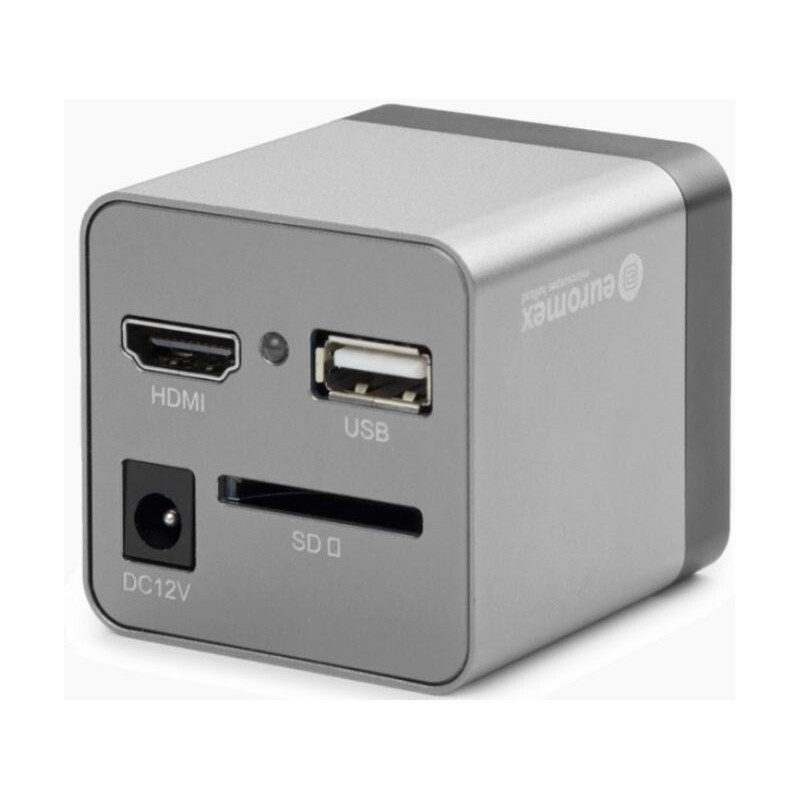

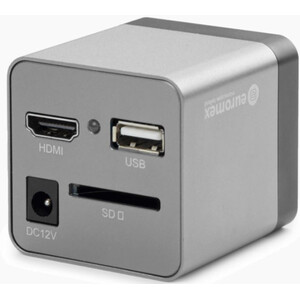

HD Mini VC.3020 / VC.3020 -HDS
The Euromex HD-Mini standalone camera offers the perfect solution to modern microscopy for industry and laboratories where real time images are needed. These HD image quality cameras can be used for biological-, metallurgical- or stereo microscopes. High definition HD720p CMOS color camera with HDMI interface. The real time images generated with this standalone camera provide excellent color rendering at high frame rates and very user friendly! No need to open or start a computer or any computer knowledge to use these camera’s. The embedded software of the camera features functions like image capture, white balance, auto/manual exposure, zoom in/out, horizontal/vertical flip, video freeze/cancel video freeze, grid, display/hide camera control panel, color adjustment (sharpness / de-noise / saturation / gamma / contrast). All camera settings are done automatically. This results in faster, more flexible and compact working conditions. Simply connect the camera to a high definition HD screen, TV-HD or HD-beamer with a HDMI input and the system is ready to go. The mouse-driven embedded software of the camera enable capturing images on the integrated SD memory card
Highlights
- High defenition 720P color camera
- Real time images directly on screen
- Stand alone
- Built-in mouse controlled software
- C-mount interface with c-mount lens (23.2) included
- HDMI output
- 16 GB SD memory card included

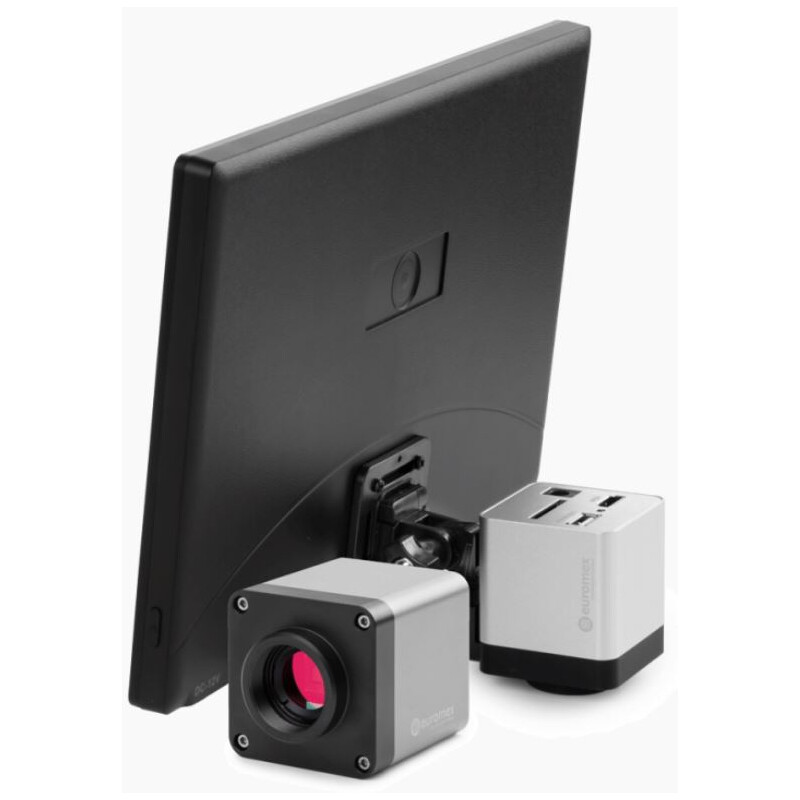

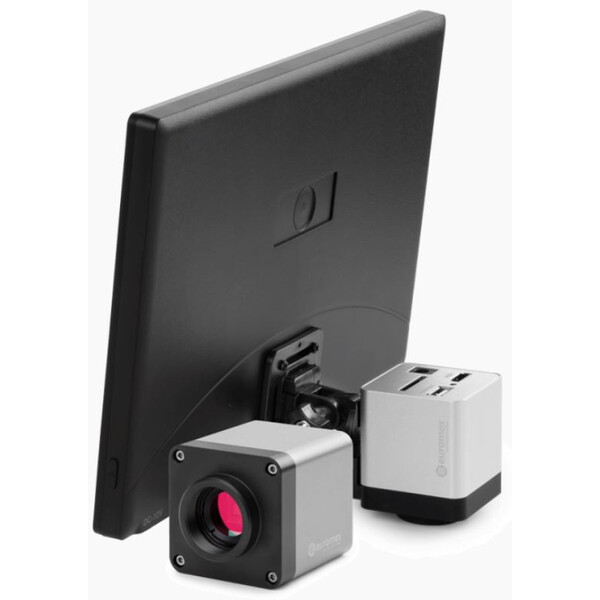

- Available with 11.6” HD screen (VC.3020-HDS
TECHNICAL SPECIFICATIONS
Sensor: HDMI 1.2 Mega pixels CMOS high sensitive sensor (Aptina)
Format: 1/3 inch, HDTV 720p
Pixels: 1280 x 720 pixels (capture mode) 1280 x 720 pixels (live mode) HDMI 30 fps
Scan mode: Progressive scan
Pixel size: 3.75 x 3.75μm
Noise: 3D Noise reduction function
Sensitivity: 6.5v/lux-sec
White balance: Automatic/manual
Dynamic range: 85.3dB
S/N max: 44dB
Interface: HDMI
Storage: Images are saved to a standard high speed 16 Gb SD memory card (Recommend using SD card of class 4 or higher and ≤32Gb)
Mounting: C-mount interface
Power supply: DC 12V/ 1A adapter
Operation: -10~ 50 Celsius, 30~80%RH
Storage: -20~ 60 Celsius, 10~60%RH
Features included in the on-screen software: Image Capture, White balance, Auto/ Manual exposure, Zoom In/ Out, Horizontal/ Vertical Flip, Video Freeze/ Cancel Video Freeze, Grid, Display/ Hide Camera Control Panel, Color Adjustment (Sharpness/ Denoise/ Saturation/ Gamma/ Contrast);
Compatibility: Suitable for all HDMI screens, monitors and beamers

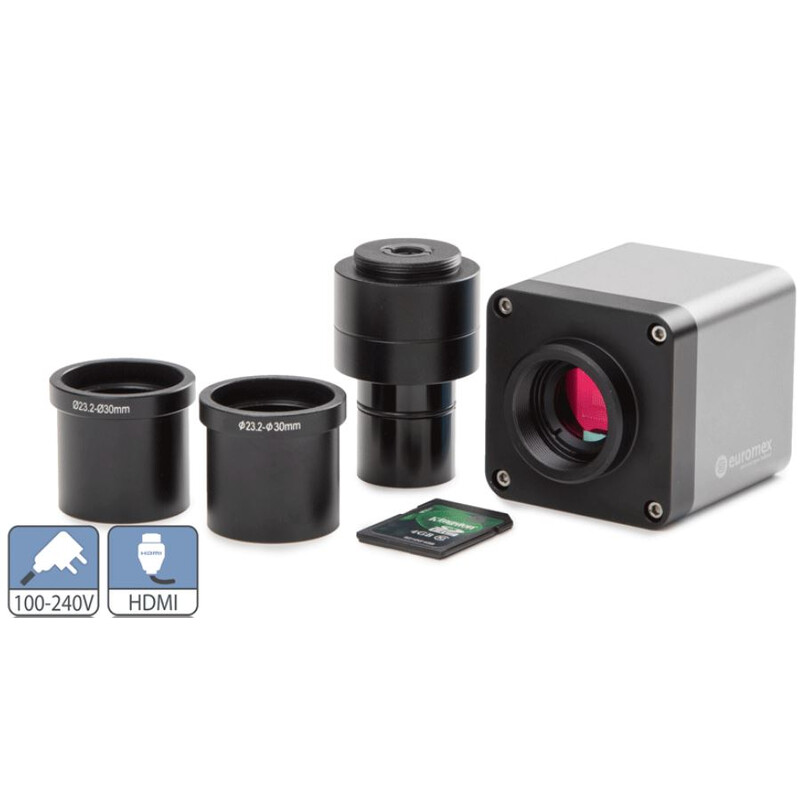

PACKAGING: The HD-Mini 1080p camera (ref. VC.3020) is supplied with a mouse, a 0.37x C-mount adapter for 23.2 mm tubes, 30.0 and 30.5 mm conversion adapters (for use with stereo microscopes), external 12V /1A power supply, 10/100 calibration slide, a 16 GB SD-card, HDMI cable and product manual
