Microscopie > Microscopie toebehoren > Camera's > Camera's > Optika > C-B+ > Optika Camera C-B18+, 1/2.3", 18MP, CMOS, USB 3.0
Artikelnummer: 66773

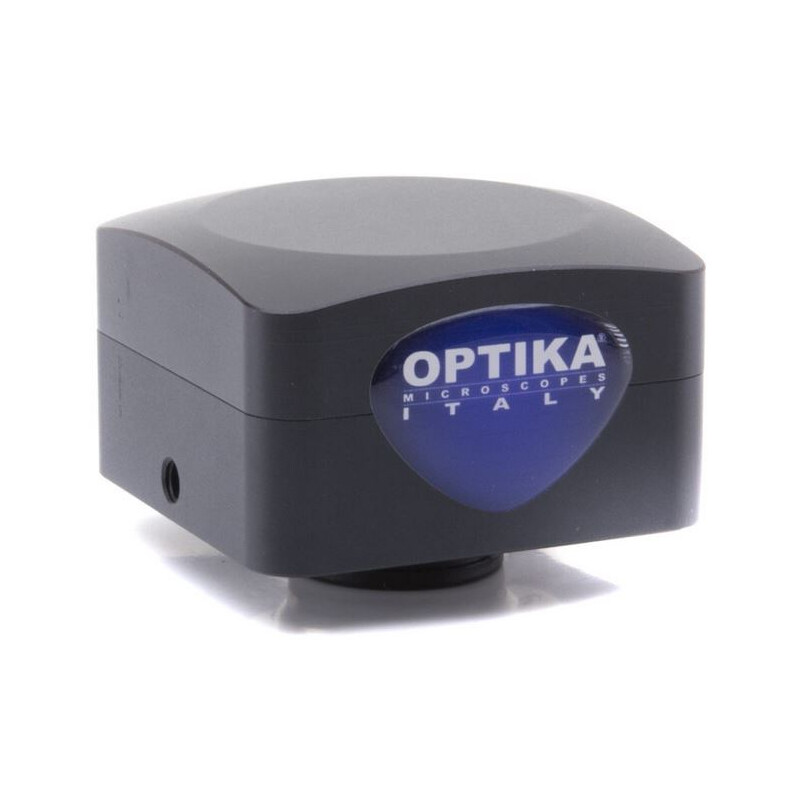

Camera C-B18+, 1/2.3", 18MP, CMOS, USB 3.0

Aanbevolen prijs: $ 850,00 Onze prijs:
$ 760,00 incl.btw, + verzendkosten
Heeft u elders goedkoper gezien?
lange termijn
Klaar voor verzending in 6-10 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

C-B18+, B18+ camera, 18 MP CMOS, USB3.0

High speed, user-friendly camera with high resolution (18 MP), CMOS sensor and USB3.0 connection, recommended for basic/general applications in education and home use especially on moving specimens.

Ready to use on any microscope with direct eyepiece tube connection, thanks to the C-mount projection lens and rings included. Connectable also to all the trinocular tube of different brands using the C-mount projection lens included or additional focusable C-Mount adapter.

Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.

Highlights

» Simple operation, driver-free

» Universal connection to any microscope brand

» Direct eyepiece & trino port connection

» Crisp, high resolution 18 MP images

» USB3.0 for impressive high frame rate

» Reliable color fidelity

» C-Mount projection lens and rings included

» USB cable and calibration slide included

» Downloadable, free of charge software

» OPTIKA ProView & LiteView for Windows

» OPTIKA LiteView for Mac OS or Linux

Specificaties

Capaciteit


Sensor size (mm)
1/2.3"
Megapixel
18
Lichtgevoeligheid (Lux)
0.53V/lux-sec
Beeldformaat
4/3
Resolutie foto
4912x3684
Intern geheugen (Megabyte)
-
Interface
USB 3.0
Optische interface
c-mount

Camera


Megapixel
5.1
Peltier koeling
nee
Kleurencamera
ja
Pixel size
1,25
Beeldoverdracht
USB 3.0
Sensor
CMOS (Aptina)
Sensor size (″)
1/2.3
Resolutie foto
4912x3684
Frame rate (fps)
32,2
Camera sluiter
Rolling Shutter
Min. belichtingstijd (ms)
0.1
Max. Belichtingstijd (ms)
2000
Gevoeligheid (mV/s)
0.62 V/lux sec
Benodigde adapter
0.5x
Software
LiteView
Ondersteunde besturingssystemen
Win 7/8/10 Mac OS Linux

Algemeen


Lengte (mm)
68
Breedte (mm)
68
Hoogte (mm)
46
Gewicht (g)
280
Serie
C-B+

Toepassing


Lage vergroting
ja
Hoge vergroting (100x)
ja
Live
nee

Diversen


Leverancier Productnummer
C-B18
