Microscopie > Microscopie toebehoren > Camera's > Camera's > Optika > CCD Cooled > Optika Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0
Artikelnummer: 67812

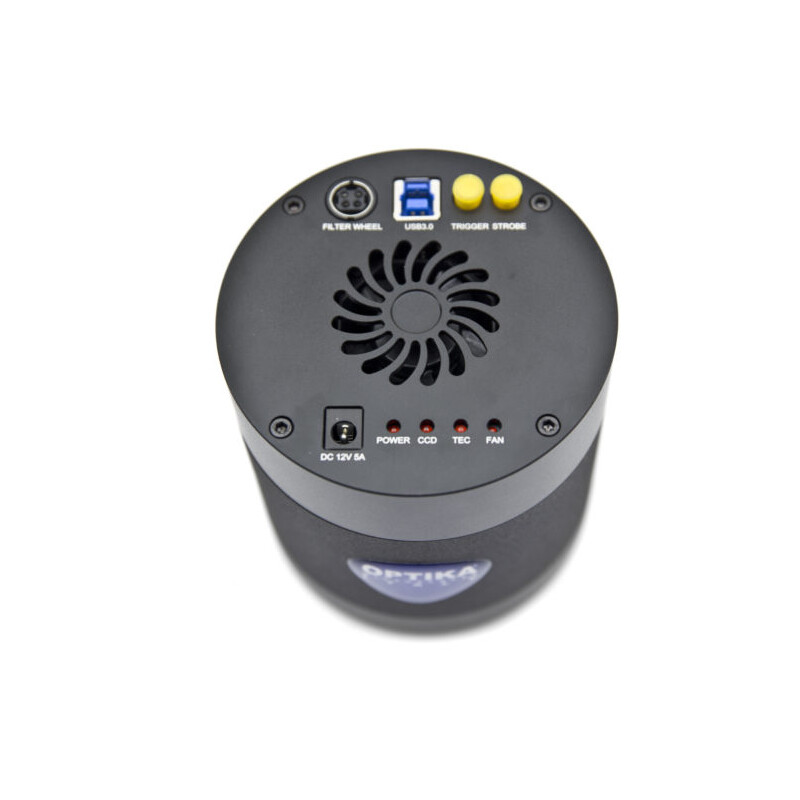

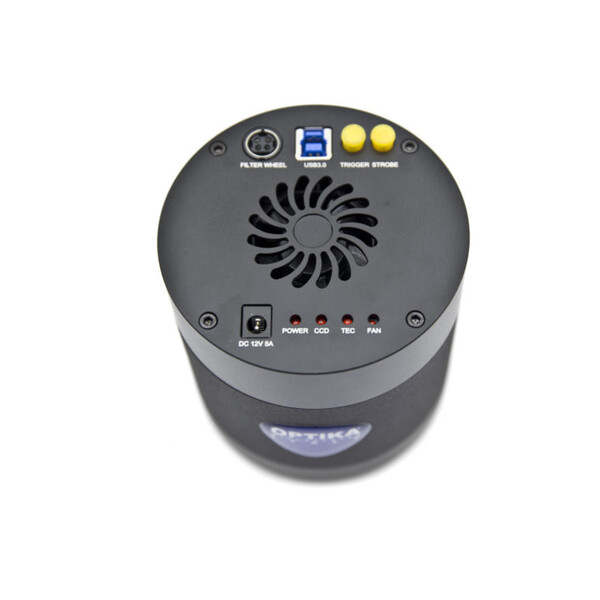

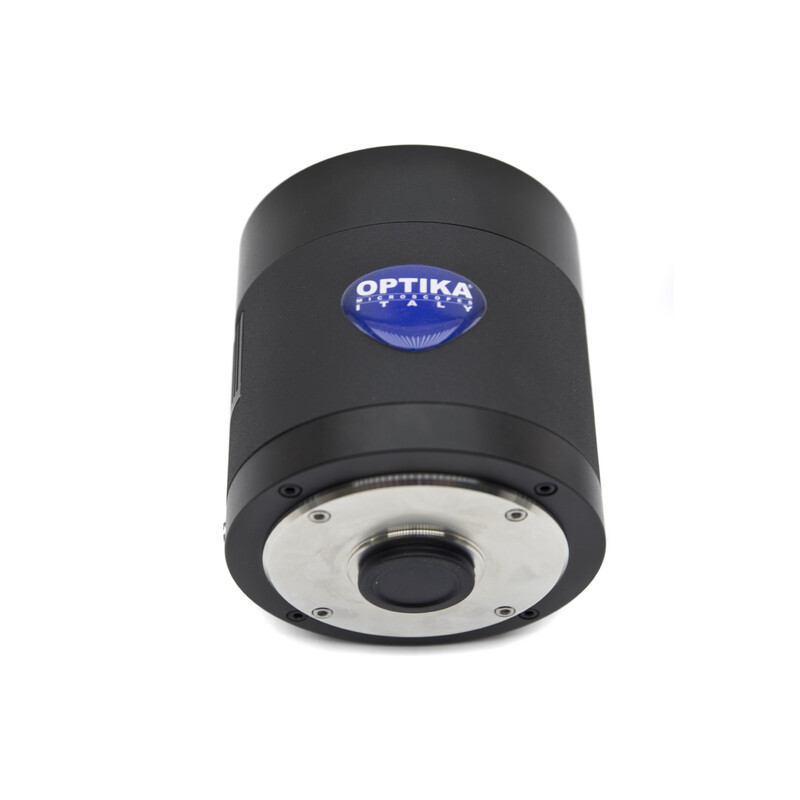

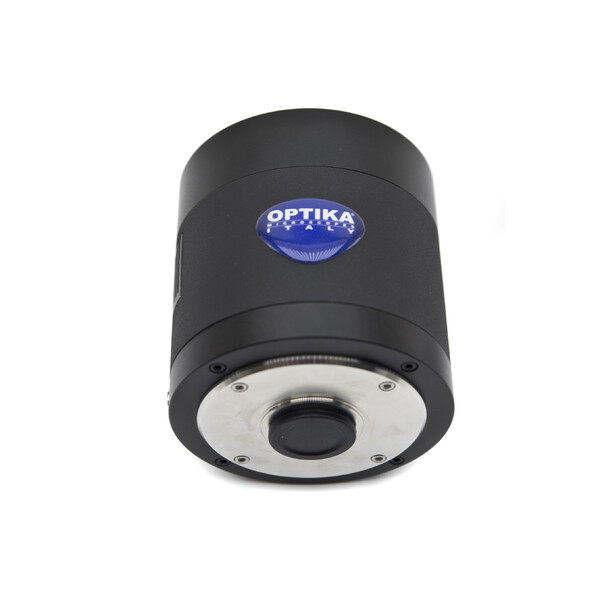

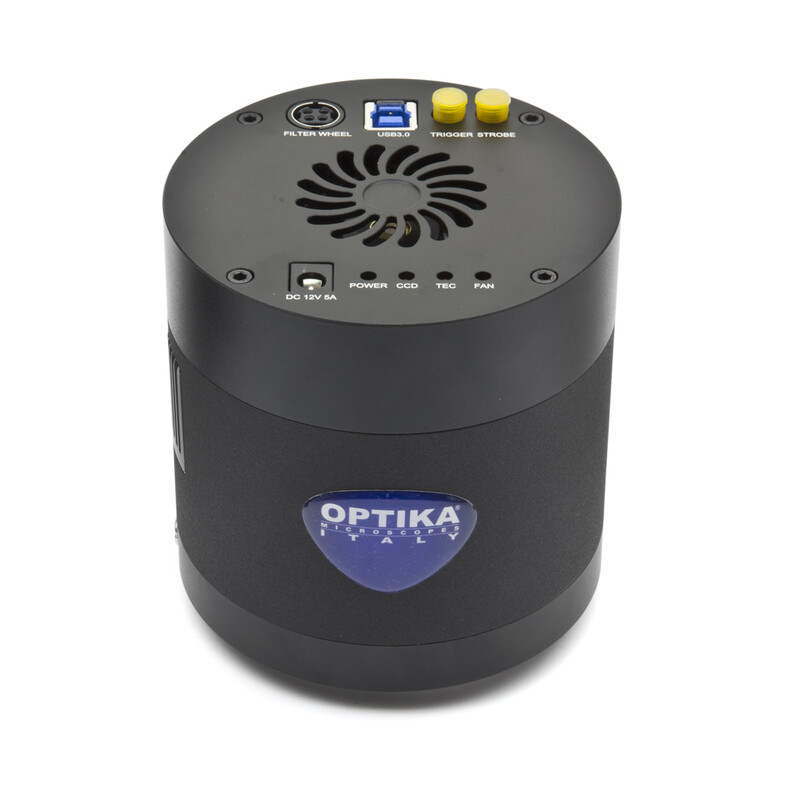

Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0

Aanbevolen prijs: $ 5.200,00 Onze prijs:
$ 4.680,00 incl.btw, + verzendkosten
Heeft u elders goedkoper gezien?
lange termijn
Niet meer beschikbaar + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Ultra-professional yet intuitive camera with high resolution, cooled large CCD sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy.

The cooling system affects sensitivity and therefore image clarity.

The compact and elegantly designed housing conceals the very latest in camera technology.

Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them.

Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately).

Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.

  • Recommended for special applications, including fluorescence
  • Simple operation, driver-free
  • Top-class, large SONY CCD sensor
  • Cooling system for enhanced sensitivity
  • Universal connection to any microscope brand
  • Crisp images
  • USB3.0 for impressive high frame rate
  • Incredibly accurate colors

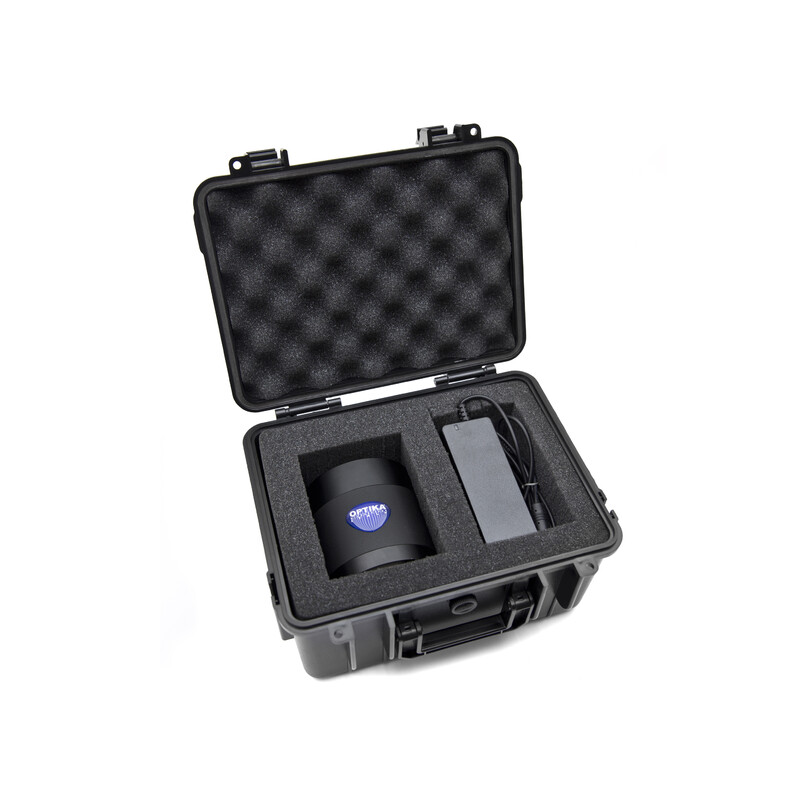

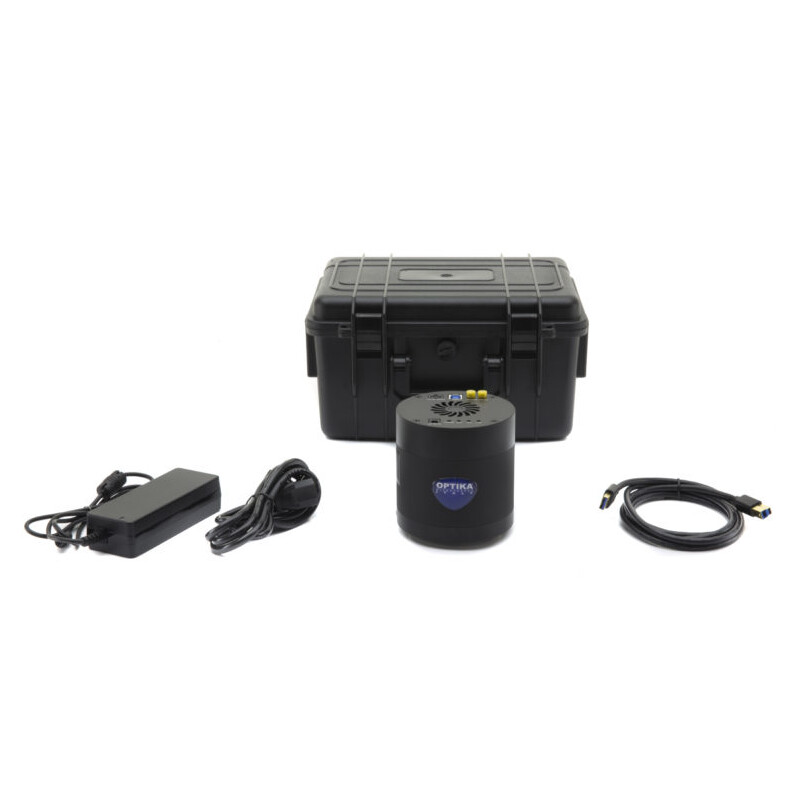

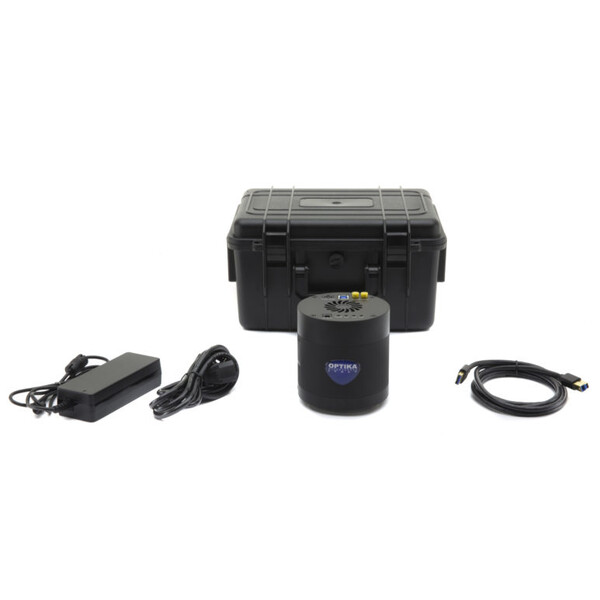

  • USB cable and calibration slide included
  • Downloadable, free of charge software
  • OPTIKA ProView & LiteView for Windows
  • OPTIKA LiteView for Mac OS or Linux

Specificaties

Capaciteit


Sensor size (mm)
2/3"
Lichtgevoeligheid (Lux)
950mV at 1/30sec
Resolutie foto
1938 x 1460
Frame rate (fps)
18@1930 x 1092

Camera


Megapixel
2.8
Peltier koeling
ja
Kleurencamera
nee
Pixel size
4.54 x 4.54
Beeldoverdracht
USB 3.0
Resolutie foto
1938 x 1460
Resolutie video
1938 x 1460
Sensor
CCD (SONY EXVIEW)
Sensor size (″)
2/3
Frame rate (fps)
15
Camera sluiter
Rolling Shutter
Min. belichtingstijd (ms)
0.05
Max. Belichtingstijd (ms)
3600
Gevoeligheid (mV/s)
0.8V@1/30s
Benodigde adapter
0.63x
Software
LiteView
Ondersteunde besturingssystemen
Win 7/8/10 Mac OS Linux

Algemeen


Kleur
zwart
Breedte (mm)
100
Hoogte (mm)
100
Gewicht (g)
500
Serie
CCD Cooled

Toepassing


Fluorescence
ja
Live
ja
Lage vergroting
nee
Hoge vergroting (100x)
ja

Diversen


Leverancier Productnummer
C-D3CM
Optika Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0
Optika Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0
Optika Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0
Optika Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0
Optika Camera D3CM Pro, Mono, 2.8 MP CCD, USB3.0
