Monteringen & toebehoren > Monteringen > Equatoriaal met GoTo > iOptron > HEM > iOptron Montering HEM44 Hybrid EQ
Artikelnummer: 77496

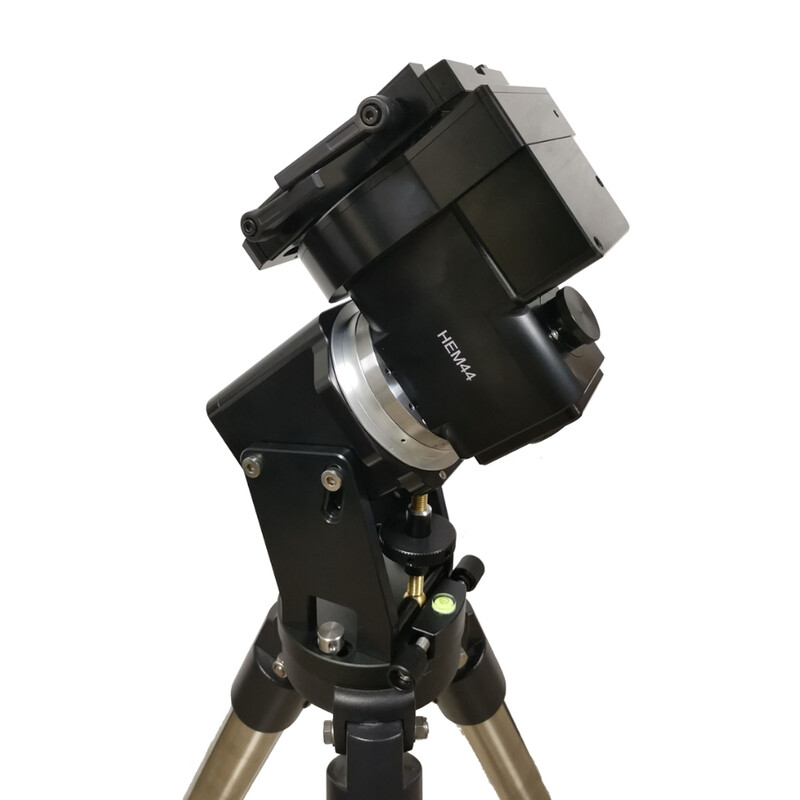

Montering HEM44 Hybrid EQ

korte termijn
Klaar voor verzending in 3-5 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

In short:

  • Load capacity of up to 20kg without counterweights
  • Built-in zero position and geolocation
  • Controllable using ASCOM & INDI drivers or on the go using iOptron Commander Lite, SkySafari and Raspberry Pi
  • Robust, durable full metal casing

Although the mount itself weighs only 6.2kg, you can mount telescopes weighing up to 20kg on this mount without the need for any counterweights.

The HEM44’s casing is made from CNC-machined metal which is not only aesthetically pleasing but also provides a robust foundation which will perform at a high level for many years.

Funitions such as an electronic brake and power-down storage enable the HEM44 to securely stop and start GoTo alignment, even after an unexpected power cut (no need for realignment and zero positioning). The mount can be controlled using a Windows PC (using the ASCOM or Commander drivers) or MacOS (using a third-party INDI driver), but also on the go using iOptron Commander Lite, SkySafari and a Raspberry Pi.

Onze deskundige opmerking:

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Please read the Quick Setup Guide (QSG) BEFORE setting up and operating the mount! Please also read the full online instruction manual for details. A HEM mount has an internal cable management system. To avoid cable damage, a mechanical stopper is implemented on the RA-axis in order to prevent rotation of more than 360 degrees. Due to the powerful torque of the strain wave gear in these mounts, damage to the stopper may occur, if

1.) “Site and Time” are incorrectly set and 2.) The mount is started from an incorrect Zero Position. Please perform these steps when initiating the HEM mount: “MENU => Zero Position => Searching Zero Position” in order to establish Zero Position. Then manually slew the mount past the meridian by 20 degrees.

Specificaties

Capaciteit


Max. Draagvermorgen (kg)
20 kg zonder contragewicht
Interfaces
WiFi & USB
Taal
Engels
Poolafstelling (°)
15-65
Montage zadel
Losmandy & Vixen
Gewicht van de montering (kg)
6,2 (mit Schiene)
Azimut fijnafstelling (°)
+/- 6
Ingangsspanning
12
Stroomsterkte (A)
5
Cable-guide
intern (2x12V 4A max., 1xUSB2.0
Encoder
nee
Materiaal declinatie-as
Aluminium
Materiaal Rechte klimming as
Aluminium
Motor type
Stepper motoren

Bijzonderheden


GoTo systeem
ja
Handcontroller
ja
Level
ja

Uitrusting


Statief
zonder statief
Transportkoffers
ja
Poolzoeker
nee
Andere continenten
Stroomvoorziening

Algemeen


Serie
HEM
Type
Montering
Ontwerp
Equatoriaal

GoTo sturing


GPS
ja
WLAN
ja
PEC correctie
ja
GoTo taal
Engels
Software
Go2Nova 8408
Autoguiding
ja
Interfaces
AutoGuider, Aux, RS232
Database
212.000
