Omegon pro Taurus GM-60 - precision now has a new name
Exclusively available from Astroshop.de

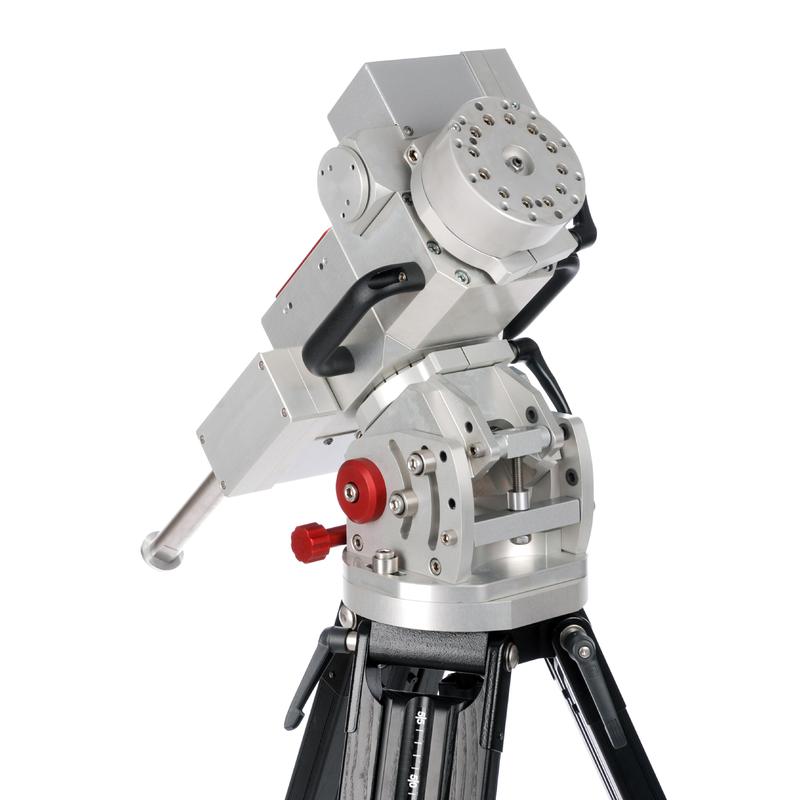

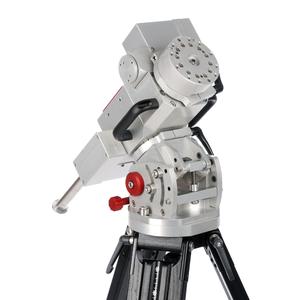

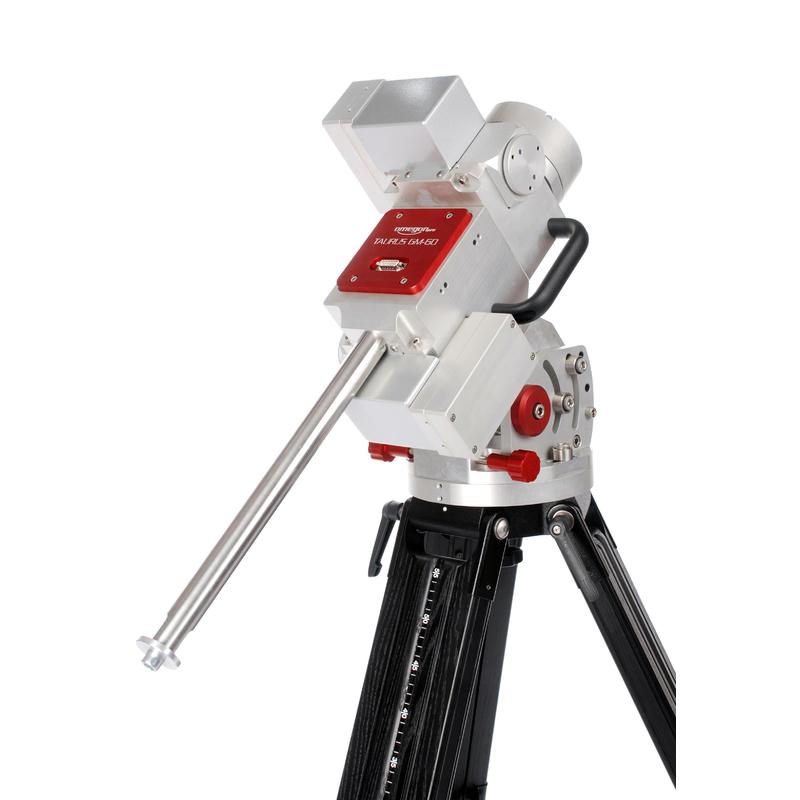

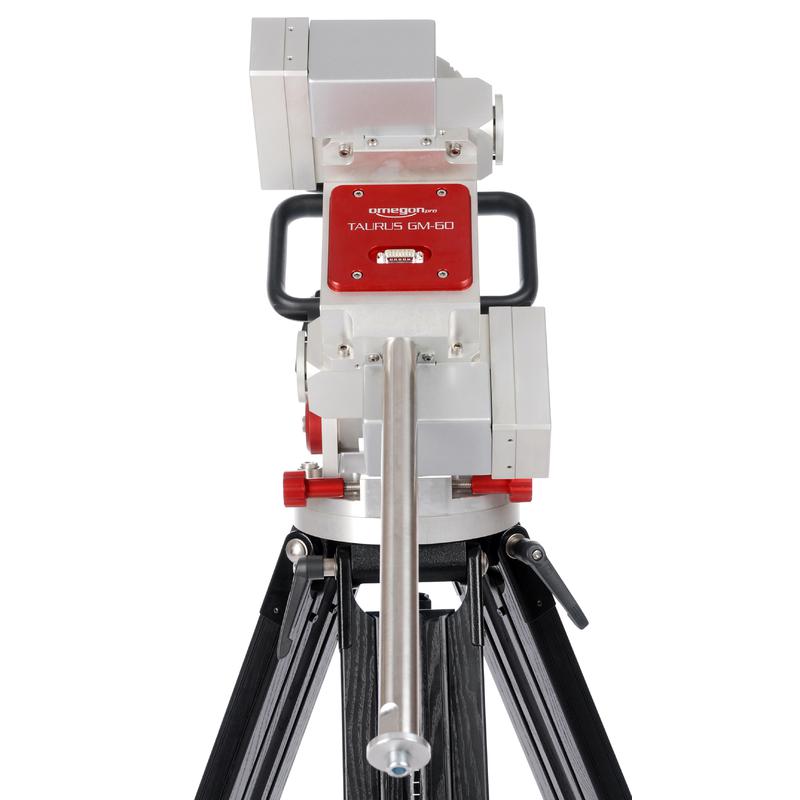

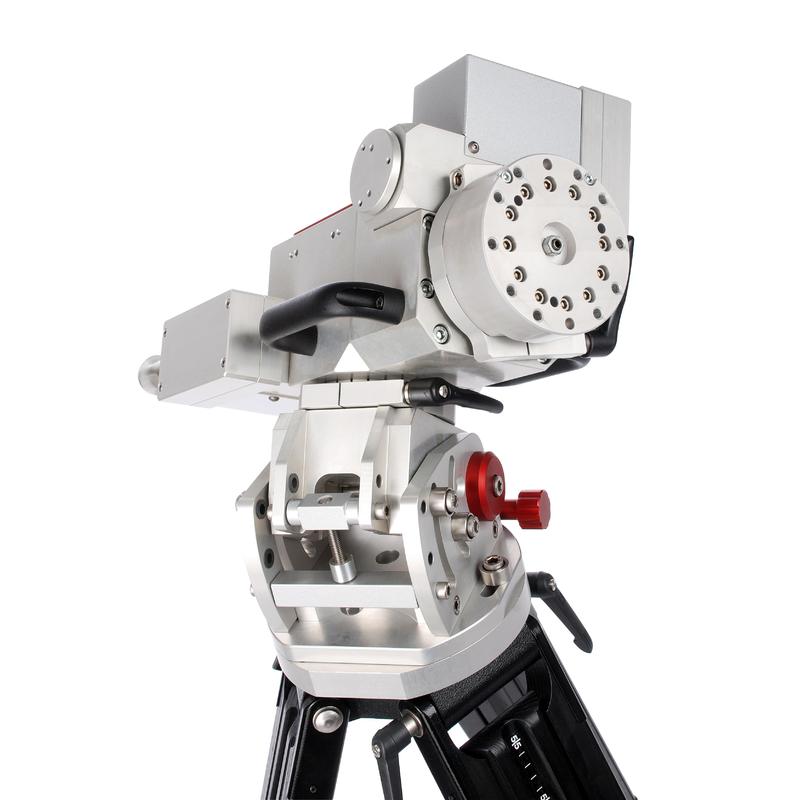

The Omegon pro Taurus GM-60 is a completely new mount - 'Made in Germany' - to the highest precision. This piece of engineering art makes your astrophotography dreams come true. Would you like to be able to say goodbye to compromises in the quality of your mount? You can do exactly that with the new Omegon pro Taurus GM-60. It offers an enormous load bearing capacity of up to 60 kg of photographic equipment and very high worm gear rotary precision (of +/- 2.5”). The Taurus GM-60 can even carry a 16” SC tube as well as associated photographic equipment. These features make this mount a 'MUST' for every ambitious amateur astronomer and astrophotographer.
Ideal basis

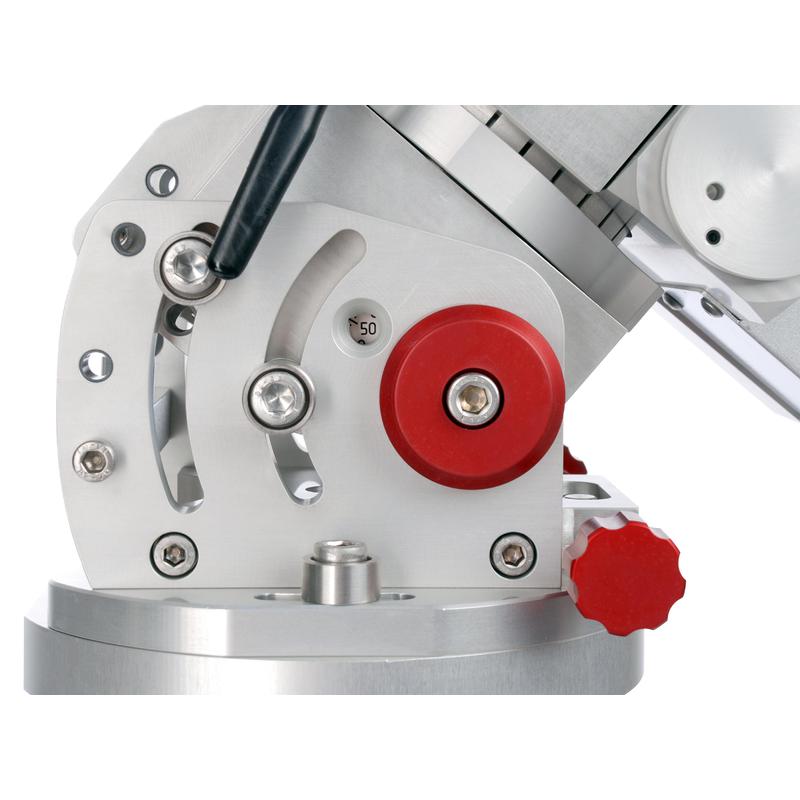

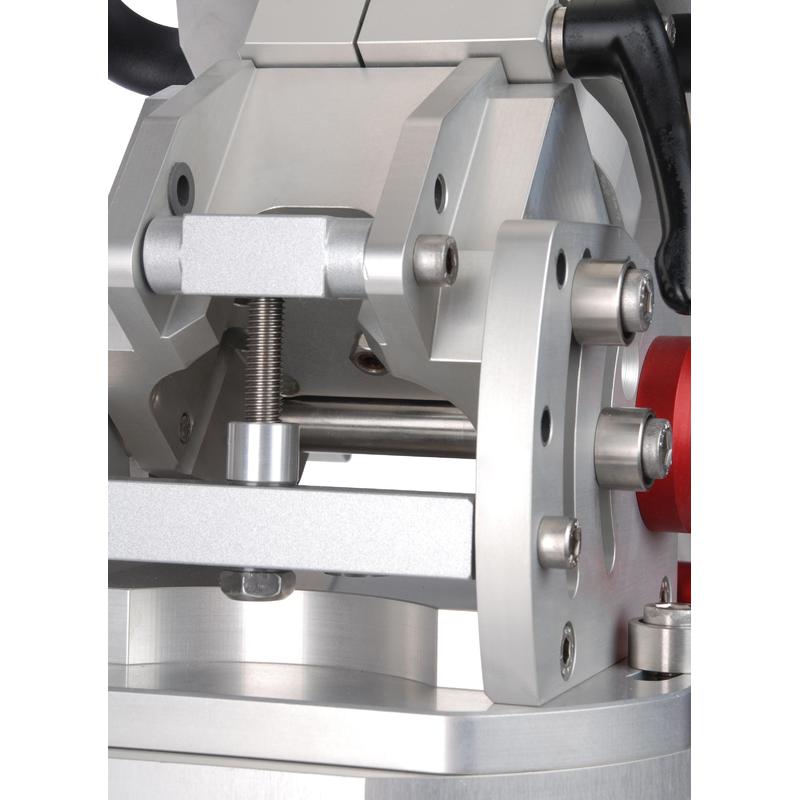

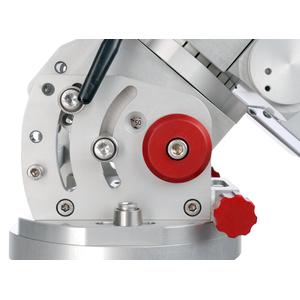

The Omegon pro Taurus GM-60 is the ideal basis for a private or club observatory. With its relatively low weight of only 32 kg it remains portable. This means you can easily transport this 'observatory mount' in a car to an observing location of your choice. All the mechanical components are manufactured from the highest quality materials. Even the drilled holes for the polar elevation adjustment are fitted with sintered bushes so no abrasion or damage can take place.
Highest stability and strength
The dimensions and design of the components guarantee the highest stability and strength. Immaculate and exact workmanship, to the closest tolerances, results in outstanding precision in the construction of this mount. The mount sets new yardsticks in tried and tested worm gear drive technology.
SECM 264 stepper motors
The SECM 264 or also the SECM 4 stepping motors and their 2X planetary gears mean clean and quiet operation. You will only hear a gentle humming noise, and that is all. The Taurus GM-60 can be run from a stabilized 12V to 40V supply. The advantage is a higher slewing speed with this mount.
Precision encoder
The precision encoders on each axis permit the most precise object positioning possible. They can find a target so accurately that it will be seen in the camera's field of view. This is what really makes astrophotography fun. Simply decide whether you want to find an object manually or with the GoTo function. Alignment will not be lost if you release the axis locks and manually move the mount in its axes.
New locking technology
The axis locks do not put any pressure on the worm gears. This is another reason for the accuracy of the mount. The locking can be finely adjusted so that it acts as a slipper clutch. Simply enjoy your observing, overtightening the locks (as happens with some other mounts) is no longer an issue. An elaborate new technology is used here in the construction of mount. The axes are held firmly in place without the need for an overly strong clamping action.
Taurus GM-60 hand control
The hand control is required for operating the mount and is designed for use with the FS-2 control system. It is also possible to adapt the hand control for use with other control systems, as long as they are compatible. There are several output connections from the FS-2 controller for encoders/motors, which are connected to a single 15 a pole D-SUB connector in the hand control - meaning cable clutter has become a thing of the past.
Multiple connectability
The mount can be optionally equipped with either a 3” prism mounting plate (Losmandy style) or with a 'basic' GP mounting plate. These then allow the telescope to be set directly onto the mount.
With a 3” prism mounting plate and a counterbalancing parallel mounting plate of 370 mm or 500 mm (this can also be made to measure) two telescopes can be mounted extremely stably next to each other. This is a very important feature for astrophotography.
The Omegon pro Taurus GM-60, together with the FS-2 control system from Astro-Electronic, is an unbeatable instrument in both price and performance. This mount paves the way for you towards successful astronomy!
Please note: Tripod, 3 "or GP receiving plate and FS-2 control are not included! We also offer a complete package with perfectly coordinated accessories.
