Microscopie > Microscopen > Staande microscopen > Fluorescence microscopen > Bresser > Science > Bresser Microscoop Science ADL 601F
Artikelnummer: 12860

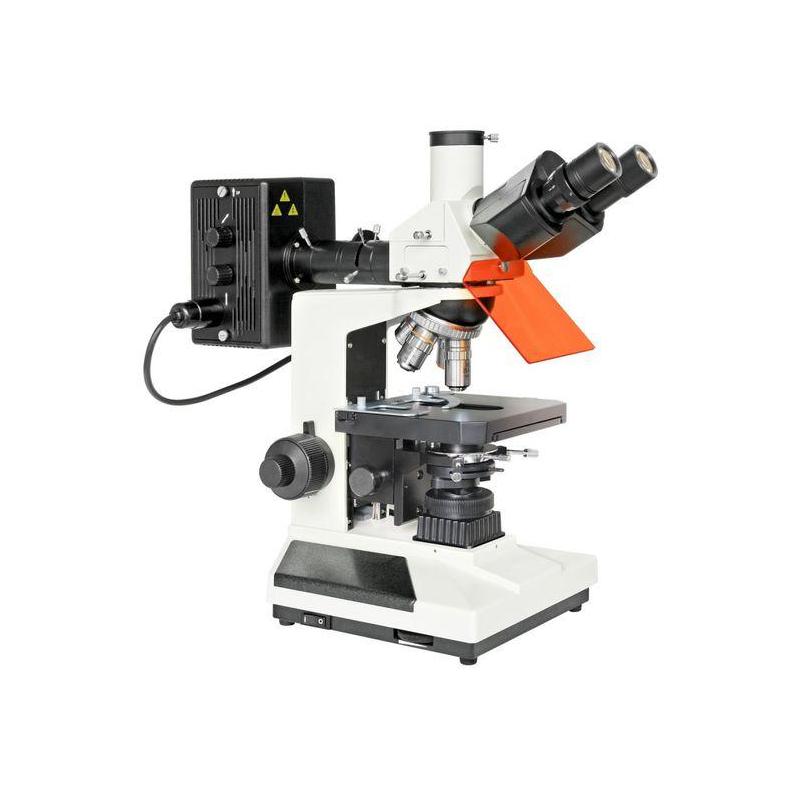

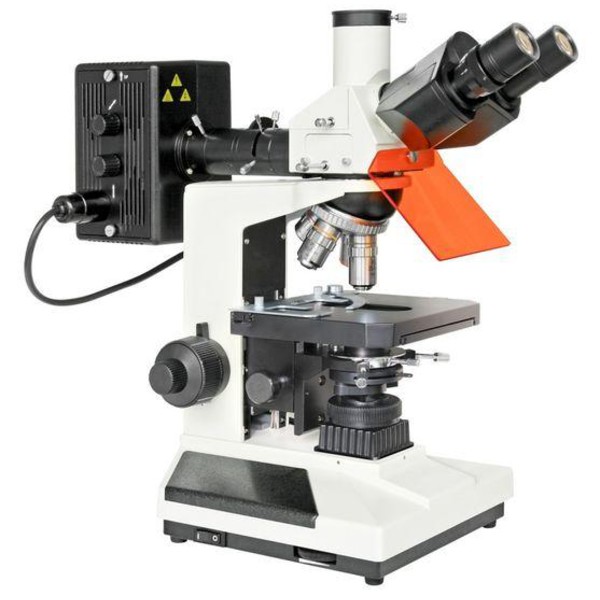

Microscoop Science ADL 601F

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

Productomschrijving

Meer over de serie Science...

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Professional fluorescence microscope

The Science ADL 601 F is the fluorescence version of the ADL 601 P.

In the microscope's basis, there are a transmitted light halogen illuminator (20 W) as well as the power supply and the continuous adjustable dimmers for reflected light and transmitted light. Both trinocular head attachments function with both illumination modes. They have also the possibilities of photography and binocular visual observation. The inclination of the eyepiece tubes is 30°.

The fluorescence attachment includes a high pressure mercury lamp (100 W) with external power supply, a filter wheel and a radiation shield. The mercury lamp produces the exciting radiation (namely ultraviolet radiation) in order to get fluorescence. Acessories, which are necessary to be chosen, are excitation systems (with excitation filter, beam splitter and emission filter; optional: green, blue, violet or ultraviolet) and fluorescence objectives (optional: 25x retractable, 40x-glycerine retractable, 100x-glycerine retractable). Fluorescence microscopy is done e. g. in biology, medicine, microchemistry, geology, semiconductor production and environmental protection. The Science ADL 601F is an instrument with an excellent value for money. It has also the other features, which are typical for high-quality microscopes: fourfold objective nosepiece, lengthwise and cross moveable stage, coaxial focusing knobs (concerning fine drive: 200 µm / full turn), adjustment of eye relief, diopter adjustment and the phototube. Optional available, general accessories are the wide field eyepieces (WF10x, WF16x), the dividing eyepiece (WF10x), different planachromatic DIN objectives (e.g. 4x, 5x, 10x, 20x, 40x retractable, 100x-oil retractable), the Abbe condenser (numerical aperture 1,25; with iris diaphragm and auxiliary lens), dark field condensers (dry and oil), immersion oil, the phase contrast set, a field diaphragm (in order to obtain Köhler illumination) and filters (blue, green, yellow, ground glass, polarization).

Specifications

  • Can also be used as a brightfield microscope
  • 4 LED wheel (green, blue, violet, ultraviolet)
  • Rotatable filter disc with excitation filter
  • Aperture for Köhler lighting
  • Planachromatic lenses: 4x, 10x, 100x, FL 40x (calibration length 45mm)
  • Infinity focus lenses
  • Dimmable transmitted lighting: 3W LED


Scope of delivery

  • Microscope
  • Eyepieces (2 pcs WF 10x)
  • Lenses (PL4x, PL10x, PL100x oil, FL40x glycerine)
  • UV illumination unit
  • Coaxial cross table with vernier adjustment
  • Immersion oil
  • Glycerol
  • Dust cover
  • Mains cable

Specificaties

Optiek


Belichting
Gereflecteerd licht en doorvallend licht
Lamp type
Halogeen
Vergroting
40-1000
Lens type
plan, achromatisch
Image scale
4,10,40,100
Oculair
10 (Wide-angle oculair)
Condensor
Abbe
Stroomvoorziening
Netstekker

Capaciteit


Fluorescence
ja
Brightfield
ja
Werkwijze contrast
Fluorescence

Mechaniek


Ontwerp
Trinocular
inzicht (°)
30° schuin zicht
Scherpstellen
Grove en fijn afstelling
Specimen stage
Kruistafel

Bijzonderheden


Geïntegreerde digitale camera
-
Centreerfase
-
Oplaadbare batterij
-
Filterhouder
ja
Luminous field diaphragm
ja
Stoftas
ja

Algemeen


Kleur
zwart - wit
Serie
Science
Geschikt vanaf
16
Gewicht (g)
11600

Geschikt voor


Beginners
-
Gevorderd
-
Professionals
ja

Werkwijze contrast


Fluorescence
ja

Toepassingsgebied


Geneeskunde
ja

Toepassing


Phase contrast
-
Polarisatie
-
Fluorescence
ja
Interference contrast
-
Metallurgie
-
Dark field
-
Mineralogie
ja
Biologie Zoölogie & Plantkunde
ja
Celcultuur
ja
