VisiLED Brightfield Ringlights - for incident lighting
Brightfield ringlights for high intensity incident light illumination with 80 or 40 white LEDs
- Ringlights S80-55 and S40-55 with minimum working distance of 55 mm for objectives up to magnification 1
- Ringlight S80-25 with working distances of 25 - 50 mm for higher magnifying objectives
Illumination system specially developed for stereo microscopy and macroscopy applications
- 4 Lightheads for brightfield illumination techniques
- 3 Brightfield ringlights for high and low brightness requirements
- 1 Transmitted light stage for brightfield applications
Easily adaptable to microscope objectives by means of thumb screw and clamp ring
- Homogenous illumination.
- Best white quality: typically 5,600 K.
- Long operating life: typically 50,000
- By actively controlling the LED’s temperature.

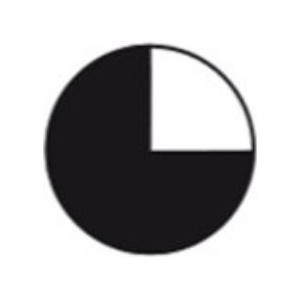

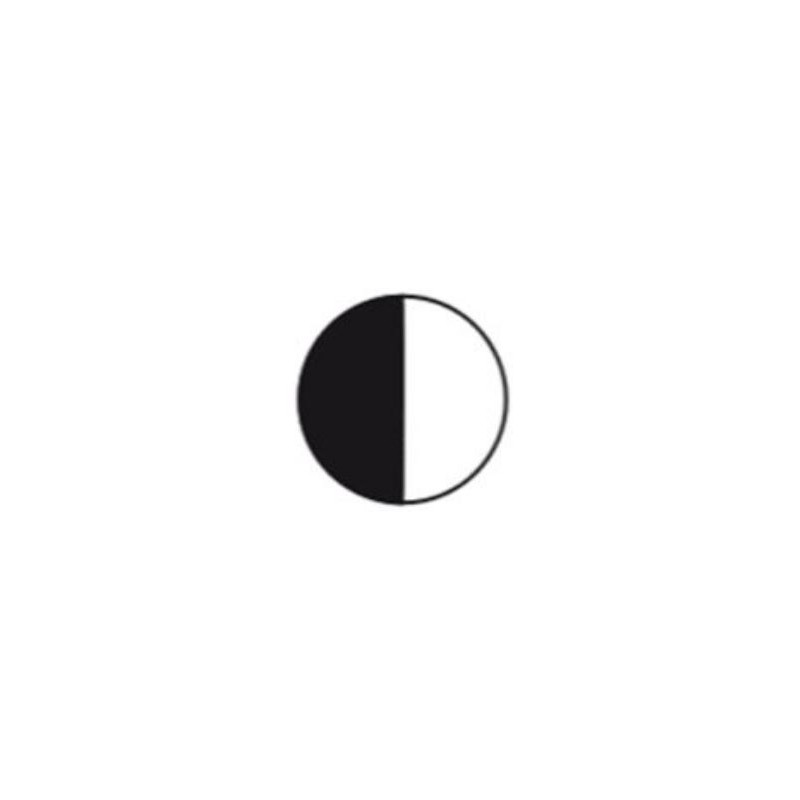

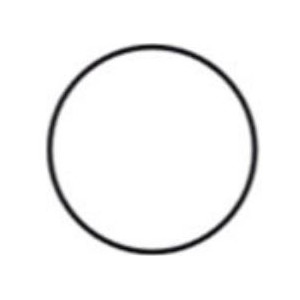

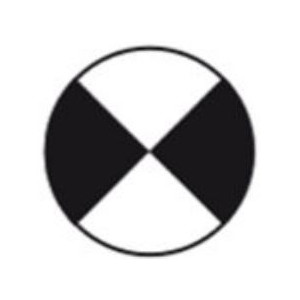

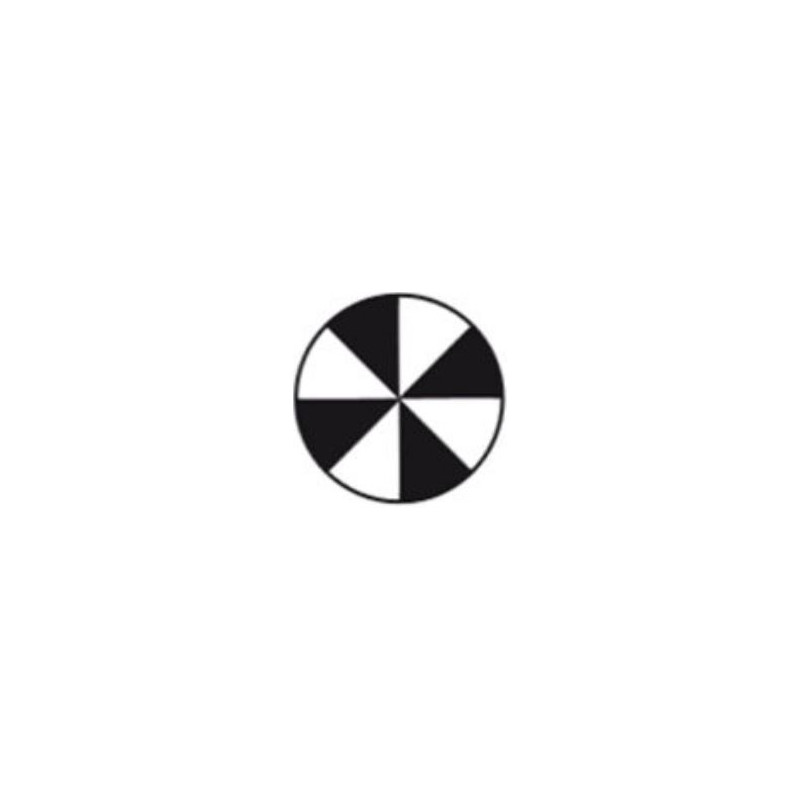

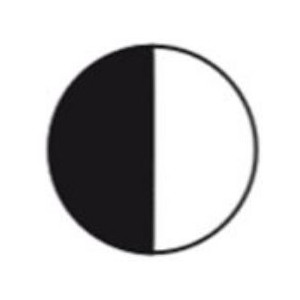

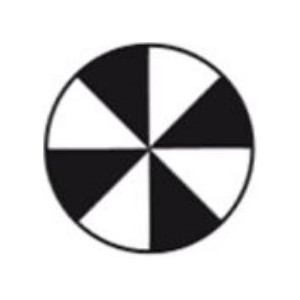

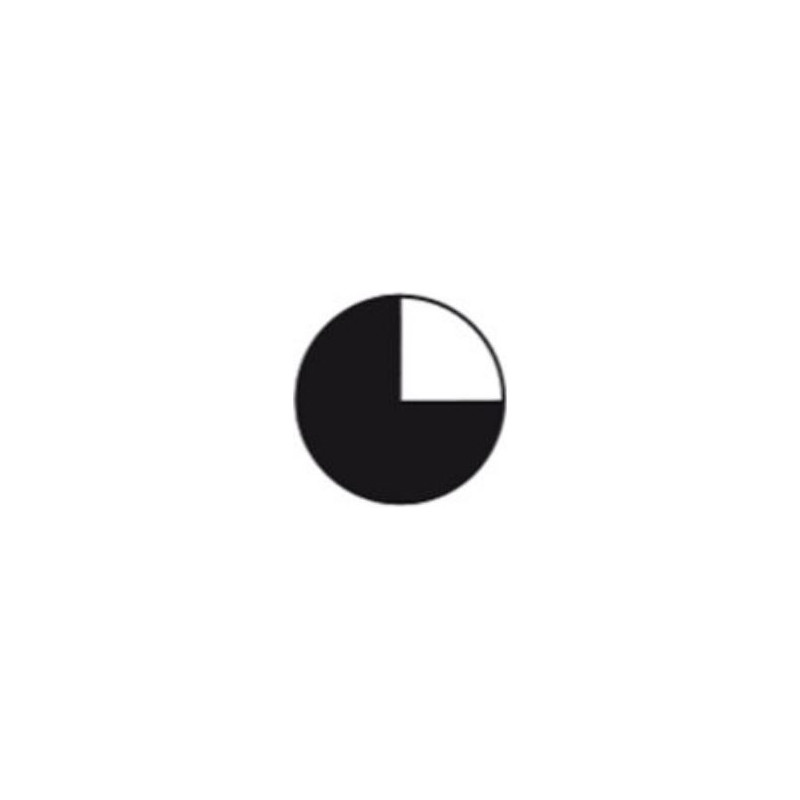

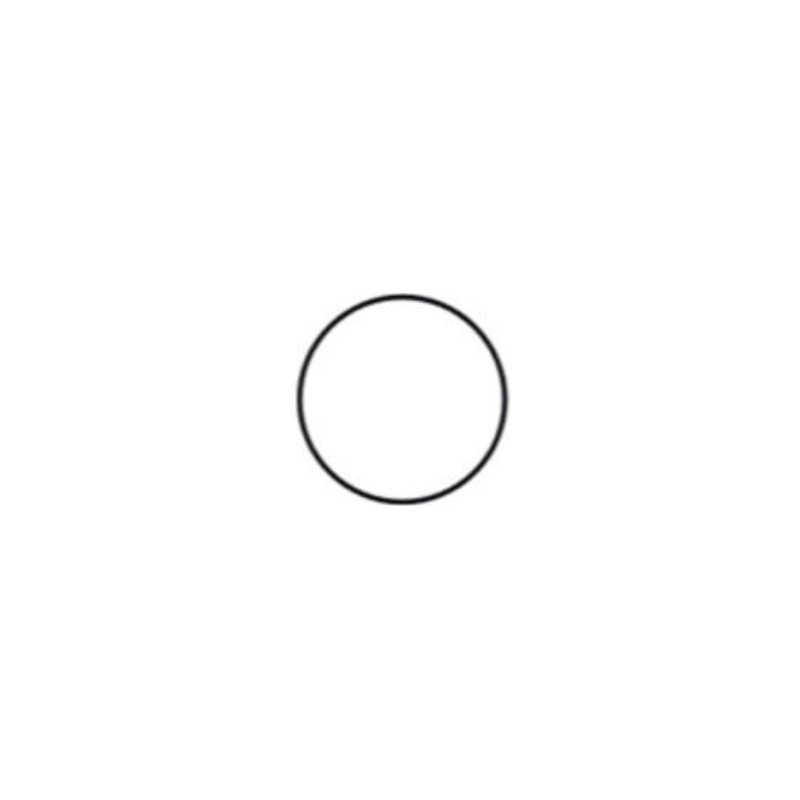

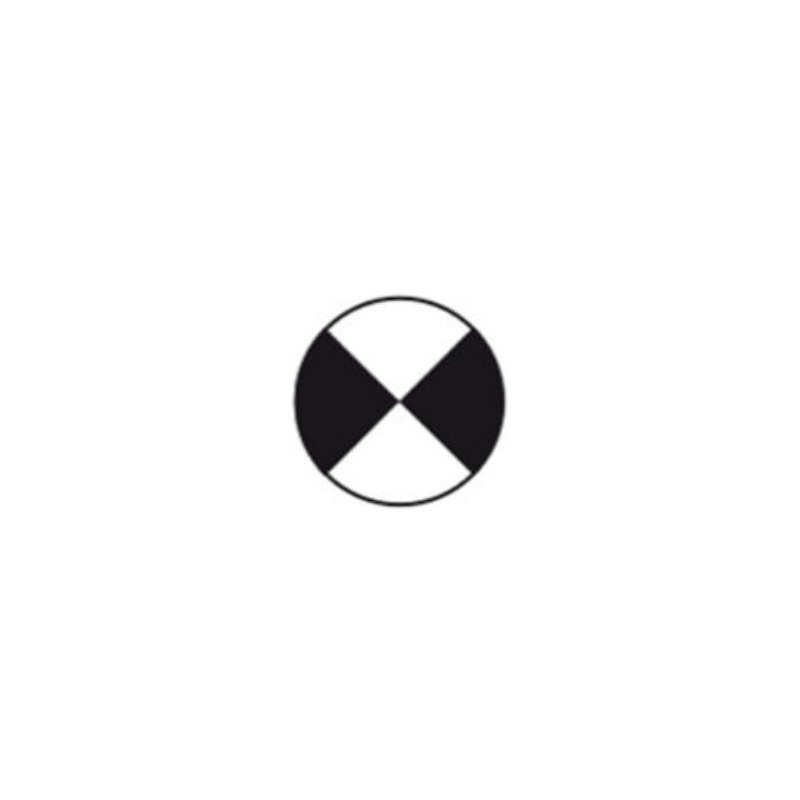

- Segments controllable in different preset modes for optimum contrasting

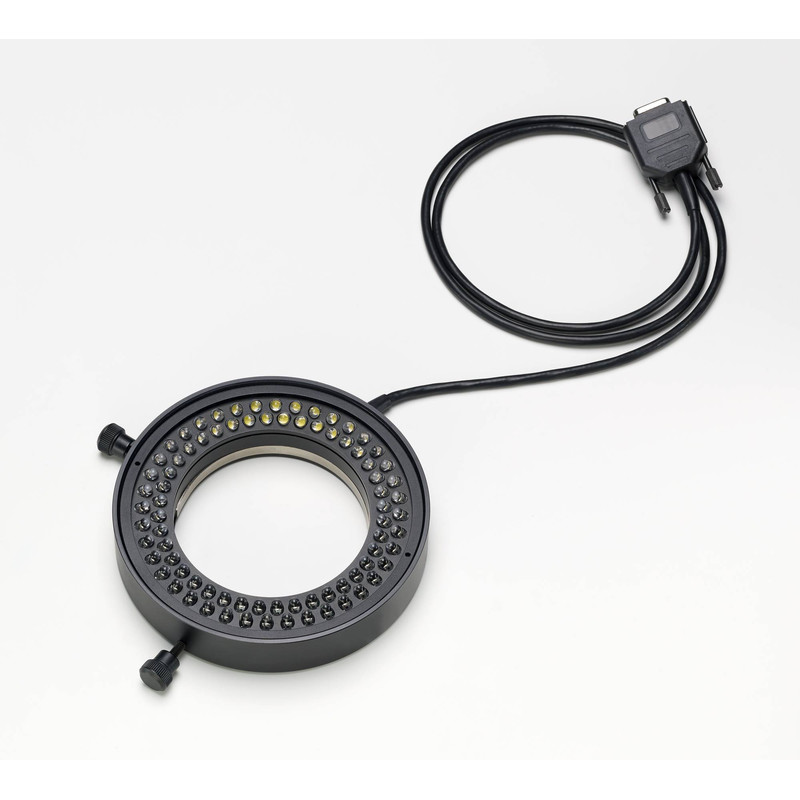

Ringlight S80-65
- Illumination Method: Brightfield
- Diodes: 80 high brightness LEDs in 8 segments
- Color Temperature: 5600K
- Working Distance: 35 mm ... 100 mm
- Max. Illuminance: 130 kLx (at 55 mm WD)
- Dimensions: outerØ: 130 mm/ innerØ: 81 mm/ height: 25 mm
