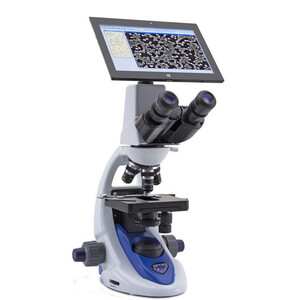

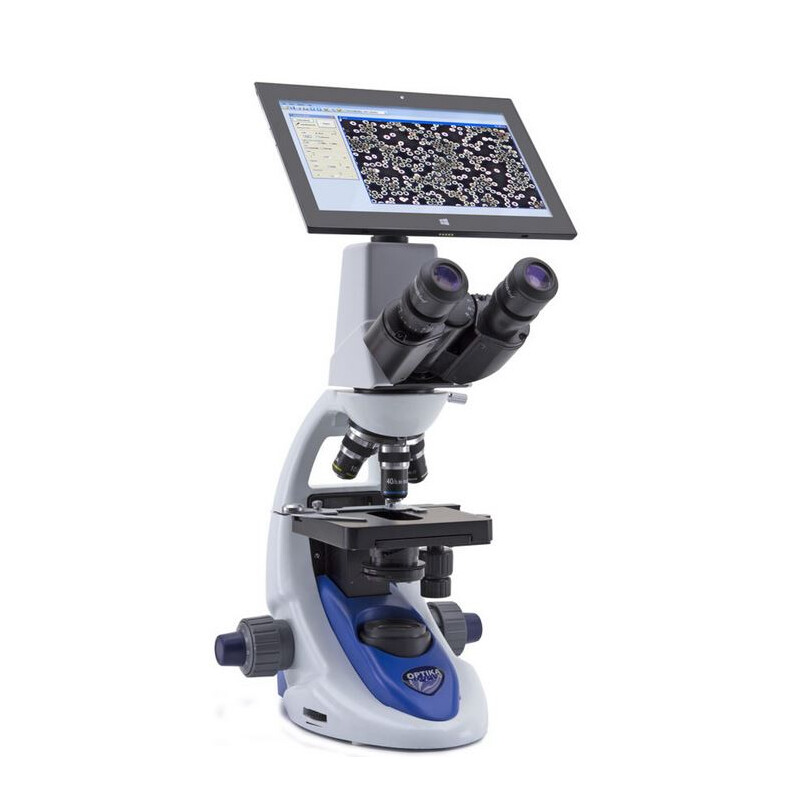

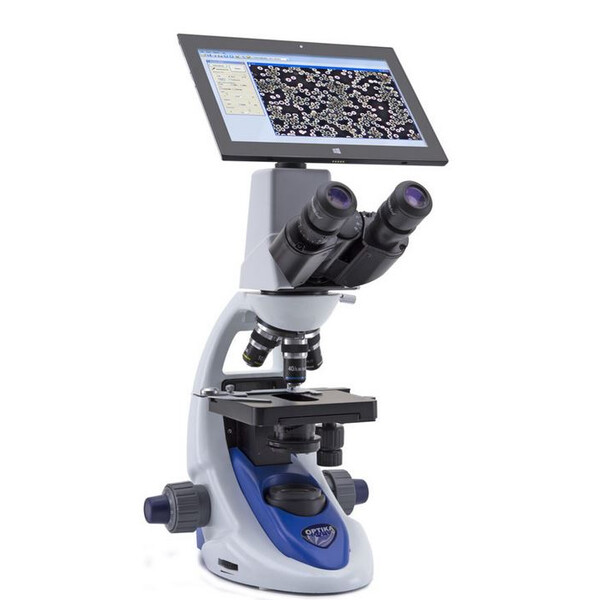

Digitale microscoop B-190TB, achromatisch, met tablet pc

Name: Optika Digitale microscoop B-190TB, achromatisch, met tablet pc
Brand: Optika
Price: 1310 USD

~~Aanbevolen prijs: $ 1.460,00~~ Onze prijs:

$ 1.310,00 incl.btw, + verzendkosten

Heeft u elders goedkoper gezien?

lange termijn
Niet meer beschikbaar + verzendtijd

Productvragen?

advies voor Microscopie

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

TECHNICAL SPECIFICATION

Optical system

The optical system has been developed for emanding users; it consists of high quality components which guarantees an high image contrast and an excellent optical resolution. The optical components have been designed and treated with special techniques to prevent the formation of moulds and fungi.

Stand

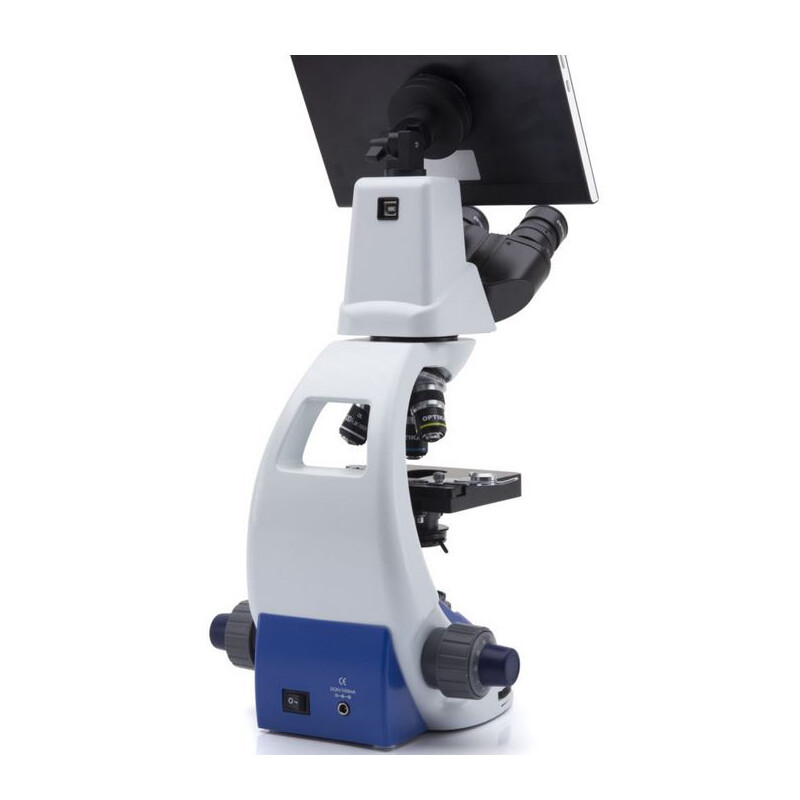

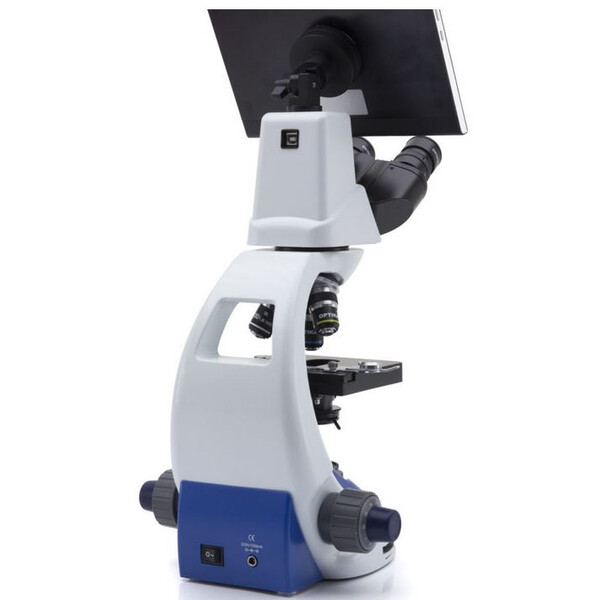

The stand has a modern and ergonomic design. It is easy to carry the microscope thanks to the large opening behind the revolving nosepiece, to be used as a handle. The opening allows the user to see clearly the objectives and the samples, as requested in discussion groups.

Mechanics:

The moving parts are made by means of machine tools with computerized numerical control reducing manufacturing tolerance and increasing the reliability of the instrument.

The strict controls on materials and production processes are optimized through the procedures established by ISO 9001:2008 quality system.

Illumination:X-LED2

The future of illumination. The X-LED2 TM powered illumination system has been developed by our R&D dept. and consists of a combination of LED and

optical technology. A high-efficiency single chip LED improved by a special optical system doubles the light intensity generated by an ordinary LED.

The resulting light is comparable to the light generated by a 30W halogen lamp but with a colour temperature of 6300K: this means a white light instead of the yellow one produced by filament lamps. The electric consumption (3W only) proves the high efficiency of this system: the same light intensity with less consumption; 10% of an ordinary 30W halogen lamp’s consumption. In addition, the lifetime of the LED is 50.000 hours instead of the 1.500 hours of an ordinary halogen lamp..

Specification

Model: Binocular with double layer stage, objectives 4x 10x 40x 100x
Head: Binocular Digital observation head, inclined 30° and rotatable 360°.

Diopter adjustment on left eyepieces.

Interpupillary adjustment 48-75 mm.

Eyepieces: Widefield 10x18mm
Observation Modes: Brightfield
Eyepieces: Widefield eyepieces WF10X/18 with field number 18mm.
Nosepiece: Quadruple revolving nosepiece, rotation on ball bearings.
Objectives: Achromatic objectives with mechanical tube lenght 160 mm, made by following objectives:

Achromatic DIN 4X, A.N. 0.10, W.D. 18 mm

Achromatic DIN 10X, A.N. 0.25, W.D. 7 mm

Achromatic DIN 40X, A.N. 0.65, W.D. 0,53 mm

Achromatic DIN 100X, A.N. 1,25, W.D. 0,13 mm (oil immersion)

ll objectives are treated with an anti-fungus treatment.

Stage: Double layer with mechanical sliding stage, size 125x115mm, X-Y movement range 70x30, specimen holder for one slide. Vernier scale on the two axes, accuracy 0,1 mm.

B-290TB

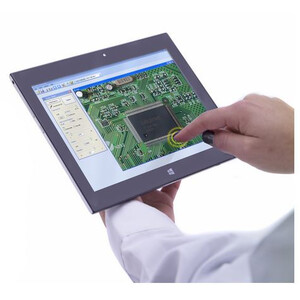

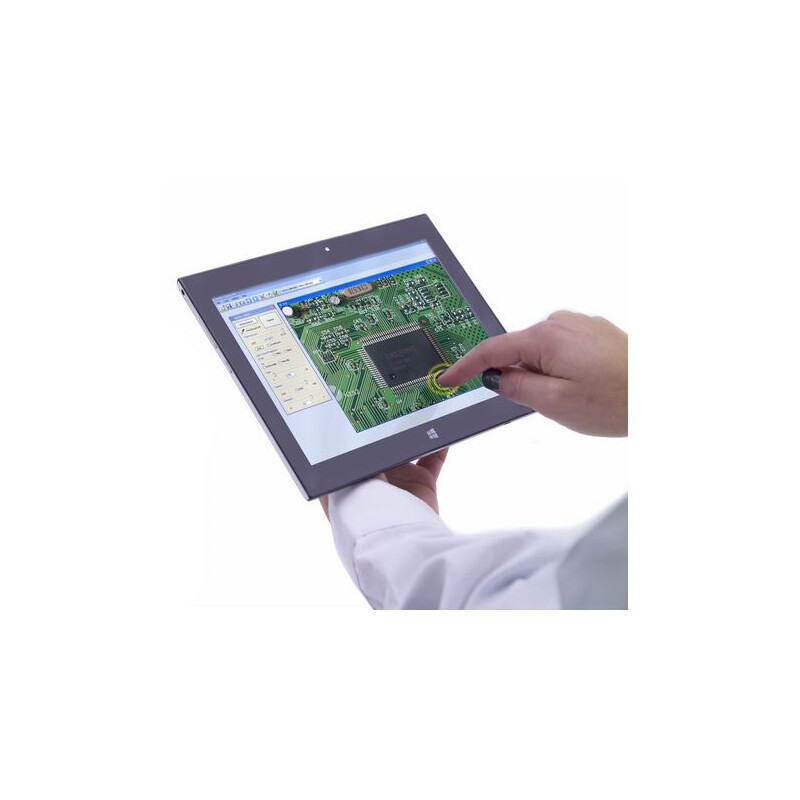

The tablet can be rotated in all directions on the microscope. This makes it especially well-suited for demonstration purposes
The tablet can easily be removed from the microscope.
The system is patent pending.

Camera:

Camera resolution: 3.14 megapixels
Signal output: USB 2.0
Sensor size: 1/2.5"
Sensor technology: CMOS
Image format: 4/3 full-frame format
Image size: 2048x1536
No additional drivers required (Microsoft drivers installed)
Image capture: Continuous autonomous image creation, compressed video capture
Controlled parameters: Magnitude, degree of amplification, exposure time, colour enhancement
Full resolution frame rate (fps) 8@1280x1024
Other resolution frame rate (fps) 30@640x480
Sensitivity 0.53 V/lux-second
Signal/noise ratio (DB) 40.5
Dynamic range (DB) 66.5
ADC conversion 12 Bit
Color Depth 8 Bit
Exposure time … - 1.5 sec
Binning 1x1
IR filter Yes
IR filter range (nm) 680
Camera Power PC USB
C-Mount Yes
