Fotostatieven > Statieven > van hout > Berlebach > Report > Berlebach Report model 242/P houten driebeenstatief
Artikelnummer: 8063

Report model 242/P houten driebeenstatief

lange termijn
Niet meer beschikbaar + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

The Modular Report Tripod System: The light magnesium mounting head serves as module basis for 10 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.
Thanks to the new stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.

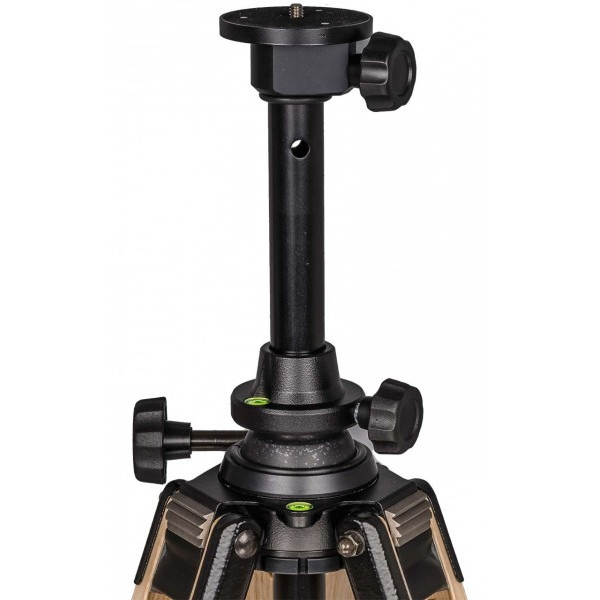

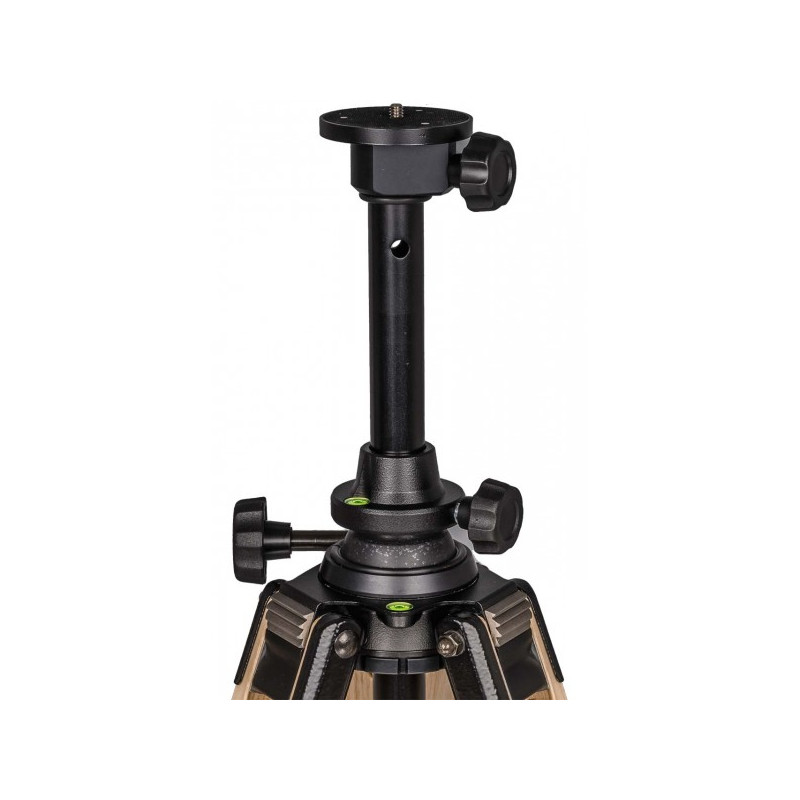

The tripod is equipped with the module insert 4, i.e. with a centre column which has a length of 50cm and a diameter of 25mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment.

When using an extra-short centre column (10cm), it is possible to work near ground level.

The specified maximum height applies if the centre column with a length of 50cm is extended.

Specificaties

Capaciteit


Ontwerp
Statief
Max. statief hoogte (cm)
173
Draagvermogen (kg)
12
Transportlengte (cm)
81
Verbindingsdraad Statiefkop
1/4
Type
Camera en video statief
Aantal levels
1
Uitlijning van statief verlenging
Twist lock
Statief voet
Rubberen voet (Kunststof)
Maat accessoire houder (cm)
-
Statiefpoot verlenging
1
Materiaal
Hout

Bijzonderheden


Bediening met één hand
ja
Statiefkop inbegrepen
nee
Draagtas inbegrepen
-
Geïntegreerde wedge
-
Panorama schaal
ja
Accessoire houder
-
Centrale kolom
ja
Quick-release plaat
-

Algemeen


Gewicht (kg)
3,1
Serie
Report
Kleur
Natuur
Lengte (cm)
-
Breedte (cm)
-
Hoogte (cm)
55 - 173
