Artikelnummer: 56392

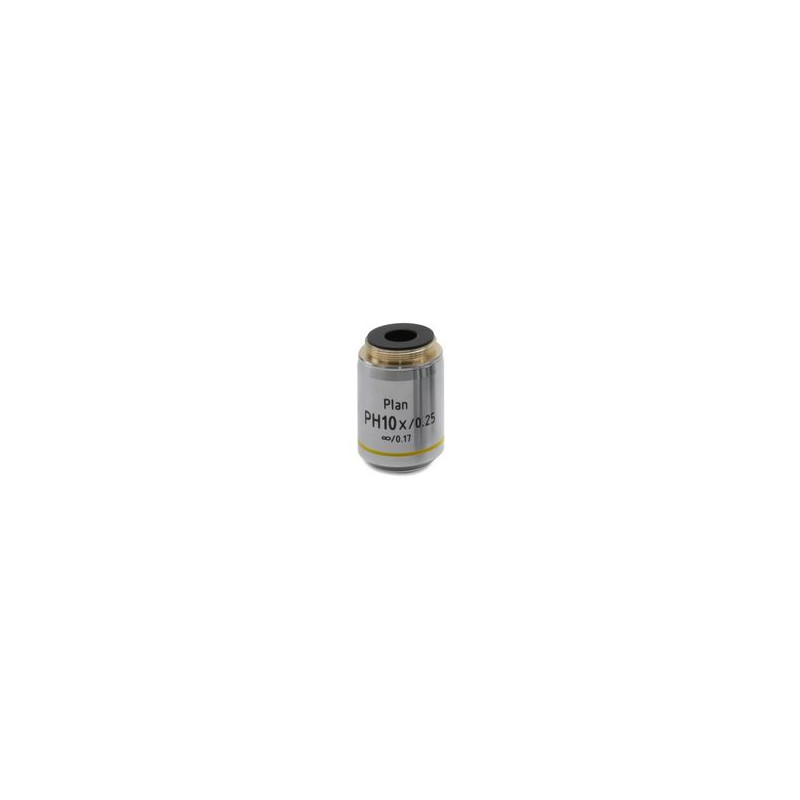

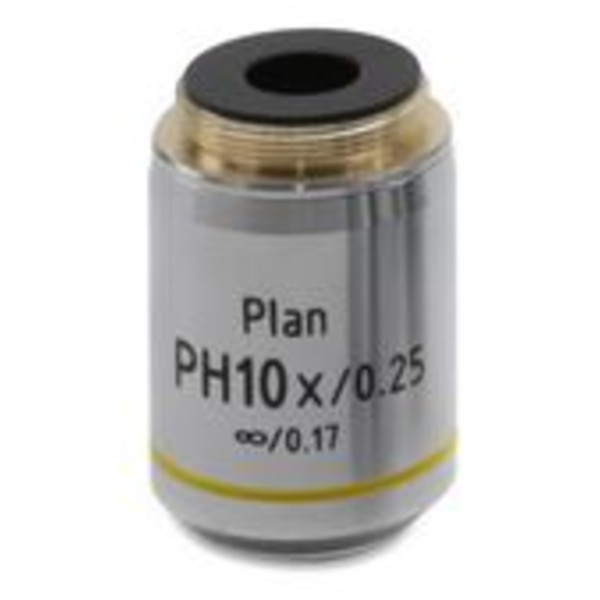

Objectief M-1120.N, IOS W-PLAN PH 10x/0,25

lange termijn
Klaar voor verzending in 6-10 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Model: IOS Phase Contrast Planachromatic

Description: Objectives for brightfield, darkfield and phase contrast observation

  • Magnification / Numerical Aperture

• 10X / 0,25 (M-1120.N)

• 20X / 0,40 (M-1121.N)

• 40X / 0,65 (M-1122.N)

• 100X / 1,25 (oil immersion) (M-1123.N)

  • Optical Correction Negative Phase Contrast.
  • Flat field correction for 22mm F.N., planachromatic spherical and chromatic corrections.
  • Mechanical tube length IOS (infinity-corrected tube length)
  • Cover Glass Thickness 0.17 mm
  • Working Distance • 10X W.D. 10mm

• 20X W.D. 5.1mm

• 40X W.D. 0.54mm (spring-loaded)

• 100X W.D. 0.13mm (spring-loaded)

  • Screw Thread RMS Standard
  • Parfocal Distance 45 mm

IOS W-PLAN PH (Plan Achromatic) objectives deliver outstanding performance in phase contrast technique, providing a great contrast generally equired in high-level education and routine laboratory needs. These phase contrast objectives are designed to ensure field flatness up to F.N. 22, based on infinity-corrected optical system.

IOS W-PLAN PH objectives are designed for B-380, B-510 and upright modular systems with phase contrast, and infinity-corrected optical

system.

Specificaties

Optiek


Vergroting
10
Optisch systeem
oneindig
Oneindig gecorrigeerd
ja
Kleurcorrectie
achromatisch
Cover glas correctie
ja

Capaciteit


Numerieke lensopening
0.25
Vergroting
10x

Mechaniek


Werkafstand (mm)
3.71

Algemeen


Serie
IOS W-Plan PH

Past op de serie


B-1000
ja
B-380
ja
B-510
ja
Optika Objectief M-1120.N, IOS W-PLAN PH  10x/0,25
