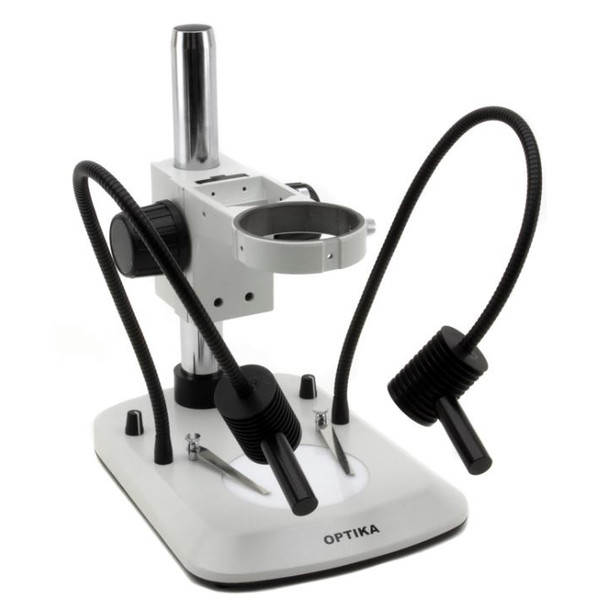

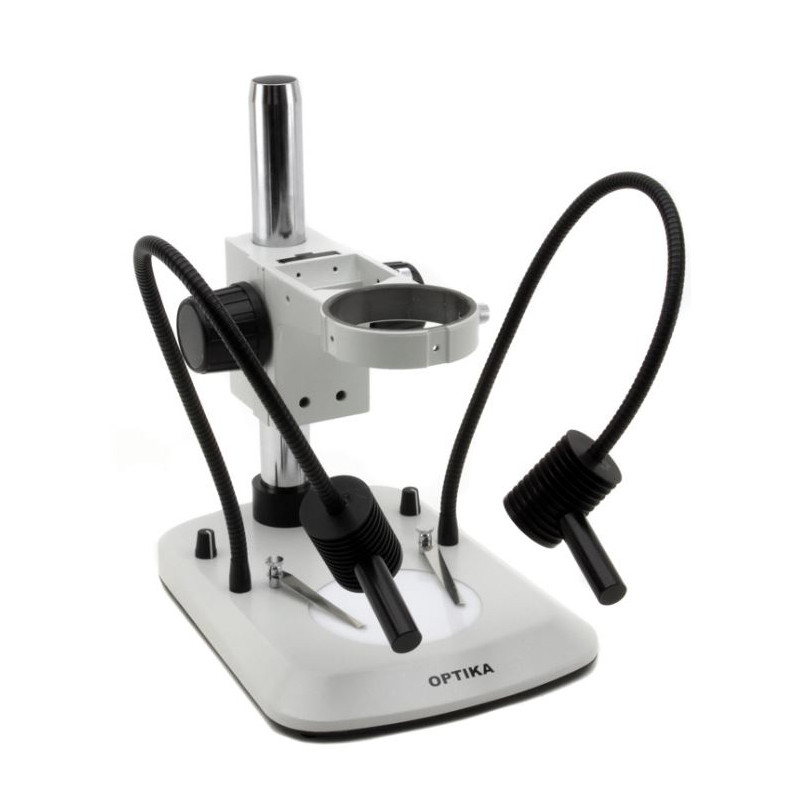

Stand for Modular Stereomocroscopes SZ-STL8
- IlluminationTransmitted illumination:
High brightness LED disc. Uniform illumination over 100 mm diameter. Light intensity control using a knob on the base. Intensity: 5000 lux. Color temperature: 6300K.
High intensity X-LED on each arm. Light intensity control using a knob on the base. Intensity: 80000 lux. Color temperature: 6300K.
LED average life time approx. 50000h. Input voltage: 110/240Vac, 50/60Hz (external power supply provided). Max. power required: 18W.
- Focusing: By means of a rack and pinion controlled by a pair of knobs placed on both sides of the head holder. Tension of focusing can be adjusted. The head holder can slide along the pillar.
- Dimensions: Base: L. 270mm; W. 210mm; H. 30mm. Pillar: Height 315 mm; diameter 32mm. Weight: 3,8 kg
