Astrofotografie > Camera's > Astro-Camera's > Starlight Xpress > Oculus > Starlight Xpress Camera Oculus PRO All Sky 180° Mono
Artikelnummer: 86391

Camera Oculus PRO All Sky 180° Mono

korte termijn
Klaar voor verzending in 1-2 weken + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Oculus is the new standard for monitoring the sky: So you will always have the weather, meteors and fireballs in view - also ideal for remote observatories!

A CCD sensor from Sony is used in this camera, which features low dark noise and a very fast electronic shutter. The fish eye lens has a fast focal ratio of f2 and a full 180° field of view from horizon to horizon. This creates dreamlike images of the night sky!

Some features:

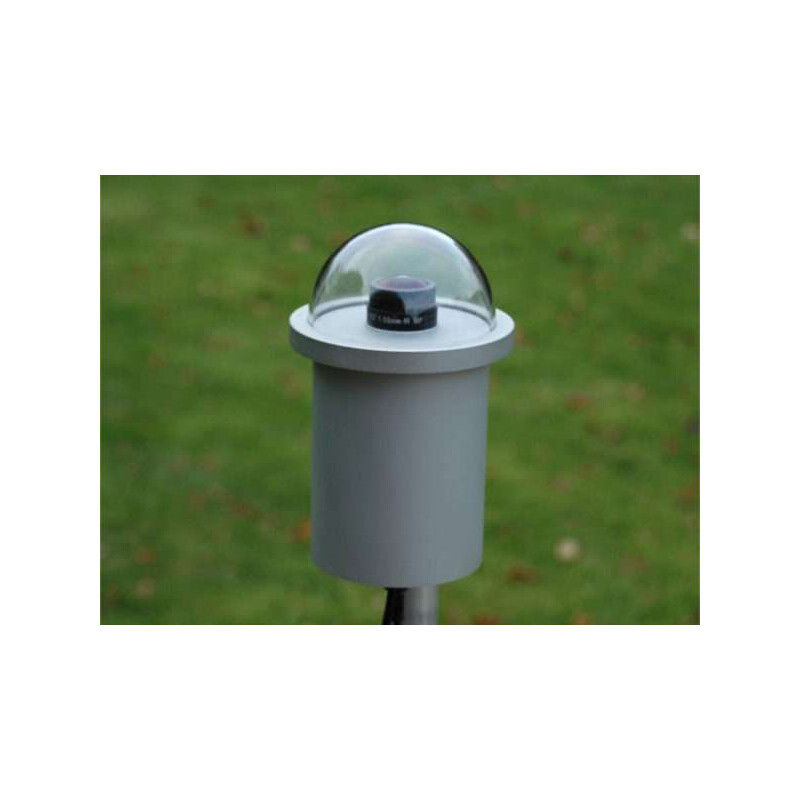

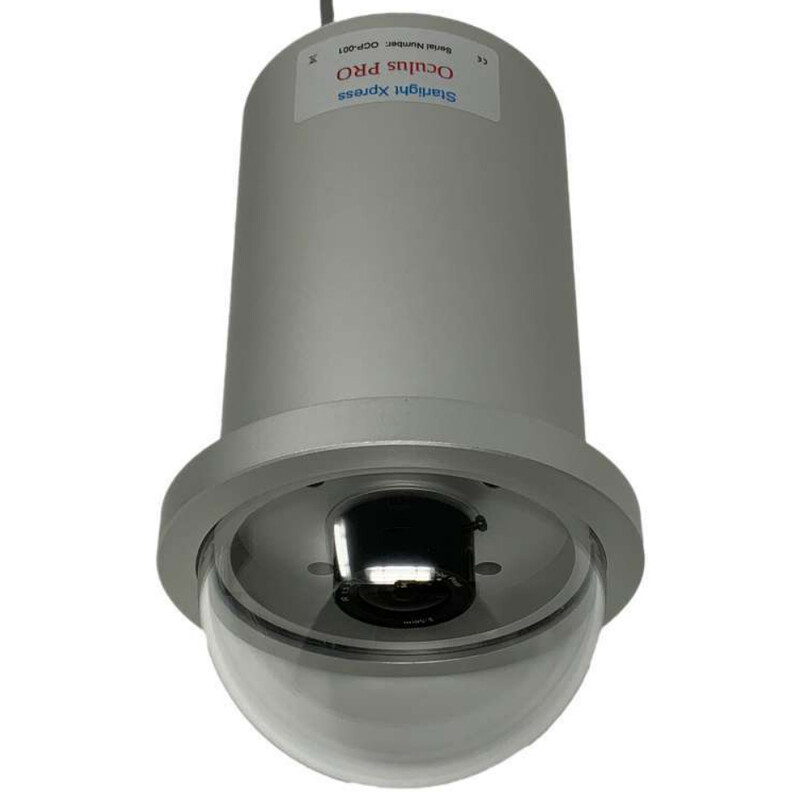

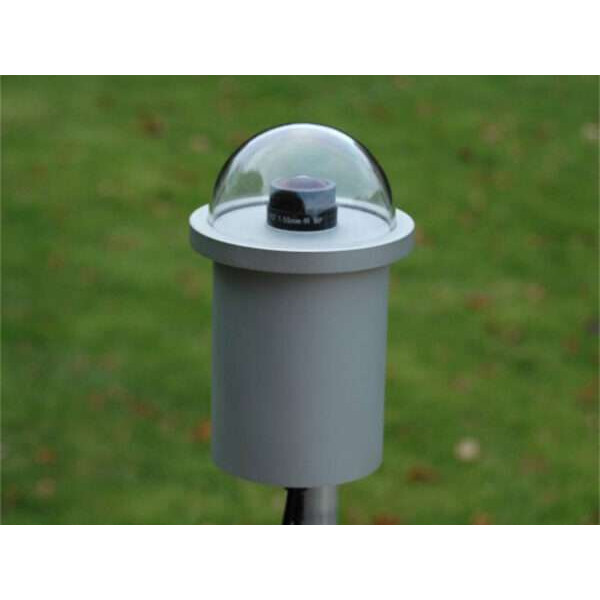

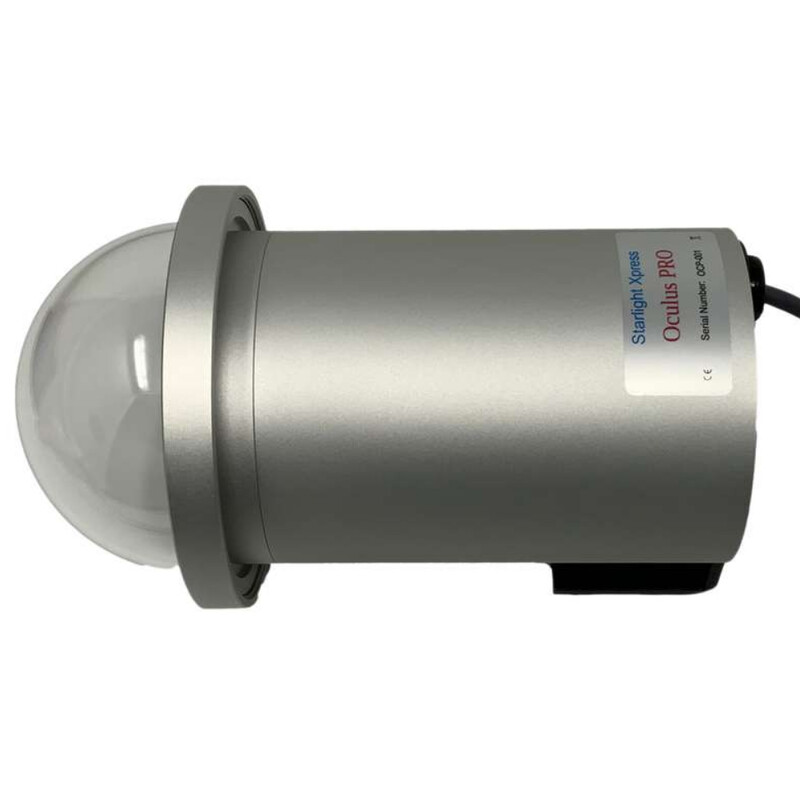

  • The camera is housed under a small polycarbonate dome, so making it weatherproof. The position of the camera under the highly polished dome was chosen so that any distortions are minimized. An L-mounting plate with 1/4 inch tripod mount comes included in delivery. The plate also allows the camera to be mounted onto a building or an observatory.

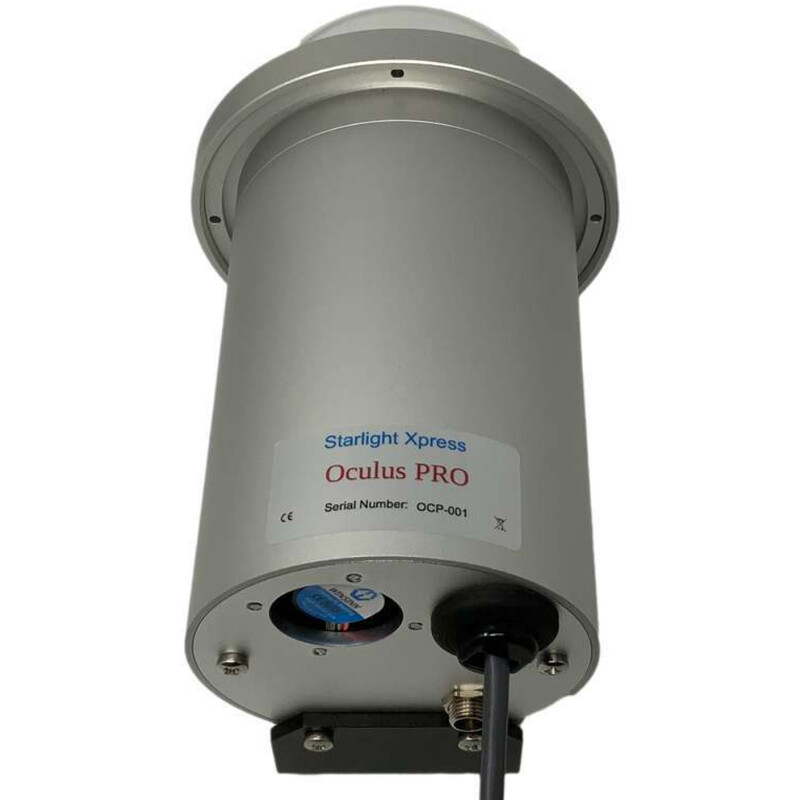

  • The Oculus camera is supplied with power via an USB connection, as is common with other astronomy CCD cameras. It also has a 12V connector for the built.in heater which protects the camera from dew forming.
  • The software included lets you take a series of images which can then be combined into an AVI video to show the events of the night.

Starlight Xpress even exclusively uses grade 1 quality or better CCD chips for this camera!

Specificaties

Capaciteit


Sensor type
CCD-sensor (Sony ICX825AL)
Megapixel
1,4
Resolutie foto
1392 x 1040
Resolutie video
1392 x 1040
Pixel size
6,45
Sensor size (mm)
8,89 x 6,71
Antiblooming
ja
Leesruis
3,5
Full Well Capacity
23000
Dark current
0,1
Bit depth (Bit)
16
Interfaces
USB 2.0
Stroomvoorziening
12
Stroomverbruik (mA)
1000
Kleurencamera
nee
Quantum efficiency
75% @580nm, 50% @400, 50% @770
Actieve koeling
ja

Uitrusting


Filterwiel
nee

Algemeen


Type
Camera
Ontwerp
Astro-Camera's
Serie
Oculus
Diameter (mm)
95
Hoogte (mm)
150

Toepassing


Autoguider
nee
AllSky, Meteore
ja
Maan & Planeten
nee
Nevels & sterrenstelsels
nee

Productveiligheid

Fabrikant: Starlight Xpress Ltd., Unit 3, Brooklands Farm Business Park, Bottle Lane, Binfield, RG42 5QX Berks, http://www.starlight-xpress.co.uk/
Verantwoordelijke persoon: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Aanbevolen accessoires

Filters (2)
Blocking filters

Omegon Blocking filters 1.25'' UV/IR cut-off filter

$ 79,00*
Spectroscopie & fotometer (1)
Spectroscoop

Paton Hawksley Spectroscoop Star Analyser 100

$ 210,00*

*Alle prijzen zijn inclusief BTW + verzendkosten.

Starlight Xpress Camera Oculus PRO All Sky 180° Mono

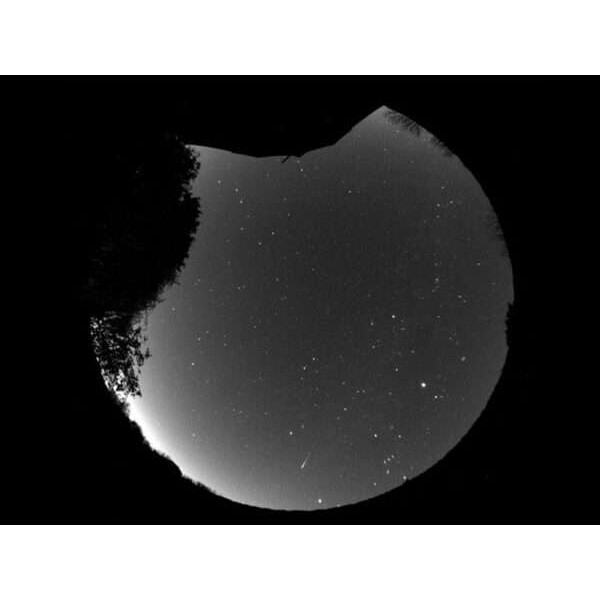

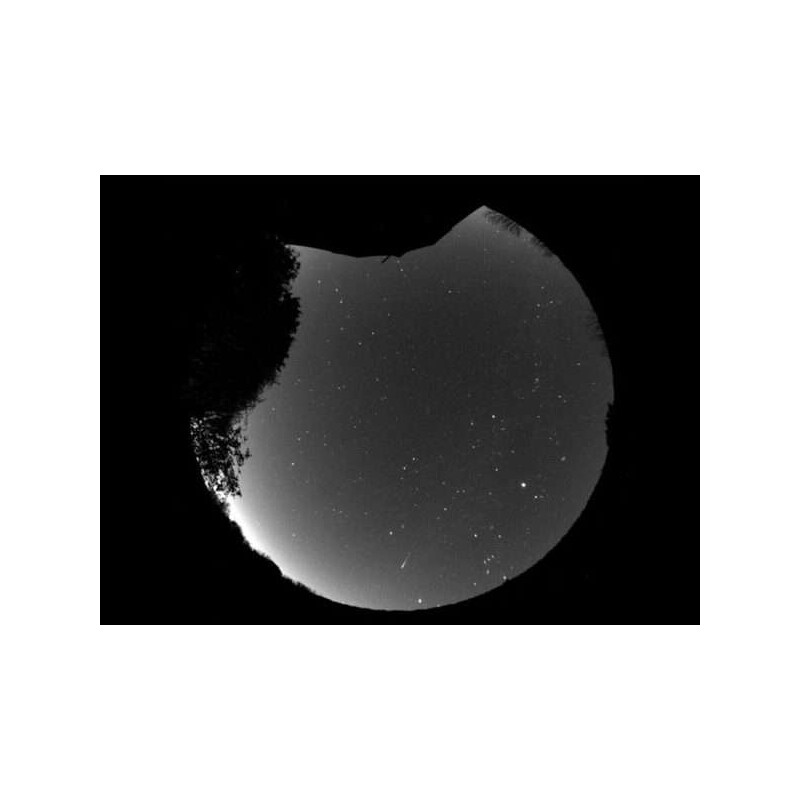

Voorbeeld

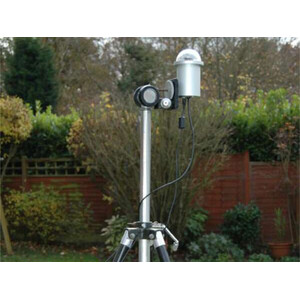

Starlight Xpress Camera Oculus PRO All Sky 180° Mono

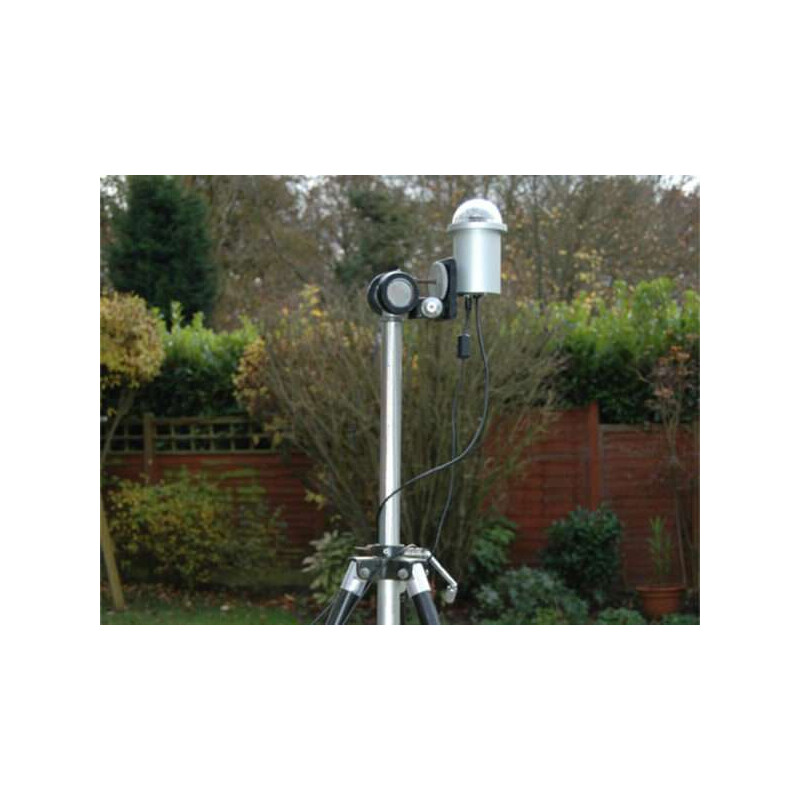

Toepassingsvoorbeeld
