Astrofotografie > Camera's > Astro-Camera's > ZWO > ASI 1600 > ZWO Camera ASI 1600 GT Mono
Artikelnummer: 63777

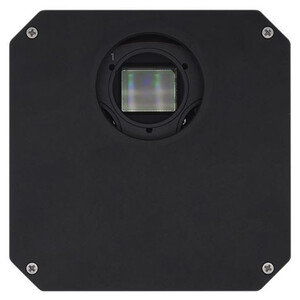

Camera ASI 1600 GT Mono

Aanbevolen prijs: $ 2.570,00 Onze prijs:
$ 2.350,00 incl.btw, + verzendkosten
Heeft u elders goedkoper gezien?
lange termijn
Niet meer beschikbaar + verzendtijd

Productomschrijving

Helaas is deze beschrijving nog niet in het Nederlands vertaald. U vindt hier dus een Engelse artikelbeschrijving.

Cooled mono camera with internal 5x1.25" electronic filter wheel - for demanding astrophotographers!

The ZWO ASI GT camera range includes all the great features and performance of the original ZWO ASI Pro series, but now with an integrated 5x1.25" ultra-quiet electronic filter wheels as well as 12V power distribution!

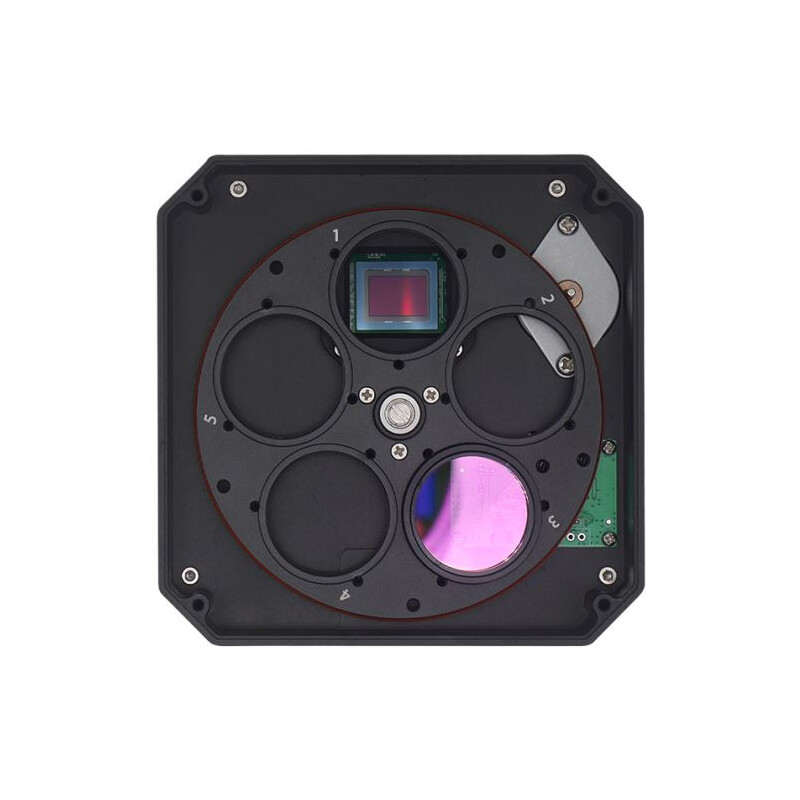

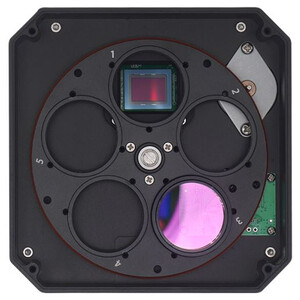

Internal EFW: The internal 5-position electronic filter wheel (EFW) can accept both 1.25” and 31mm filters. The EFW is driven by a whisper quiet high grade stepper motor. Important Note: The thickness of the 1.25” filter cannot exceed 7mm (without threads), and the thread must be shorter than 2.5mm to avoid the filter wheel striking the camera housing.

The body of the EFW is CNC milled from an aircraft grade aluminum block finished in an attractive and hardwearing anodized finish. The inner surface of the EFA has been especially treated to prevent internal light reflections.

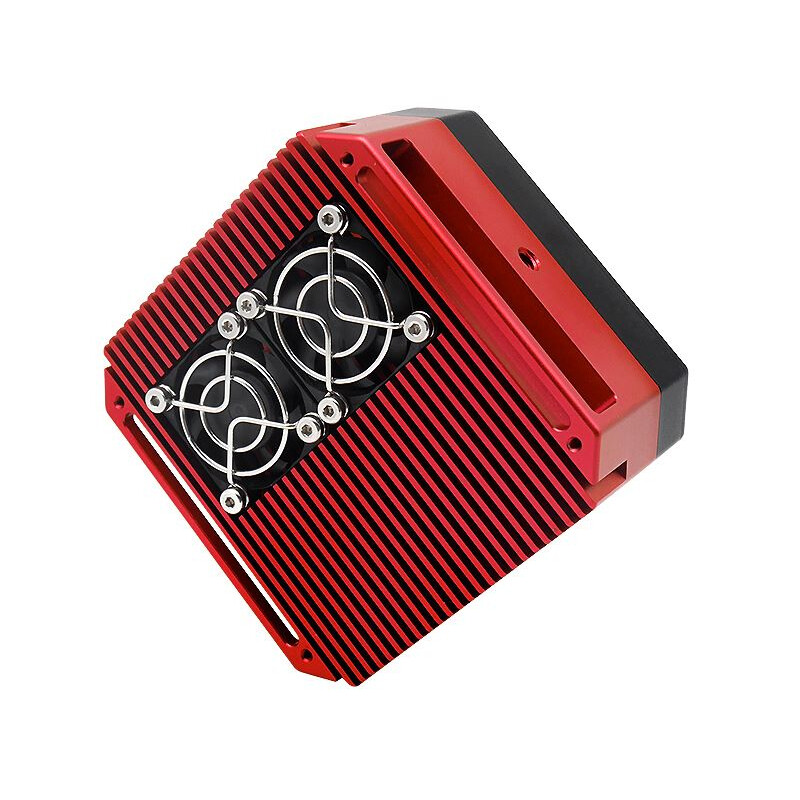

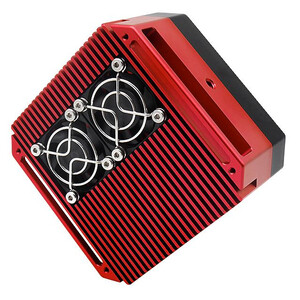

The camera body has 24 heat radiating grooves fitted with dual maglev fans to ensure the temperature difference remains between 40-45℃ below ambient temperature.

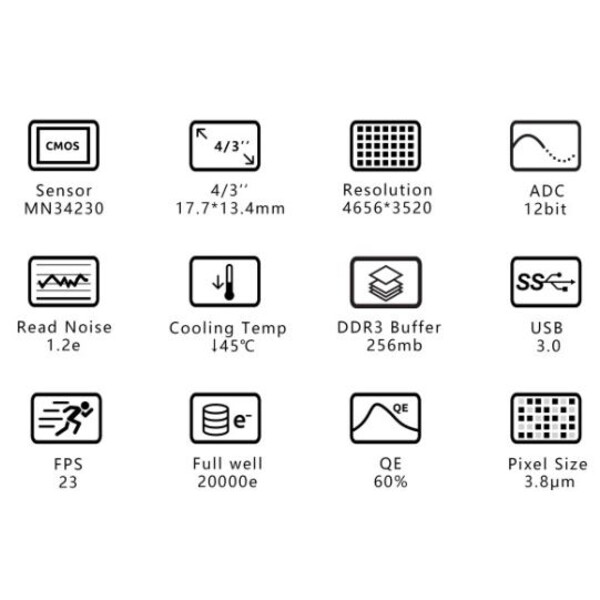

Specificaties

Capaciteit


Sensor type
CMOS sensor (Panasonic MN34230)
Megapixel
16
Resolutie foto
4656 x 3520
Pixel size
3,8
Interfaces
USB 3.0 & USB 2.0
Bit depth (Bit)
12
Actieve koeling
ja
Telescoop aansluiting
1,25" & T2
Kleurencamera
nee
Operating temperature
(-5) - (+45)
Max. Belichtingstijd (min)
30
Min. belichtingstijd
32 µs
Beelden per seconde
23

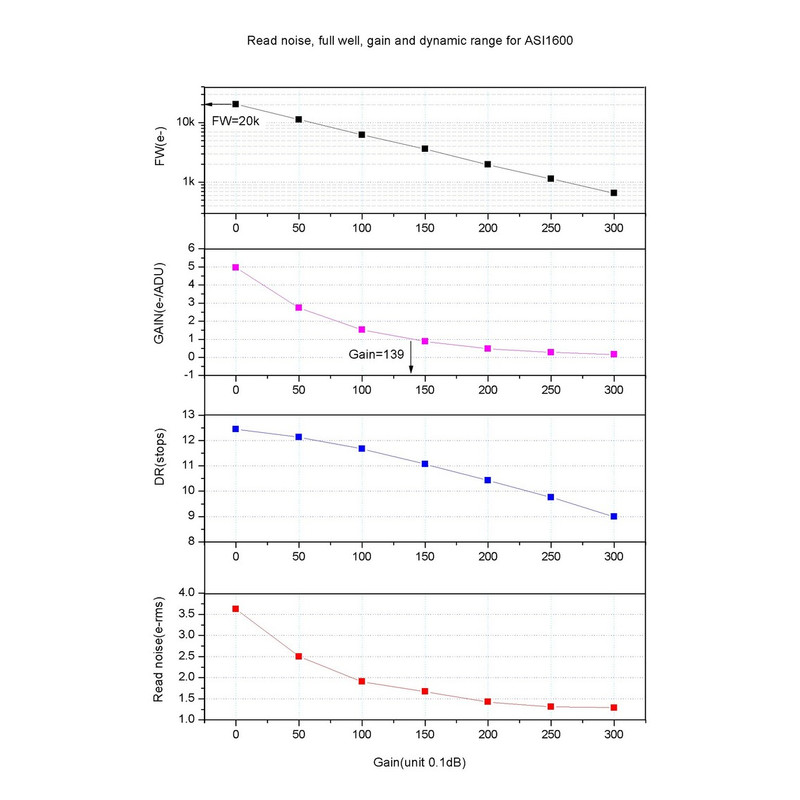

Full Well Capacity
20.000
Flange focal distance (mm)
26,5
Leesruis
1,2
Lengte van de kabel (m)
2
Ondersteunde besturingssystemen
Windows, Mac, Linux
Quantum efficiency
60%
Sensor size (mm)
17,7 x 13,4
Max. koeling onder omgevingstemperatuur
45
Stroomsterkte (A)
2
Ingangsspanning
12
Chip - Diagonaal (mm)
22,2
Buffer (Megabyte)
256
Intern geheugen
DDR3 RAM

Bijzonderheden


Infrarood filters
nee (Clear glass filter)

Uitrusting


Filterwiel
ja

Algemeen


Serie
ASI 1600
Uitwendige afmetingen LxBxH (mm)
110 x 110 x 60

Toepassing


AllSky, Meteore
nee
Autoguider
nee
Maan & Planeten
ja
Nevels & sterrenstelsels
ja

Aanbevolen accessoires

Filters (2)
Blocking filters

Omegon Blocking filters 1.25'' UV/IR cut-off filter

$ 79,00*
Spectroscopie & fotometer (1)
Spectroscoop

Paton Hawksley Spectroscoop Star Analyser 100

$ 201,00*

*Alle prijzen zijn inclusief BTW + verzendkosten.

ZWO Camera ASI 1600 GT Mono

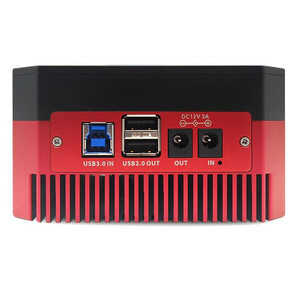

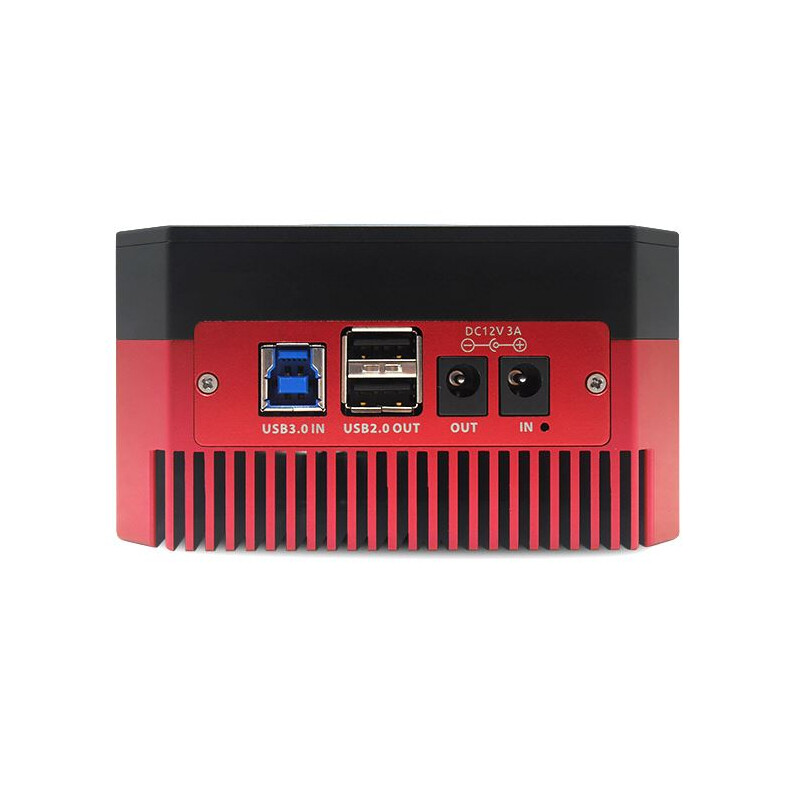

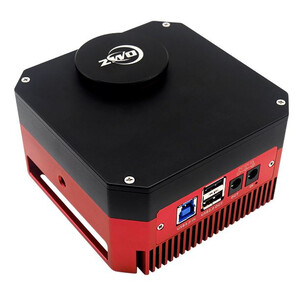

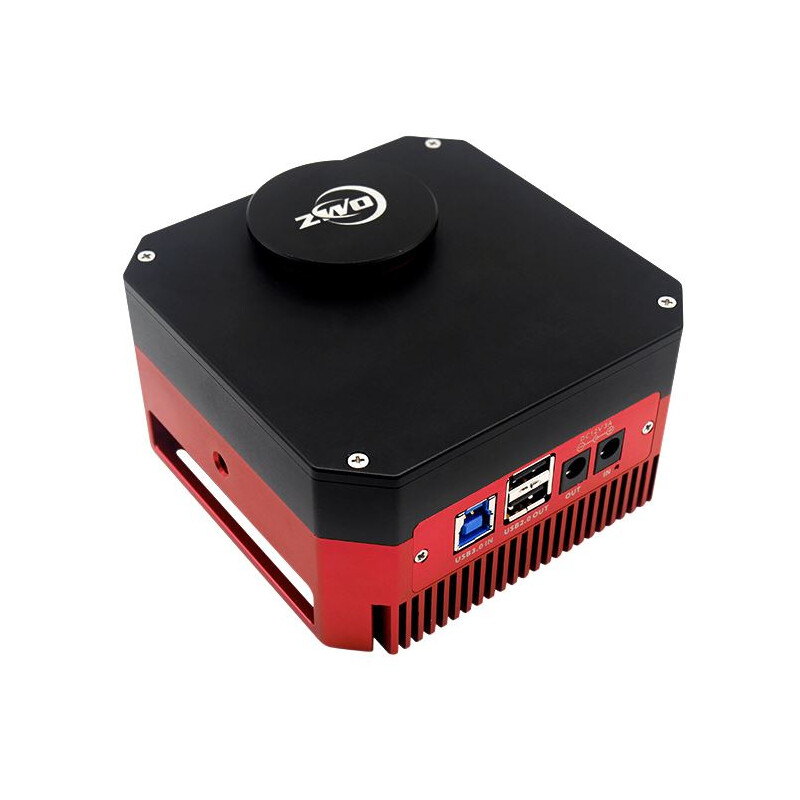

Aansluitingen
ZWO Camera ASI 1600 GT Mono

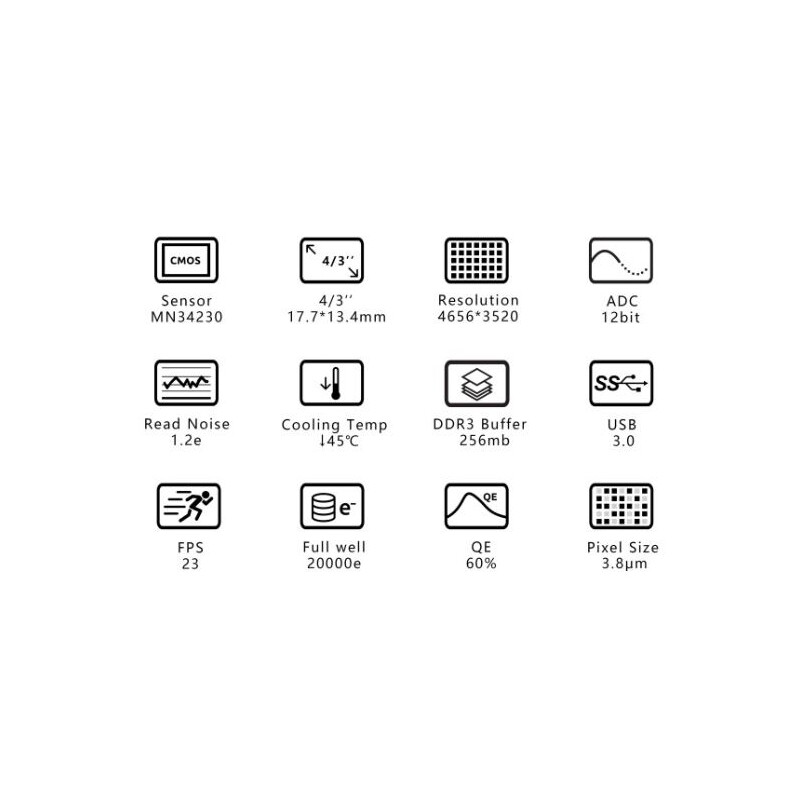

Overzicht
ZWO Camera ASI 1600 GT Mono

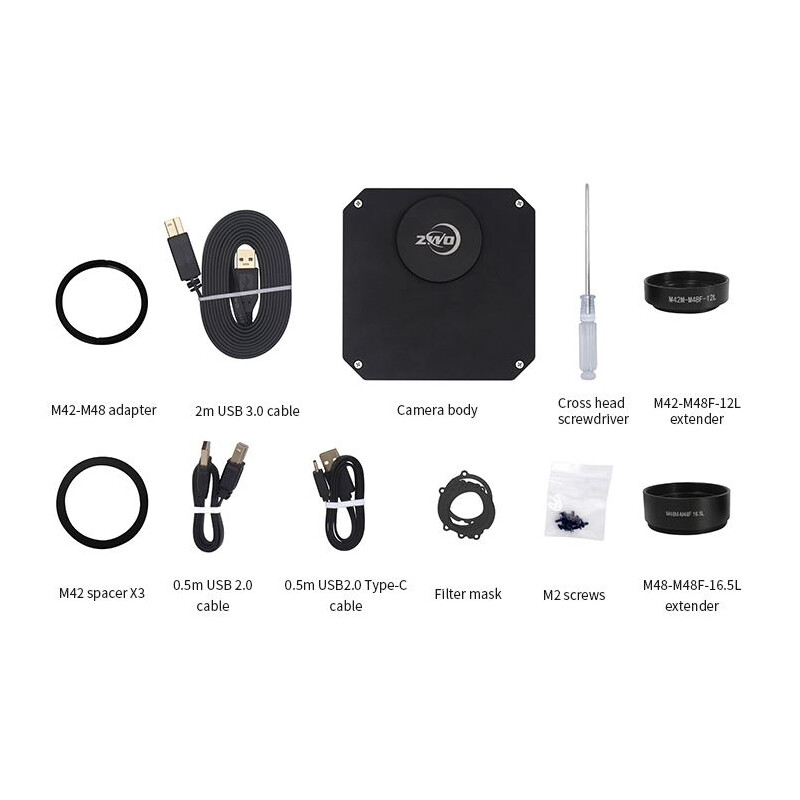

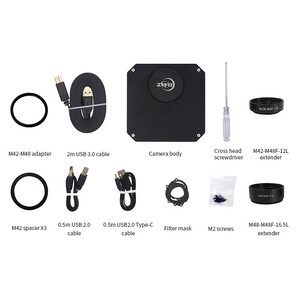

Inbegrepen in de levering
ZWO Camera ASI 1600 GT Mono

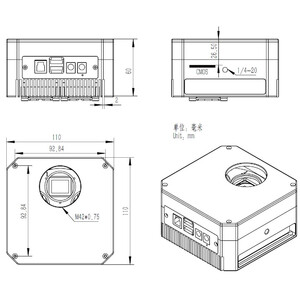

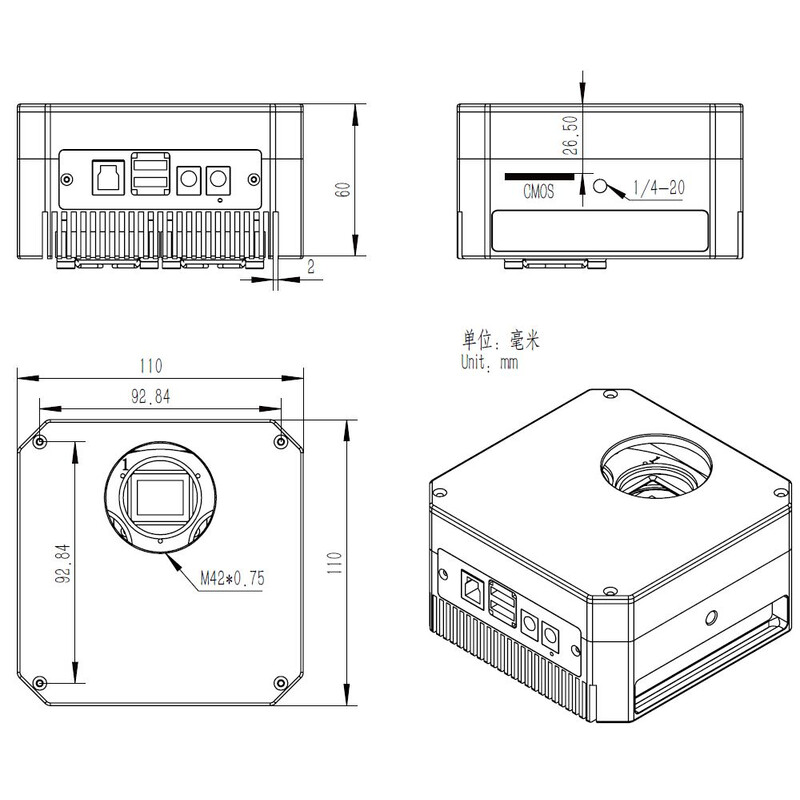

Afmetingen
